COMBINATION METER (GT750B)

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

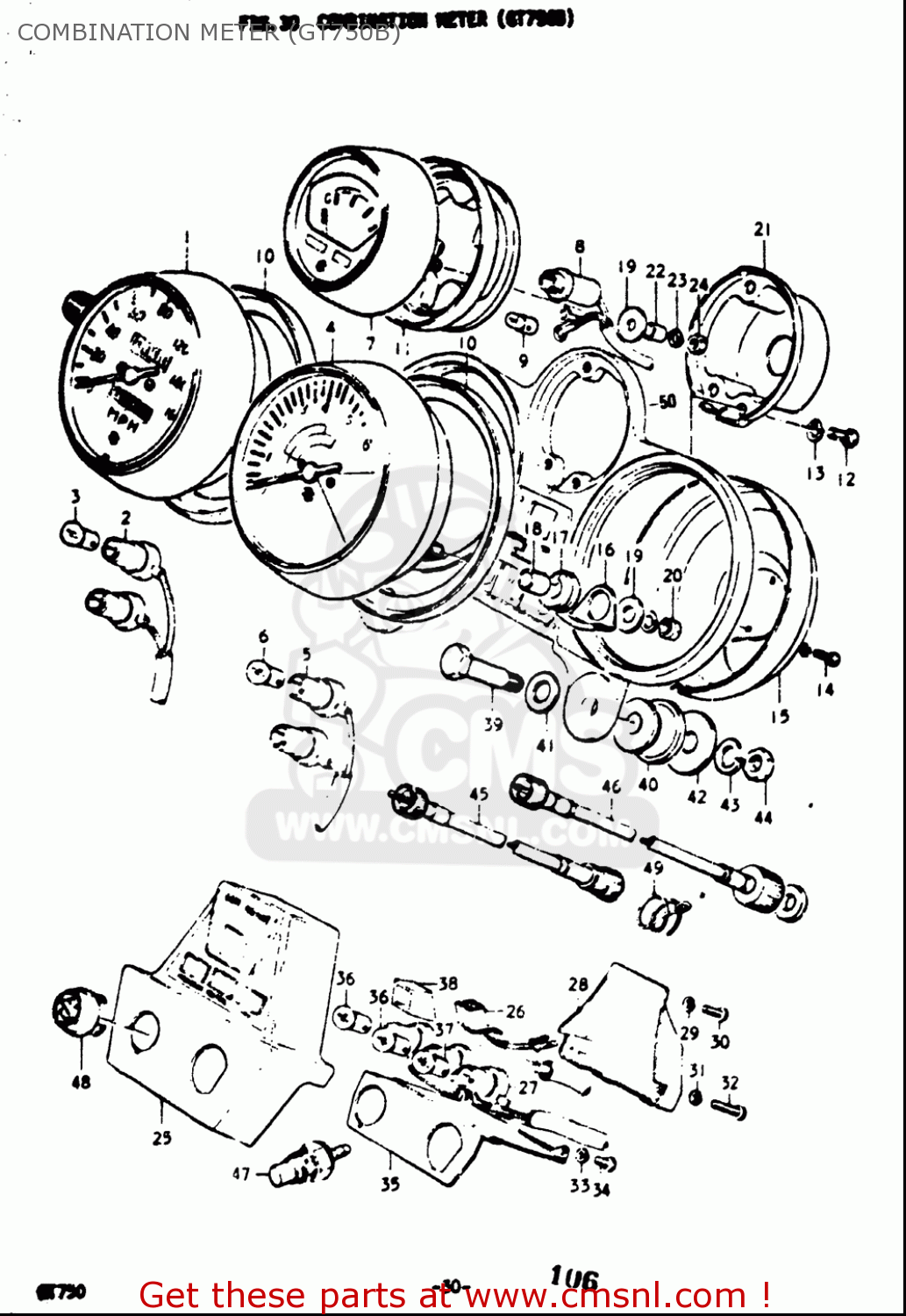

Combination meter (gt750b) diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

COMBINATION METER (GT750B) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
COMBINATION METER (GT750B) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
COMBINATION METER (GT750B) GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
0947112001
ref: 3
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
6
0947112001
ref: 6
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
7
3440031212
ref: 7
THERMOMETER ASSEMBLY
€ 132.50
9
0947112023
ref: 9
BULB(12V2W,STANLEY,A1272J)
0947112023
€ 8.50
10
3418131000
ref: 10
CUSHION,SPEEDOMETER
3418131000
€ 5.50
13
0832101057
ref: 13
WASHER,LOCK
0832101057
€ 2.00
14
0211203107
ref: 14
SCREW
0211203107
€ 1.50
15
3496031012
ref: 15
PLATE,UNDER
3496031012
€ 39.00
18
3497231012
ref: 18
SPACER,METER
3497231012
€ 2.50
19
0916005043
ref: 19
WASHER(5.5X16X1.2)
0916005043
€ 2.50
20
0831000057
ref: 20
NUT
0831000057
€ 2.50
23
0832101043
ref: 23
WASHER,LOCK
0832101043
€ 2.00
24
0831000047
ref: 24
NUT
0831000047
€ 2.00
25
3498031212
ref: 25
CASE,PILOT BULB
3498031212
€ 42.00
29
0832101043
ref: 29
WASHER,LOCK
0832101043
€ 2.00
30
0211204123
ref: 30
SCREW
0211204123
€ 1.50
31
0832101043
ref: 31
WASHER,LOCK
0832101043
€ 2.00
32
0211204203
ref: 32
SCREW
0211204203
€ 1.00
33
0832101043
ref: 33
WASHER,LOCK
0832101043
€ 2.00
34
0211204063
ref: 34
SCREW 4X6
0211204063
€ 2.00
35
3498231920
ref: 35
BRACKET (BB)
3498231920
€ 41.50
36
0947112001
ref: 36
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
37
0947112004
ref: 37
BULB(12V1.7W,A71A)
0947112004
€ 2.00
39
0911108028
ref: 39
BOLT(8X39.2)
0911108028
€ 4.50
40
3495631001
ref: 40
CUSHION,METER BRACKET
3495631001
€ 4.50
41
0832201107
ref: 41
WASHER
0832201107
€ 2.50
42
0916008135
ref: 42
WASHER(8.5X28X1.6)
0916008135
€ 2.00
43
0832101087
ref: 43
WASHER,LOCK
0832101087
€ 2.00
44
0831000087
ref: 44
NUT
0831000087
€ 2.00
45
3491018990
ref: 45
CABLE ASSY,SPEEDOMETER
3491018990
€ 29.00
46
3494018131
ref: 46
CABLE ASSY,TACHOMETER
3494018131
€ 52.00
47
3485065011
ref: 47
GAUGE ASSY,WATER TEMP
3485065011
€ 73.00
48
3499531600
ref: 48
CAP,SPEED WARNER LAMP HOLE
3499531600
€ 9.50
