WIRING HARNESS

GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

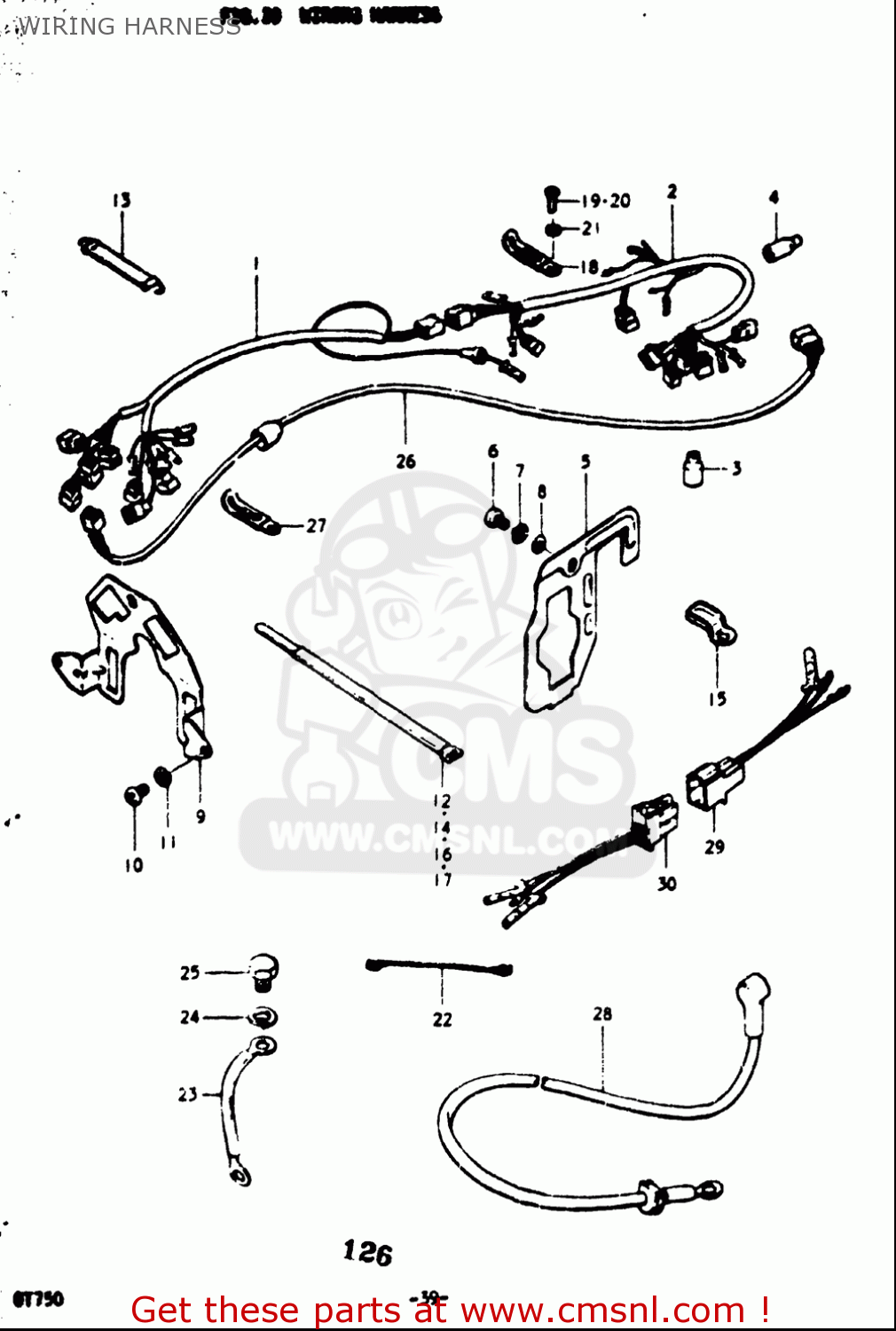

Wiring harness diagram GT750 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

2-1

3662031004
ref: 2-1

HARNESS,WIRING NO.2

€ 94.50

2-4

3662031004
ref: 2-4

HARNESS,WIRING NO.2

€ 94.50

3661830000
ref: 4

BOOT,WIRING HARNESS

€ 8.50

0211204087
ref: 6

SCREW

€ 1.50

0832101043
ref: 7

WASHER,LOCK

€ 2.00

0832201047
ref: 8

WASHER

€ 2.00

0211206107
ref: 10

SCREW

€ 1.50

0832101067
ref: 11

WASHER,LOCK

€ 2.50

0940718301
ref: 12

CLAMP

€ 6.00

0940714301
ref: 14

CLAMP

€ 6.00

0940306301
ref: 15

CLAMP

€ 2.00

0940714301
ref: 16

CLAMP

€ 6.00

0940714301
ref: 17

CLAMP

€ 6.00

18-1

0940406434
ref: 18-1

CLAMP(L:80 T:1.0)

€ 3.00

18-2

0940406432
ref: 18-2

CLAMP(L:65)

€ 2.50

0211206107
ref: 19

SCREW

€ 1.50

0211206127
ref: 20

SCREW

€ 2.00

0832101067
ref: 21

WASHER,LOCK

€ 2.50

3685102331
ref: 22

LEAD WIRE,EARTH

€ 6.00

0832101087
ref: 24

WASHER,LOCK

€ 2.00

0150008127
ref: 25

BOLT

€ 2.50

0940408420
ref: 27

CLAMP(L:120 T:1.0)

€ 3.50
