AUTO CRUISER (GV1400GDG/GCG/GDH/GCH/GDJ)

GV1400GC CAVALCADE 1986 (G) USA (E03)

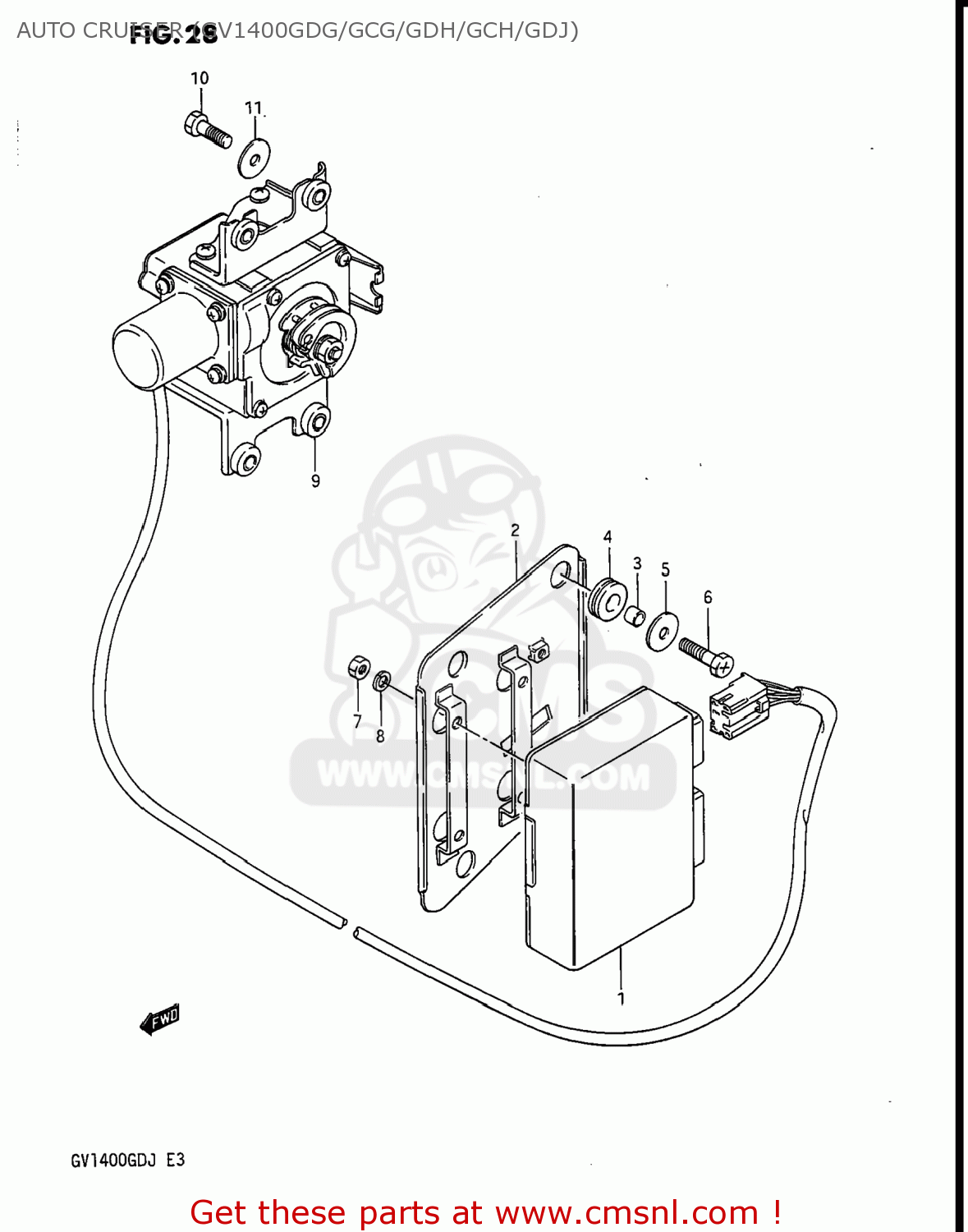

Auto cruiser (gv1400gdg/gcg/gdh/gch/gdj) diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

3398024A00
ref: 1

CONTROLLER ASSEMBLY,AUTO CRUISE

€ 377.00

3398524A00
ref: 2

BRACKET

€ 0.00

0918007005
ref: 3
09180-06259

SPACER (7X9X7)

€ 2.50

0932008007
ref: 4
09320-08021

CUSHION

€ 4.00

0916006007
ref: 5
09160-06084

WASHER

€ 2.00

0211206167
ref: 6

SCREW

€ 2.50

0831011056
ref: 7
08310-0005A

NUT

€ 2.50

0832121056
ref: 8
08321-0105A

LOCK WASHER

€ 3.00

3399024A00
ref: 9

ACTUATOR ASSEMBLY,AUTO CRUISE

€ 897.00

0211206208
ref: 10
02112-06207

SCREW

€ 2.00

0916006007
ref: 11
09160-06084

WASHER

€ 2.00
