FRAME

GV1400GC CAVALCADE 1986 (G) USA (E03)

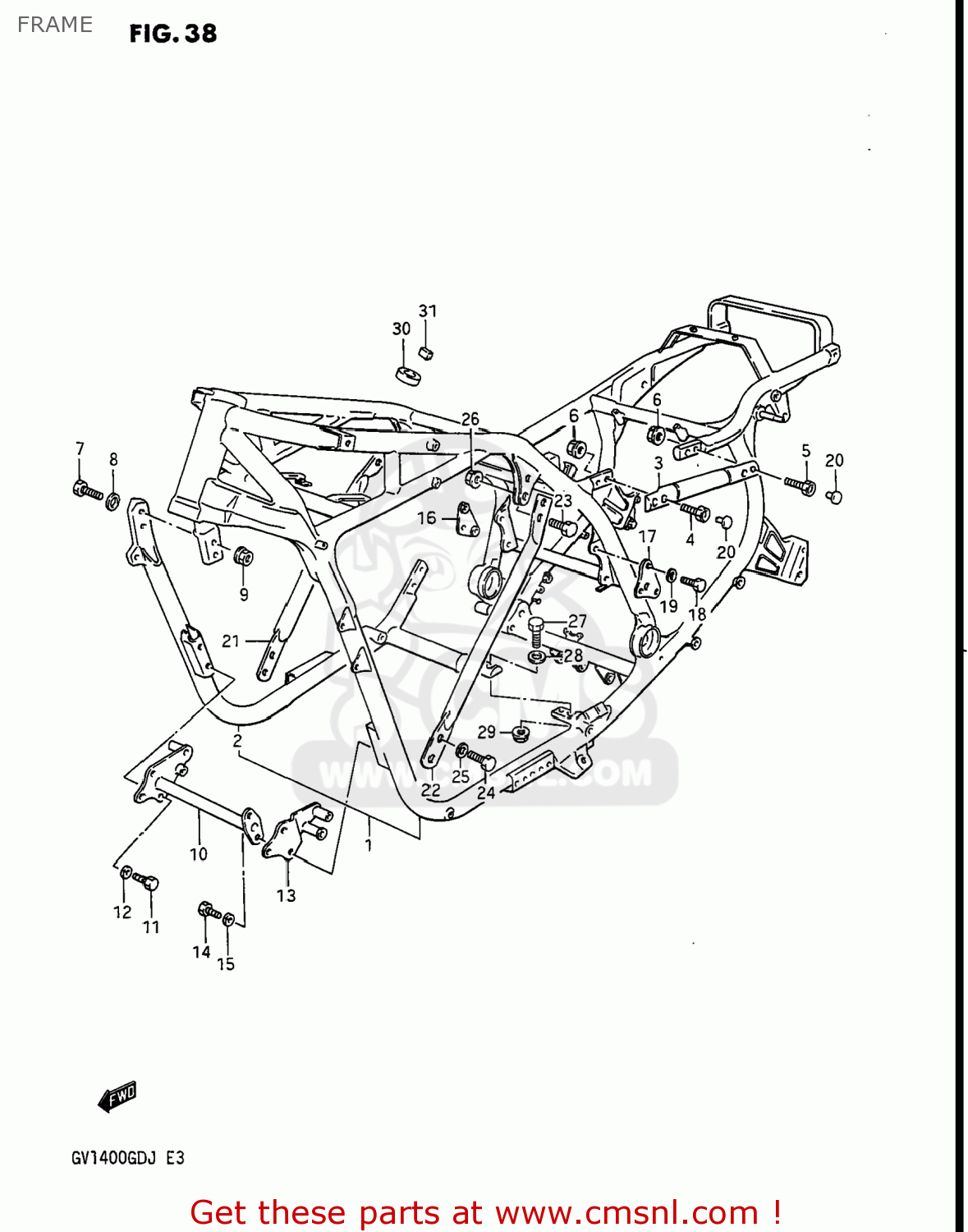

Frame diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

FRAME GV1400GC CAVALCADE 1986 (G) USA (E03)

FRAME GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110024830019
ref: 1-1
41100-24833-019

FRAME

€ 1,979.50

1-2

4110024831019
ref: 1-2
41100-24833-019

FRAME

€ 1,979.50

1-3

4110024833019
ref: 1-3

FRAME

€ 1,979.50

2

4114024A01019
ref: 2

TUBE,FRAME

€ 228.00

3

4164024A00019
ref: 3

TUBE, FRAME UPPER (BLACK)

€ 66.50

4

0711010255
ref: 4
07130-1025B

BOLT 10X25

€ 3.50

5

0711010305
ref: 5
07130-1030B

BOLT

€ 3.50

6

0831931105
ref: 6
08319-3110A

NUT 10MM

€ 3.00

7

0910610033
ref: 7
09106-10033-XC0

BOLT 10X38

€ 2.50

8

0916410005
ref: 8
09164-10010

WASHER

€ 6.50

9

0831931105
ref: 9
08319-3110A

NUT 10MM

€ 3.00

10

4191024A00019
ref: 10

PLATE COMP,ENGINE MOUNTING

€ 36.00

11

0110708165
ref: 11
01500-0816B

BOLT

€ 2.00

12

0832121084
ref: 12
08321-0108A

WASHER,LOCK,8.

€ 2.50

13

4192024A00019
ref: 13

PLATE,ENGINE MOUNTING

€ 24.00

14

0110708205
ref: 14
01500-0820A

BOLT

€ 2.00

15

0832121084
ref: 15
08321-0108A

WASHER,LOCK,8.

€ 2.50

16

4195024A00019
ref: 16

PLATE,ENGINE MOUNTING

€ 0.00

17

4195124A00019
ref: 17

PLATE,ENGINE MOUNTING

€ 0.00

18

0110708205
ref: 18
01500-0820A

BOLT

€ 2.00

19

0832121084
ref: 19
08321-0108A

WASHER,LOCK,8.

€ 2.50

20

4357534500
ref: 20

CAP

€ 1.50

21-1

4163024A00019
ref: 21-1
41630-24A01-019

ROD,GRIP,LEFT

€ 0.00

21-2

4163024A01019
ref: 21-2

ROD,GRIP,LEFT

€ 0.00

22-1

4162024A00019
ref: 22-1
41620-24A01-019

GRIP,FRAME HANDLE,LEFT

€ 0.00

22-2

4162024A01019
ref: 22-2

GRIP,FRAME HANDLE,LEFT

€ 0.00

23

0110710256
ref: 23
01500-10253

BOLT 10X25 UPPER

€ 2.00

24

0910410033
ref: 24

BOLT

€ 0.00

25

0832121104
ref: 25
08321-0110A

WASHER,LOCK

€ 3.00

26

0831931105
ref: 26
08319-3110A

NUT 10MM

€ 3.00

27

0910610019
ref: 27

BOLT(10X33)

€ 4.00

28

0916410005
ref: 28
09164-10010

WASHER

€ 6.50

29

0831931105
ref: 29
08319-3110A

NUT 10MM

€ 3.00

30

4716124A00
ref: 30

CUSHION,FRAME COVER

€ 0.00

31

4716224A00
ref: 31
51827-01A00

CUSHION,FRAME COVER

€ 2.50
