CRANKSHAFT

GV1400GC CAVALCADE 1986 (G) USA (E03)

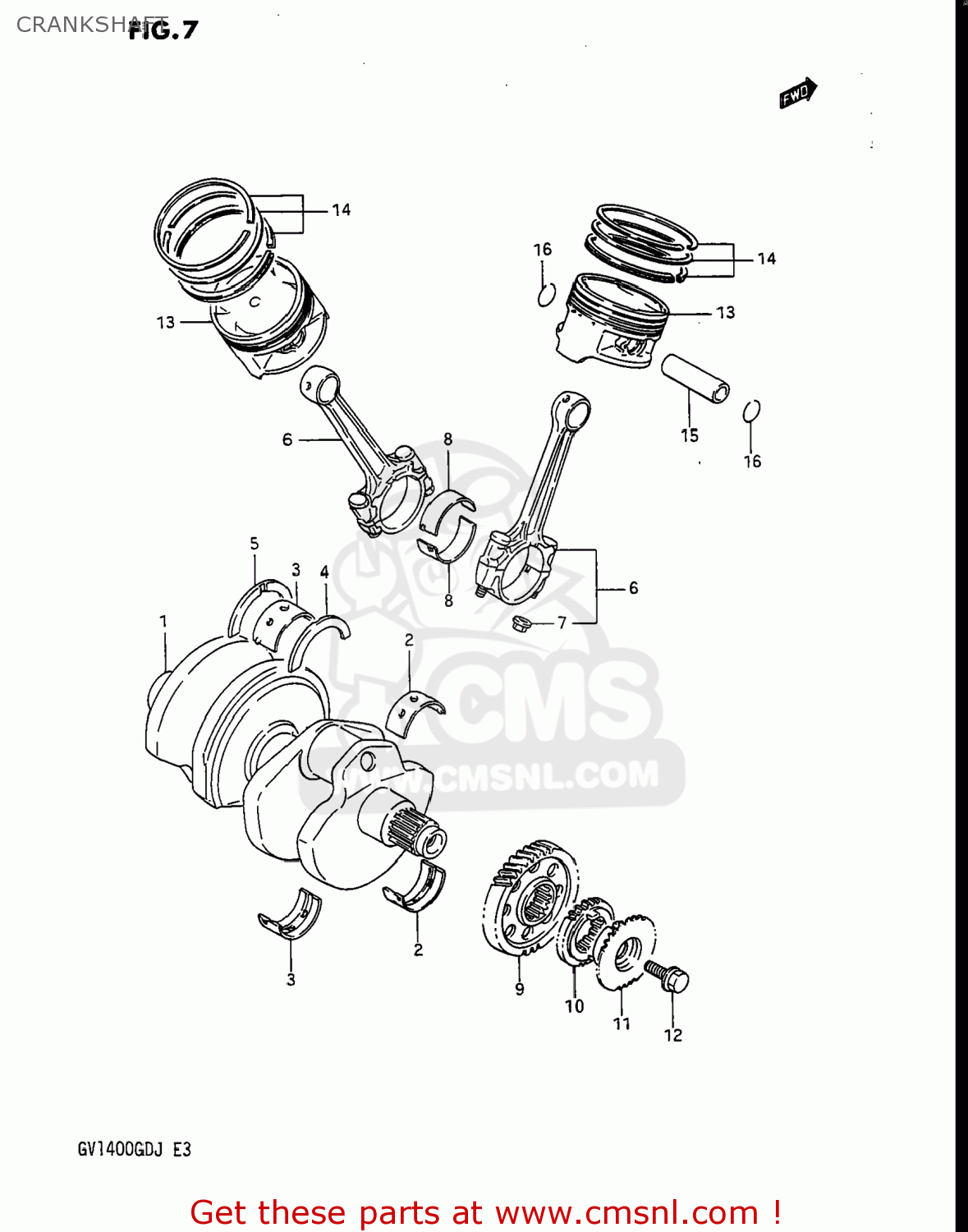

Crankshaft diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

CRANKSHAFT GV1400GC CAVALCADE 1986 (G) USA (E03)

CRANKSHAFT GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1222024A01
ref: 1
12000-24810

CRANKSHAFT

€ 1,074.50

2-1

1222905A000A0
ref: 2-1

METAL CRANKSHAFT

€ 7.00

2-2

1222905A000B0
ref: 2-2

METAL CRANKSHAFT

€ 9.00

2-3

1222905A000C0
ref: 2-3

METAL CRANKSHAFT

€ 7.50

2-4

1222905A000D0
ref: 2-4

METAL CRANKSHAFT

€ 7.00

3-1

1222905A100A0
ref: 3-1

METAL CRANKSHAFT (GREEN)

€ 9.00

3-2

1222905A100B0
ref: 3-2

METAL CRANKSHAFT (BLACK)

€ 6.50

3-3

1222905A100C0
ref: 3-3

METAL CRANKSHAFT (BROWN)

€ 9.00

3-4

1222905A100D0
ref: 3-4

METAL CRANKSHAFT

€ 7.00

4

1222805A000D0
ref: 4

PLATE,CRANK THRUST

€ 6.50

5-1

1222805A000A0
ref: 5-1

PLATE,CRANK THRUST

€ 6.50

5-2

1222805A000B0
ref: 5-2

PLATE,CRANK THRUST

€ 6.50

5-3

1222805A000C0
ref: 5-3

PLATE,CRANK THRUST

€ 6.50

5-4

1222805A000D0
ref: 5-4

PLATE,CRANK THRUST

€ 6.50

5-5

1222805A000E0
ref: 5-5

PLATE,CRANK THRUST

€ 6.50

5-6

1222805A000F0
ref: 5-6

PLATE,CRANK THRUST

€ 6.50

6

1216024A02
ref: 6

CONNECTING ROD ASSEMBLY

€ 99.50

7

0915909001
ref: 7

NUT

€ 4.50

8-1

1216424A000A0
ref: 8-1
12164-30E00-0A0

BEARING,CRANK PIN

€ 11.00

8-2

1216424A000B0
ref: 8-2
12164-30E00-0B0

BEARING,CRANK PIN

€ 13.00

8-3

1216424A000C0
ref: 8-3
12164-30E00-0C0

BEARING,CRANK PIN

€ 7.00

8-4

1216424A000D0
ref: 8-4
12164-30E00-0D0

BEARING,CRANK PIN

€ 7.00

9

2111105A02
ref: 9

GEAR,PRIMARY DRIVE

€ 80.50

10

1274405A00
ref: 10

SPROCKET,CHAIN DRIVE I

€ 48.50

11

1753124A00
ref: 11

SPROCKET,WATER PUMP DRIVE

€ 48.50

12

0910310112
ref: 12

BOLT(10X24)

€ 4.00

13-1

1211124A05
ref: 13-1

PISTON (81.00MM)

€ 68.50

13-2

1211124A05050
ref: 13-2
12103-24810-050

PISTON

€ 95.50

13-3

1211124A05100
ref: 13-3

PISTON

€ 86.50

14-1

1214024A00
ref: 14-1

RING SET,PISTON

€ 44.50

14-2

1214024A00050
ref: 14-2

RING SET,PISTON (OS:0.5)

€ 39.50

14-3

1214024A00100
ref: 14-3

RING SET,PISTON (OS:1.0)

€ 39.50

15

1215124A00
ref: 15

PIN,PISTON

€ 18.50

16

0938120004
ref: 16

CIRCLIP,PISTON PIN

€ 2.00
