FRAME COVER (MODEL H/J)

GV1400GC CAVALCADE 1986 (G) USA (E03)

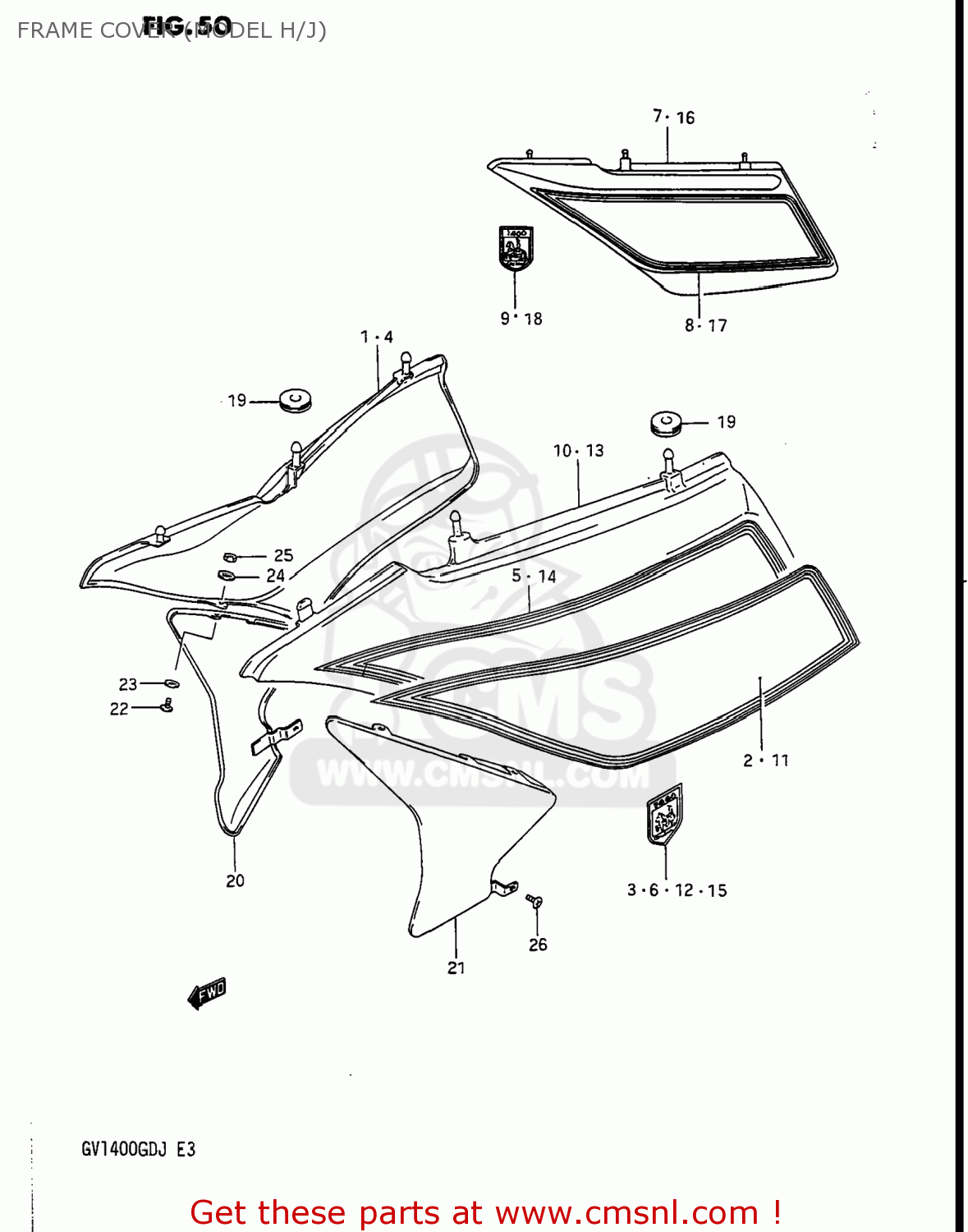

Frame cover (model h/j) diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

FRAME COVER (MODEL H/J) GV1400GC CAVALCADE 1986 (G) USA (E03)

FRAME COVER (MODEL H/J) GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711024A3020H
ref: 1-1

COVER,FRAME,RIGHT

€ 209.00

1-2

4711024A3034B
ref: 1-2

COVER,FRAME,RIGHT

€ 205.50

2-1

6813024A309EC
ref: 2-1

TAPE SET,FRAME COVER STRIPE

€ 0.00

2-2

6813024A309ED
ref: 2-2

TAPE SET,FRAME COVER

€ 0.00

3

6813124A01
ref: 3

EMBLEM,FRAME COVER

€ 19.00

4-1

4711024A409EE
ref: 4-1

COVER,FRAME,RIGHT

€ 205.50

4-2

4711024A409EF
ref: 4-2

COVER,FRAME,RIGHT

€ 0.00

5-1

6813024A409EA
ref: 5-1

TAPE SET,FRAME COVER STRIPE

€ 0.00

5-2

6813024A409EB
ref: 5-2

TAPE SET,FRAME COVER

€ 0.00

6

6813124A01
ref: 6

EMBLEM,FRAME COVER

€ 19.00

7-1

4711024A5020H
ref: 7-1
47111-24A00

COVER,FRAME,RIGHT

€ 183.50

7-2

4711024A5038G
ref: 7-2
47111-24A00

COVER,FRAME,RIGHT

€ 183.50

8-1

6813024A509VJ
ref: 8-1

TAPE SET,FRAME COVER

€ 0.00

8-2

6813024A509VK
ref: 8-2

TAPE SET,FRAME COVER

€ 0.00

9

6813124A01
ref: 9

EMBLEM,FRAME COVER

€ 19.00

10-1

4721024A3020H
ref: 10-1

COVER,FRAME,LEFT

€ 205.50

10-2

4721024A3034B
ref: 10-2

COVER,FRAME,LEFT

€ 222.50

11-1

6814024A309EC
ref: 11-1

TAPE SET,FRAME COVER STRIPE

€ 0.00

11-2

6814024A309ED
ref: 11-2

TAPE SET,FRAME COVER

€ 0.00

12

6813124A01
ref: 12

EMBLEM,FRAME COVER

€ 19.00

13-1

4721024A409EE
ref: 13-1

COVER,FRAME,LEFT

€ 205.50

13-2

4721024A409EF
ref: 13-2

COVER,FRAME,LEFT

€ 0.00

14-1

6814024A409EA
ref: 14-1

TAPE SET,FRAME COVER STRIPE

€ 0.00

14-2

6814024A409EB
ref: 14-2

TAPE SET,FRAME COVER

€ 0.00

15

6813124A01
ref: 15

EMBLEM,FRAME COVER

€ 19.00

16-1

4721024A5020H
ref: 16-1

COVER,FRAME,LEFT

€ 113.00

16-2

4721024A5038G
ref: 16-2

COVER,FRAME,LEFT

€ 113.00

17-1

6814024A509VJ
ref: 17-1

TAPE SET,FRAME COVER

€ 0.00

17-2

6814024A509VK
ref: 17-2

TAPE SET,FRAME COVER

€ 0.00

18

6813124A01
ref: 18

EMBLEM,FRAME COVER

€ 19.00

19

0932008018
ref: 19

CUSHION

€ 4.00

20

4712024A01
ref: 20

COVER,UNDER,RIGHT

€ 100.00

21

4722024A01
ref: 21

COVER,UNDER,LEFT

€ 92.50

22

0211206126
ref: 22
02112-0612A

SCREW

€ 1.50

23

0832221066
ref: 23
08322-0106B

WASHER, LOWER

€ 2.00

24

0916006003
ref: 24
09160-06129

WASHER (6.7X16X1.8)

€ 2.00

25

0831921068
ref: 25
08319-2106A

NUT 6MM

€ 2.00

26

0214206108
ref: 26
02142-06107

SCREW

€ 2.00
