OIL PUMP

GV1400GC CAVALCADE 1986 (G) USA (E03)

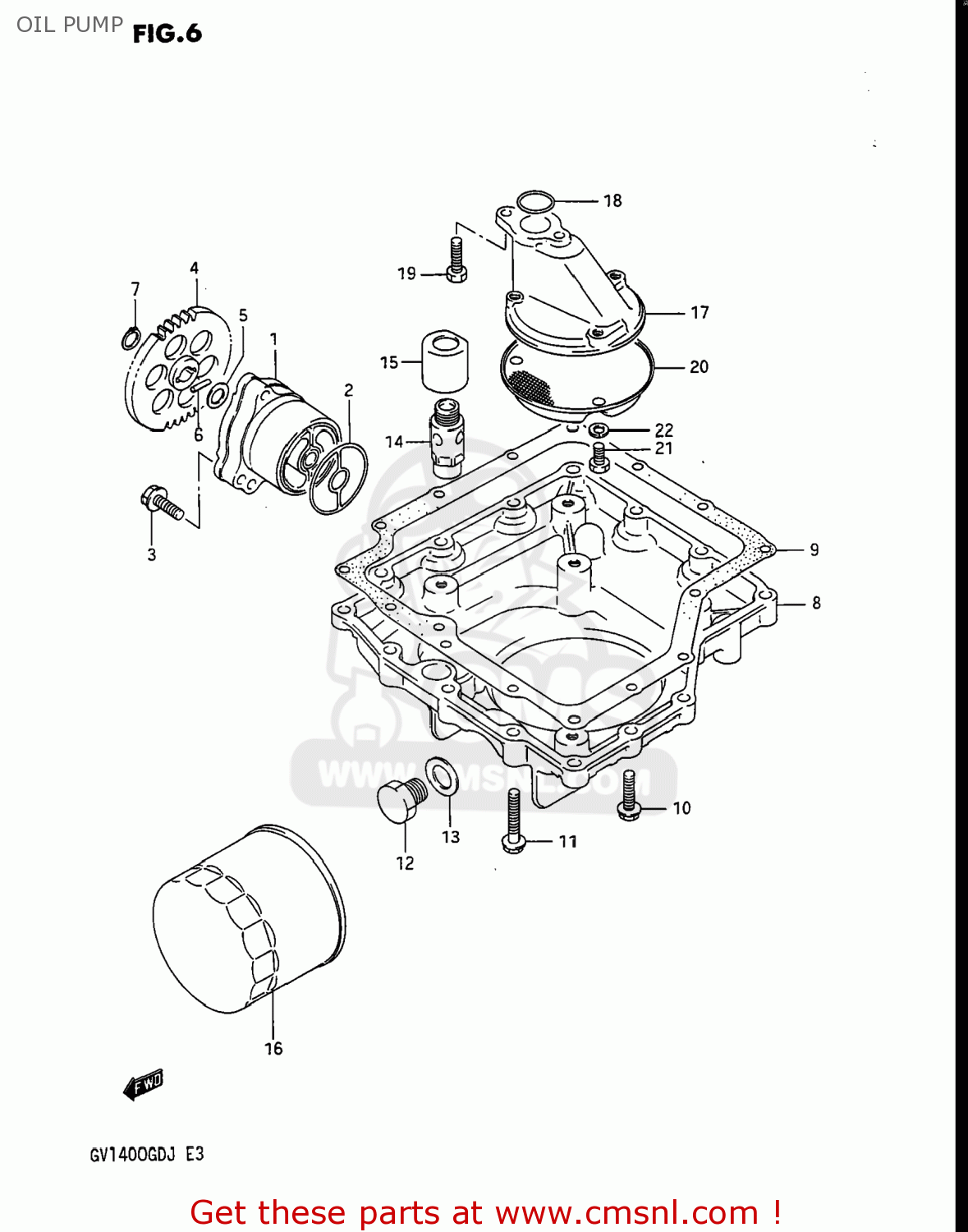

Oil pump diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

OIL PUMP GV1400GC CAVALCADE 1986 (G) USA (E03)

OIL PUMP GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1640024A00
ref: 1

PUMP ASSEMBLY,ENGINE OIL

€ 151.50

2

1649131300
ref: 2

O RING,OIL PUMP

€ 12.50

3

0151706308
ref: 3
01550-06307

BOLT

€ 2.00

4

1633105A00
ref: 4
16331-05A01

GEAR,OIL PUMP DRIVEN

€ 38.00

5

0822110185
ref: 5

SHIM

€ 2.00

6

0926104009
ref: 6

PIN(4X15.8)

€ 1.50

7

0833131109
ref: 7

CIRCLIP

€ 2.00

8-1

1151124A00
ref: 8-1
11511-24A01

PAN,OIL

€ 91.50

8-2

1151124A10
ref: 8-2
11511-24A01

PAN,OIL

€ 91.50

9

1148905A00
ref: 9
11489-05A01

GASKET,OIL PAN (MCA)

€ 13.50

10

0151706258
ref: 10
01550-06257

BOLT

€ 2.50

11

0151706308
ref: 11
01550-06307

BOLT

€ 2.00

12

0924714001
ref: 12
09247-14002

PLUG

€ 5.00

13

0916814004
ref: 13

GASKET(14X19.2X2) (NAS)

€ 2.50

14

1644024A00
ref: 14
16440-24A01

VALVE ASSEMBLY,OIL RELIEF

€ 52.00

15

1644924A00
ref: 15

GUIDE, VALVE

€ 0.00

16-1

1651005A00
ref: 16-1

FILTER ASSY,ENGINE OIL

€ 8.50

16-2

1651006B00
ref: 16-2
16510-07J00

FILTER,OIL

€ 12.50

17

1652509301
ref: 17

PROTECTOR,OIL STRAINER

€ 16.00

18

0928018008
ref: 18
09280-18009

O RING(D:3.2,ID:17.8)

€ 8.00

19

0151706208
ref: 19
01550-06207

BOLT,REAR

€ 2.50

20

1652005A00
ref: 20

STRAINER,ENGINE OIL

€ 11.50

21

0110706127
ref: 21
01500-06127

BOLT

€ 2.00

22

0832121067
ref: 22
08321-01067

WASHER,LOCK

€ 2.50
