MUFFLER

GV1400GC CAVALCADE 1986 (G) USA (E03)

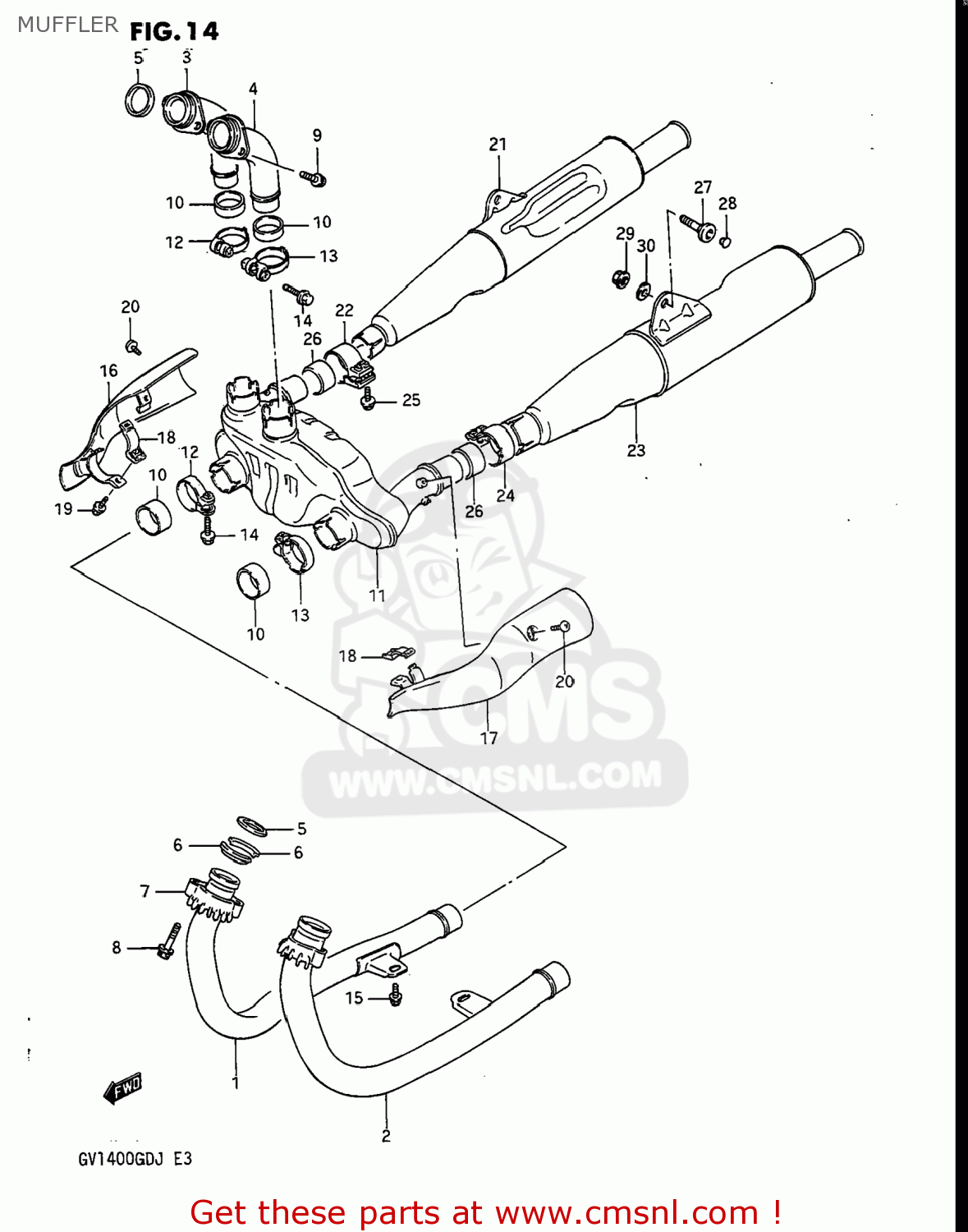

Muffler diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

MUFFLER GV1400GC CAVALCADE 1986 (G) USA (E03)

MUFFLER GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1415024A01
ref: 1

PIPE COMP,EXHAUST,FRONT

€ 139.00

2

1416024A01
ref: 2

PIPE,EXHAUST FR,L(#2)

€ 153.00

3

1417024A00
ref: 3

PIPE,EXHAUST RR,R(#3)

€ 112.00

4

1418024A01
ref: 4

PIPE,EXHAUST RR,L(#1)

€ 112.00

5

1418112010
ref: 5
14181-42A00

GASKET,EXHAUST PIPE (NAS)

€ 8.50

6

1415524A00
ref: 6

SPACER,EXHAUST PIPE

€ 14.00

7

1418249011
ref: 7

CLAMP(H:21)

€ 49.00

8

0712008458
ref: 8
07120-0845B

BOLT

€ 3.50

9

0712008308
ref: 9
07120-08307

BOLT, REAR

€ 3.50

10

1477105A11
ref: 10
14771-24B01

CONNECTOR,MUFFLER

€ 23.00

11

1421024A03H01
ref: 11
14200-24A00-H01

BODY,PRE MUFFLER

€ 416.50

12

1445905A00
ref: 12
14459-14A10

CLAMP,MUFFLER CONNECTOR

€ 14.50

13

1446905A00
ref: 13

CLAMP,MUFFLER CONNECTOR LH

€ 16.00

14

0151708405
ref: 14
01550-08407

BOLT 8X40

€ 3.50

15

0910308123
ref: 15

BOLT

€ 2.00

16

1478024A01
ref: 16

COVER,MUFFLER,R

€ 44.50

17

1479024A01
ref: 17

COVER,MUFFLER,L

€ 45.50

18

1478524A00
ref: 18

CLAMP,MUFFLER COVER

€ 36.50

19

0910306070
ref: 19
09103-06286

BOLT

€ 2.00

20

0912506071
ref: 20

SCREW(6X8)

€ 2.50

21

1431024A02H01
ref: 21

MUFFLER,RIGHT

€ 392.00

22

1445924A00
ref: 22

CLAMP,CONNECTOR MUFFLER

€ 14.00

23

1434024A02H01
ref: 23

MUFFLER,LEFT

€ 224.50

24

1446924A00
ref: 24

CLAMP,CONNECTOR MUFFLER,L

€ 14.00

25

0110708358
ref: 25
01500-0835B

BOLT

€ 3.50

26

1477124A00
ref: 26
14771-24A01

CONNECTOR,MUFFLER

€ 21.50

27

0910610010
ref: 27

BOLT(10X50)

€ 44.00

28

0925008014
ref: 28

CAP(OD:12)

€ 3.50

29

0915910014
ref: 29
09159-10046-XC0

NUT

€ 2.00

30

0916010069
ref: 30
09160-10005

WASHER (10X18X3.2)

€ 2.00
