FRONT BRAKE HOSE
GV1400GC CAVALCADE 1986 (G) USA (E03)

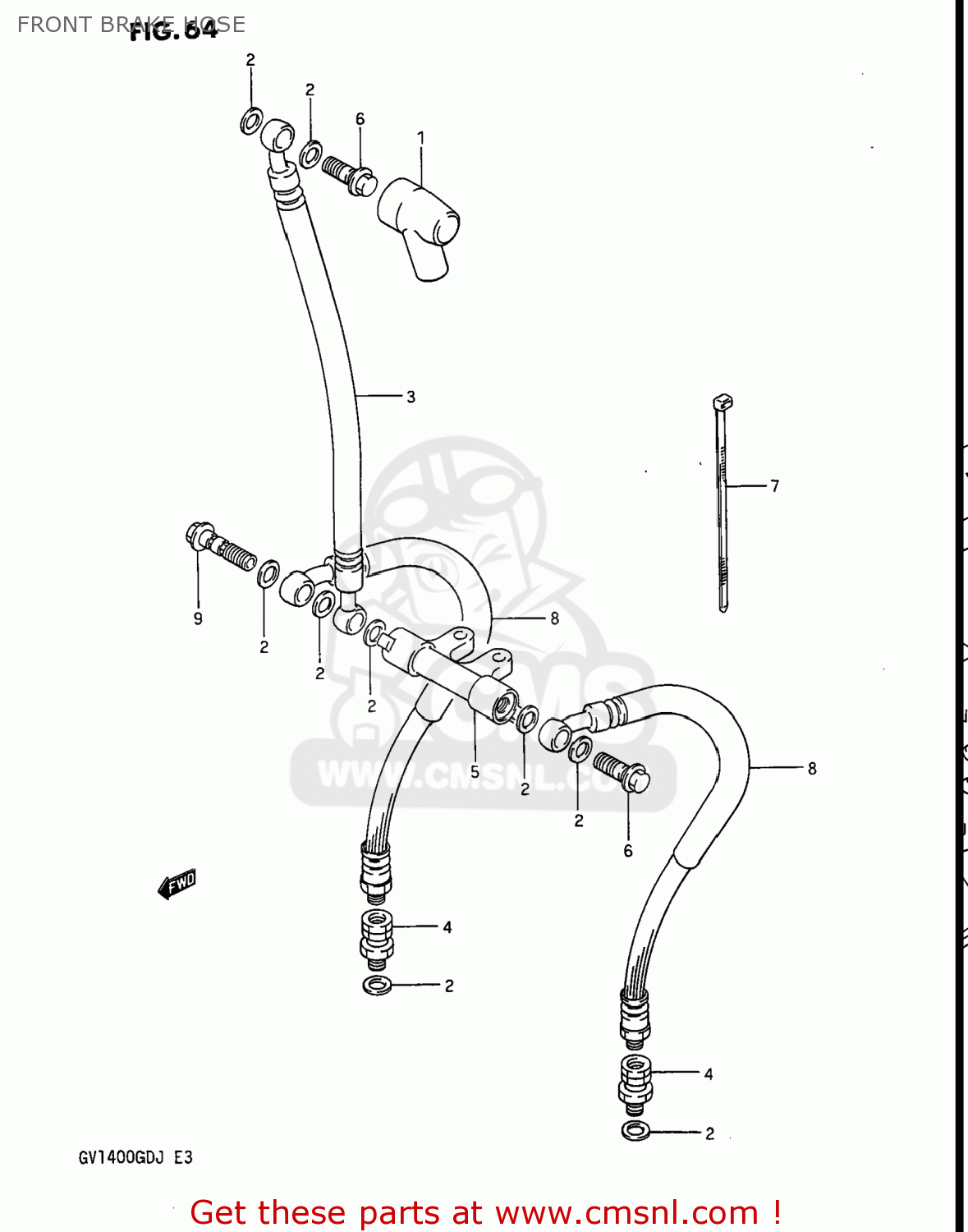

Front brake hose diagram GV1400GC CAVALCADE 1986 (G) USA (E03)
FRONT BRAKE HOSE GV1400GC CAVALCADE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5971118400
ref: 1
59711-49001
BOOT,MASTER CYLINDER
€ 8.50
2
0916110009
ref: 2
WASHER(10X15X1.5)
€ 2.00
3-1
5948024A00
ref: 3-1
HOSE COMP,FRONT BRAKE
€ 58.00
3-2
5948024A20
ref: 3-2
59480-24A21
HOSE,FRONT BRAKE
€ 53.50
4
5929043500
ref: 4
ADAPTER,BRAKE HOSE
€ 34.50
5
5949109300
ref: 5
JOINT,BRAKE HOSE
€ 22.00
6
0936010017
ref: 6
BOLT UNION
€ 6.50
7
0940725402
ref: 7
CLAMP(L:250)
€ 4.50
8
5924024A02
ref: 8
59240-24A03
HOSE,FRONT BRAKE
€ 47.50
9
0936010018
ref: 9
BOLT UNION
€ 7.00
