FRONT FOOTREST

GV1400GC CAVALCADE 1986 (G) USA (E03)

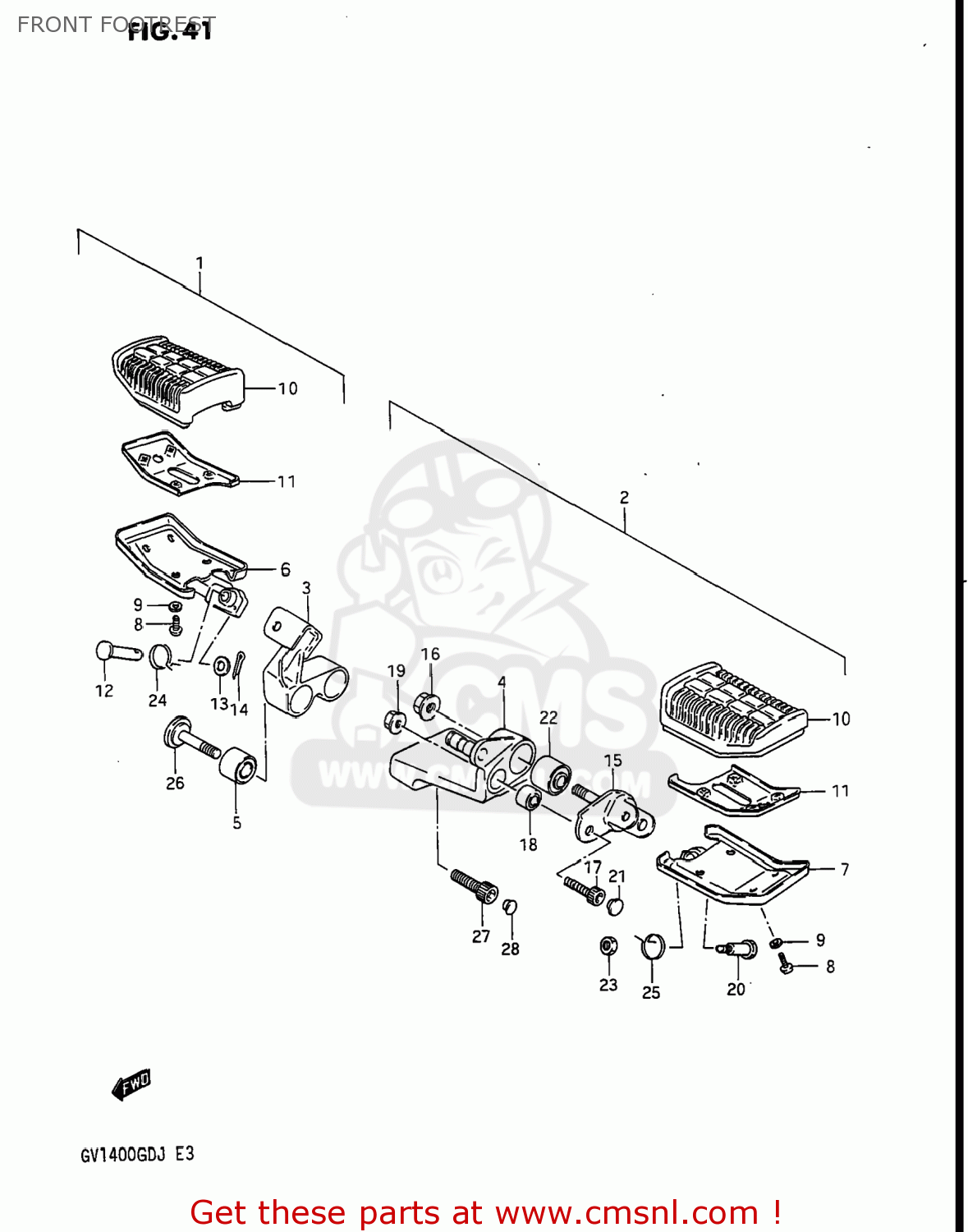

Front footrest diagram GV1400GC CAVALCADE 1986 (G) USA (E03)

FRONT FOOTREST GV1400GC CAVALCADE 1986 (G) USA (E03)

FRONT FOOTREST GV1400GC CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4350124A00
ref: 1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 125.50

2

4350224A00
ref: 2

FOOTREST ASSEMBLY,FRONT,LEFT

€ 148.00

3

4351024A00
ref: 3

BAR COMP,FRONT FOOTREST

€ 69.00

4

4352024A00
ref: 4

BAR COMP,FRONT FOOTREST

€ 151.00

5

0931910040
ref: 5

BUSHING

€ 9.00

6

4353024A00
ref: 6

HOLDER COMP,FRONT FOOT

€ 56.50

7

4354024A00
ref: 7

HOLDER COMP,FRONT FOOT

€ 55.50

8

0211205107
ref: 8

SCREW

€ 2.00

9

0832121057
ref: 9
08321-0105A

LOCK WASHER

€ 2.00

10

4355124A00
ref: 10

RUBBER,FR FOOTREST

€ 15.50

11

4358024A00
ref: 11
43580-24A01

PLATE,FOOTREST RUBBER

€ 11.50

12

0920008054
ref: 12

PIN

€ 0.00

13

0832211088
ref: 13
08322-01087

WASHER

€ 2.00

14

0411120208
ref: 14
04111-2020A

PIN 20X20

€ 1.50

15

4357024A00
ref: 15

BOSS COMP,FOOTREST HOLDER

€ 29.50

16

0831931107
ref: 16

NUT

€ 3.00

17

0711008307
ref: 17
07130-08307

BOLT, LH

€ 4.50

18

0931908025
ref: 18

BUSH

€ 13.50

19

0831931087
ref: 19

NUT

€ 2.50

20

0911106047
ref: 20

BOLT

€ 2.00

21

0925006009
ref: 21

CAP(OD:14.5)

€ 3.50

22

0931910040
ref: 22

BUSHING

€ 9.00

23

0831921068
ref: 23
08319-2106A

NUT 6MM

€ 2.00

24

0944820010
ref: 24

SPRING

€ 3.50

25

0944820009
ref: 25

SPRING

€ 3.50

26

0910610040
ref: 26

BOLT 10X51

€ 0.00

27

0711010357
ref: 27
07130-10357

BOLT, LH

€ 3.50

28

4357534500
ref: 28

CAP

€ 1.50
