prices are in EUR

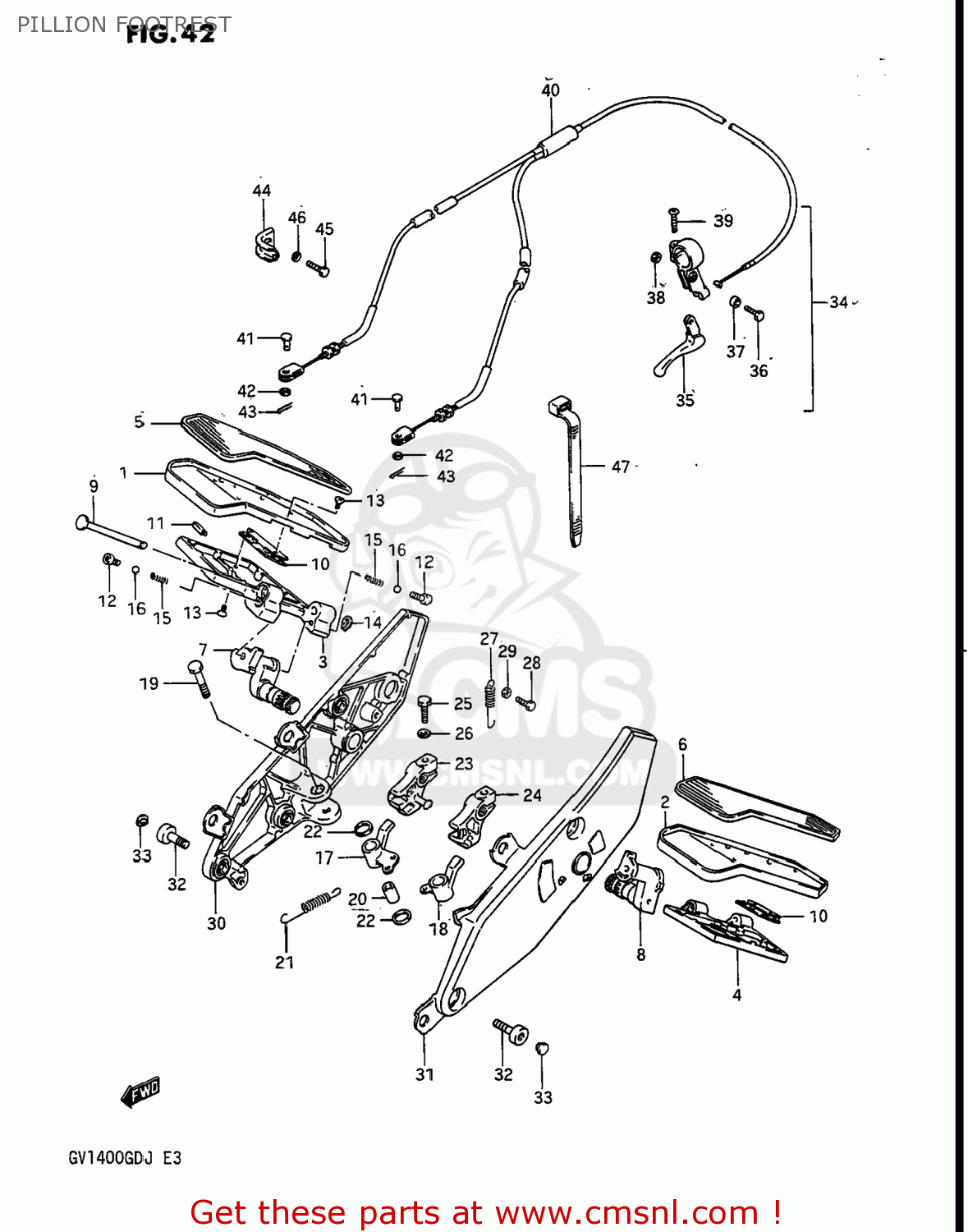

ref
part #
description
quantity
1
BOARD,PILLION FOOT,UPPER
2
BOARD,PILLION FOOT,UPPER
3-1
BOARD,PILLION FOOT,LOWER
3-2
BOARD,PILLION FOOT,LOWER
4-1
BOARD,PILLION FOOT,LOWER
4-2
BOARD,PILLION FOOT,LOWER
5
RUBBER,PILLION FOOTBOARD
6
RUBBER,PILLION FOOTBOARD
8
BAR,PILLION FOOTBOARD
12
BOLT,PILLION BOARD SPRING
13
SCREW(5X10)
14
CIRCLIP,10MM
15
SPRING
16
BALL
19
BOLT(10X38)
20
SPACER,PILLION BOARD,LEFT
23
CAM,PILLION FOOT BOARD
25
BOLT
26
LOCK WASHER
28
BOLT
29
NUT 6MM
30-1
BRACKET,MUFFLER,RIGHT
31-1
BRACKET,MUFFLER,LEFT
33
CAP
34
LEVER ASSEMBLY,PILLION FOOT
37
SPACER,DECOMPRESSION LEVER
38
NUT 8MM
40-1
CABLE,PILLION FOOTREST
40-2
CABLE,PILLION FOOT REST
41
PIN(L:13)
42
WASHER
43
PIN
45
BOLT
46
WASHER,LOCK
47
CLAMP(L:165)
