AUTO CRUISER

GV1400GD 1986 (G) (E01)

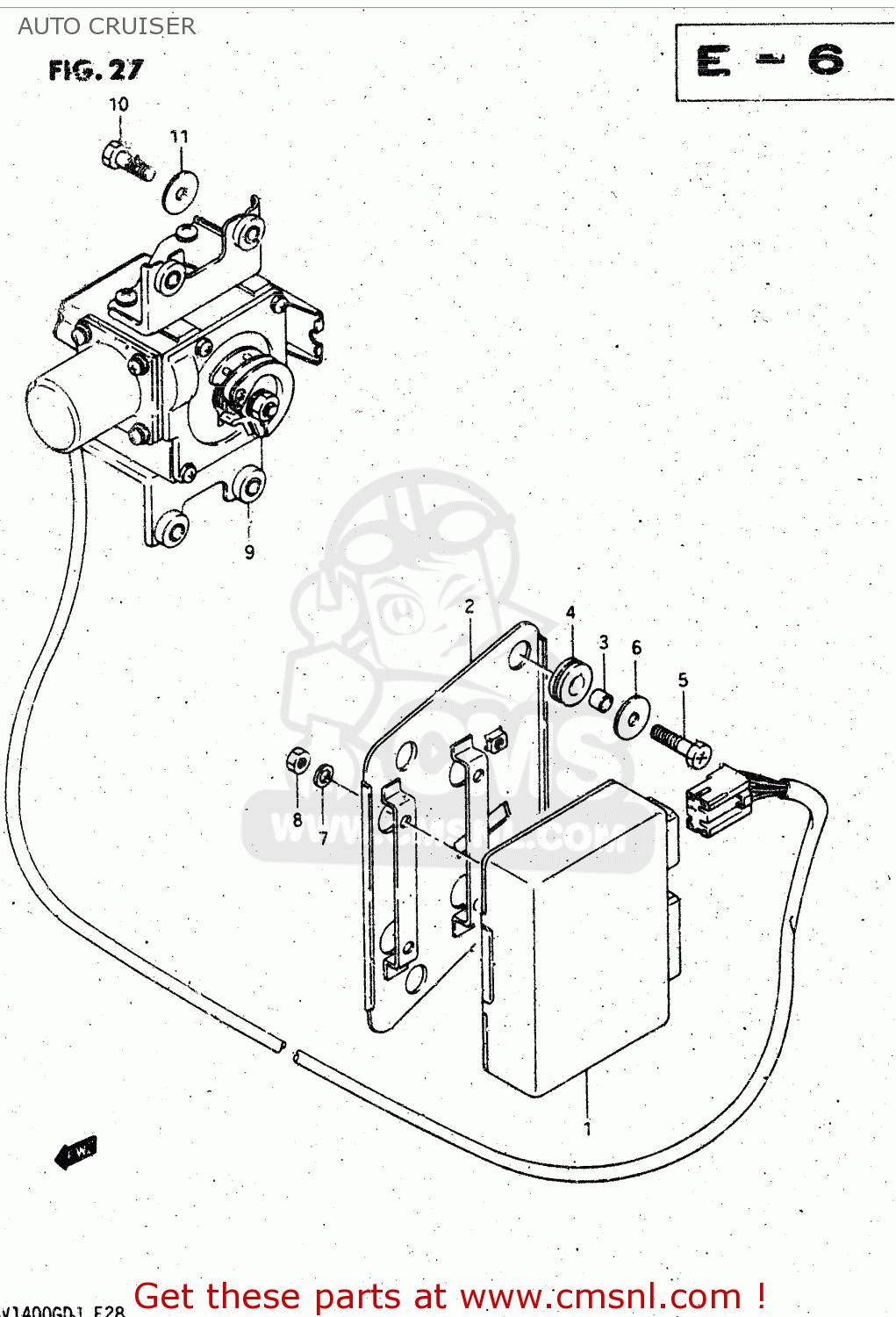

Auto cruiser diagram GV1400GD 1986 (G) (E01)

AUTO CRUISER GV1400GD 1986 (G) (E01)

AUTO CRUISER GV1400GD 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

3398024A00
ref: 1

CONTROLLER ASSEMBLY,AUTO CRUISE

€ 377.00

2

3398524A00
ref: 2

BRACKET

€ 0.00

3

0918007005
ref: 3

SPACER (7X9X7)

€ 2.50

4

0932008007
ref: 4

CUSHION

€ 4.00

5

0211206167
ref: 5

SCREW

€ 2.50

6

0916006007
ref: 6

WASHER

€ 2.00

7

0832121056
ref: 7

LOCK WASHER

€ 3.00

8

0831011056
ref: 8

NUT

€ 2.50

9

3399024A00
ref: 9

ACTUATOR ASSEMBLY,AUTO CRUISE

€ 897.00

10

0211206208
ref: 10

SCREW

€ 2.00

11

09160
ref: 11

WASHER (6.5X18X1.6)

€ 0.00
