FRAME COVER (MODEL G)

GV1400GD 1986 (G) (E01)

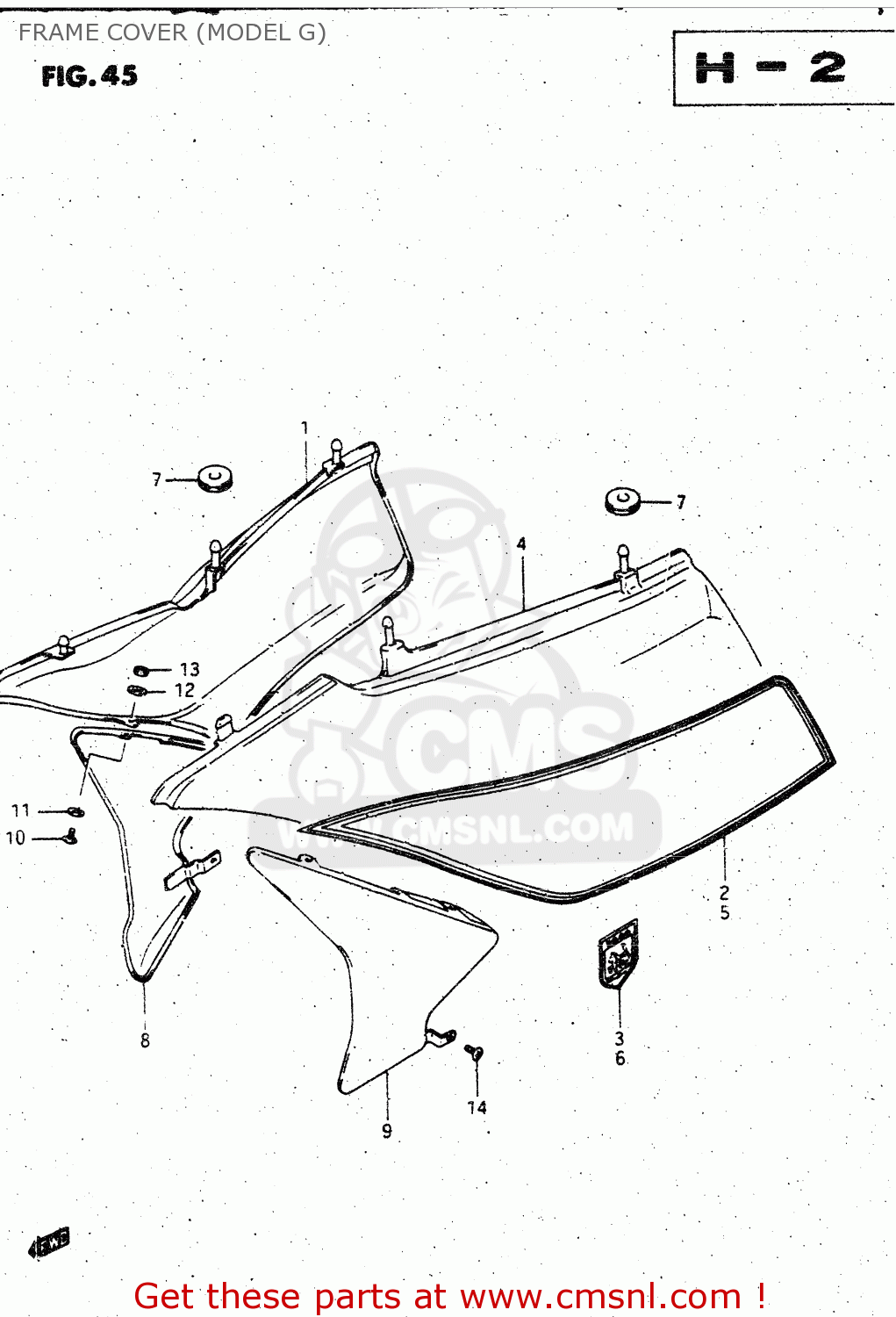

Frame cover (model g) diagram GV1400GD 1986 (G) (E01)

FRAME COVER (MODEL G) GV1400GD 1986 (G) (E01)

FRAME COVER (MODEL G) GV1400GD 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4711024A007UM
ref: 1-1

COVER,FRAME,RIGHT

€ 224.00

1-2

4711024A007UN
ref: 1-2

COVER,FRAME,RIGHT

€ 249.00

1-3

4711024A008RB
ref: 1-3

COVER,FRAME,RIGHT

€ 0.00

2-1

6813024A007UP
ref: 2-1
FOR 7UM

TAPE SET,FRAME COVER,RIGHT

€ 0.00

2-2

6813024A007UR
ref: 2-2
FOR 7UN

TAPE SET,FRAME COVER,RIGHT

€ 0.00

2-3

6813024A008JB
ref: 2-3
FOR 8RB

TAPE SET, FRAME COVER RH

€ 0.00

3

6813124A01
ref: 3

EMBLEM,FRAME COVER

€ 19.00

4-1

4721024A007UM
ref: 4-1

COVER,FRAME,LEFT

€ 214.00

4-2

4721024A007UN
ref: 4-2

COVER,FRAME,LEFT

€ 211.50

4-3

4721024A008RB
ref: 4-3

COVER,FRAME,LEFT

€ 0.00

5-1

6814024A007UP
ref: 5-1
FOR 7UM

TAPE SET,FRAME COVER,LEFT

€ 0.00

5-2

6814024A007UR
ref: 5-2
FOR 7UN

TAPE SET,FRAME COVER

€ 0.00

5-3

6814024A008JB
ref: 5-3
FOR 8RB

TAPE SET, FRAME COVER LH

€ 0.00

6

6813124A01
ref: 6

EMBLEM,FRAME COVER

€ 19.00

7

0932008018
ref: 7

CUSHION

€ 4.00

8

4712024A00
ref: 8

COVER,UNDER,RIGHT

€ 100.00

9

4722024A00
ref: 9

COVER,UNDER,LEFT

€ 92.50

10

0211206126
ref: 10

SCREW

€ 1.50

11

0832221066
ref: 11

WASHER, LOWER

€ 2.00

12

0916006003
ref: 12

WASHER (6.7X16X1.8)

€ 2.00

13

0831921068
ref: 13

NUT 6MM

€ 2.00

14

0214206108
ref: 14

SCREW

€ 2.00
