REAR SHOCK ABSORBER

GV1400GD 1986 (G) (E01)

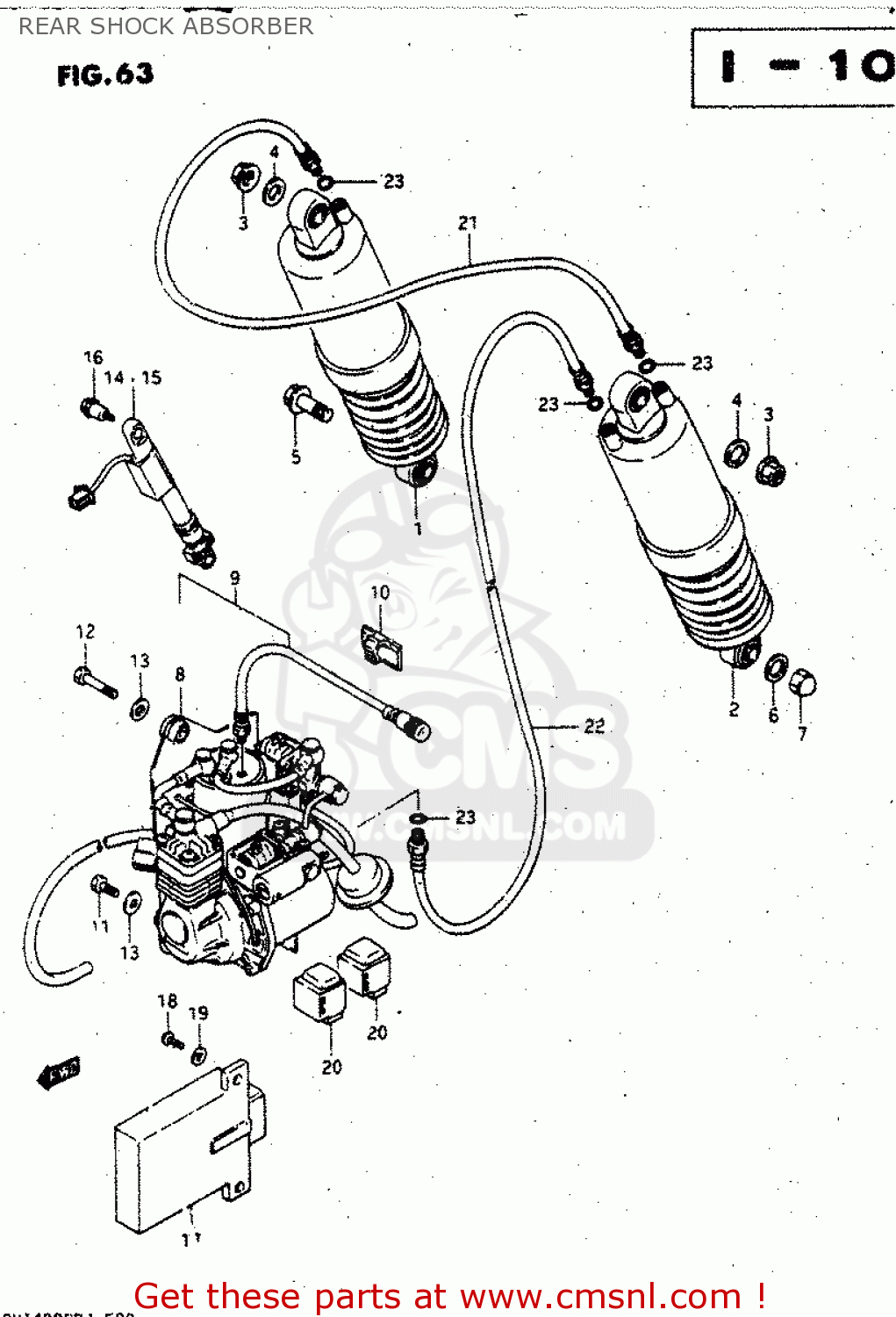

Rear shock absorber diagram GV1400GD 1986 (G) (E01)

REAR SHOCK ABSORBER GV1400GD 1986 (G) (E01)

REAR SHOCK ABSORBER GV1400GD 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1

6210324A00
ref: 1

ABSORBER ASSY,RR SHOCK,R

€ 580.00

2

6210424A00
ref: 2

ABSORBER ASSY,RR SHOCK,L

€ 552.00

3

0831616108
ref: 3

NUT

€ 2.00

4

0832211128
ref: 4

WASHER

€ 2.00

5

0910312014
ref: 5

BOLT 2X33

€ 0.00

6

0916010001
ref: 6

WASHER

€ 2.00

7-1

0831311108
ref: 7-1
MODEL G

NUT, LOWER LH

€ 2.50

7-2

0831011108
ref: 7-2
MODEL H/J

NUT

€ 2.50

8

6215024A01
ref: 8

AUTO LEVEL ASSEMBLY,REAR SHOCK

€ 1,967.00

9

6215024A20
ref: 9
GV1400GCJ

AUTO LEVEL ASSEMBLY,REAR SHOCK

€ 1,967.00

10

0940800082
ref: 10
GV1400GCJ

CLAMP

€ 5.50

11

0110706257
ref: 11
MODEL G

BOLT

€ 2.00

12

0110706508
ref: 12
MODEL G

BOLT

€ 3.00

13

0916006027
ref: 13
MODEL G

WASHER (6.5X20X1.2)

€ 2.00

14

6255024A00
ref: 14
MODEL G

SENSOR ASSEMBLY,AUTO LEVEL

€ 321.50

15

6255024A01
ref: 15
MODEL H/J

SENSOR ASSEMBLY,AUTO LEVEL

€ 321.50

16

0911106040
ref: 16

BOLT(6X21)

€ 3.50

17

6259024A01
ref: 17

UNIT,AUTO LEVEL CONTROL

€ 424.50

18

0211205168
ref: 18

SCREW

€ 2.50

19

0832221057
ref: 19

WASHER

€ 2.50

20

6256024A01
ref: 20

RELAY ASSY, MARKER LAMP

€ 37.50

21

6257024A00
ref: 21

HOSE COMP,REAR SHOCK ABSORBER

€ 59.50

22

6258024A00
ref: 22

HOSE COMP,AUTO LEVEL

€ 77.00

23

0928006005
ref: 23

O RING(D:1.9,ID:5.7)

€ 2.50
