TRAVEL TRUNK (MODEL H)

GV1400GD 1986 (G) (E01)

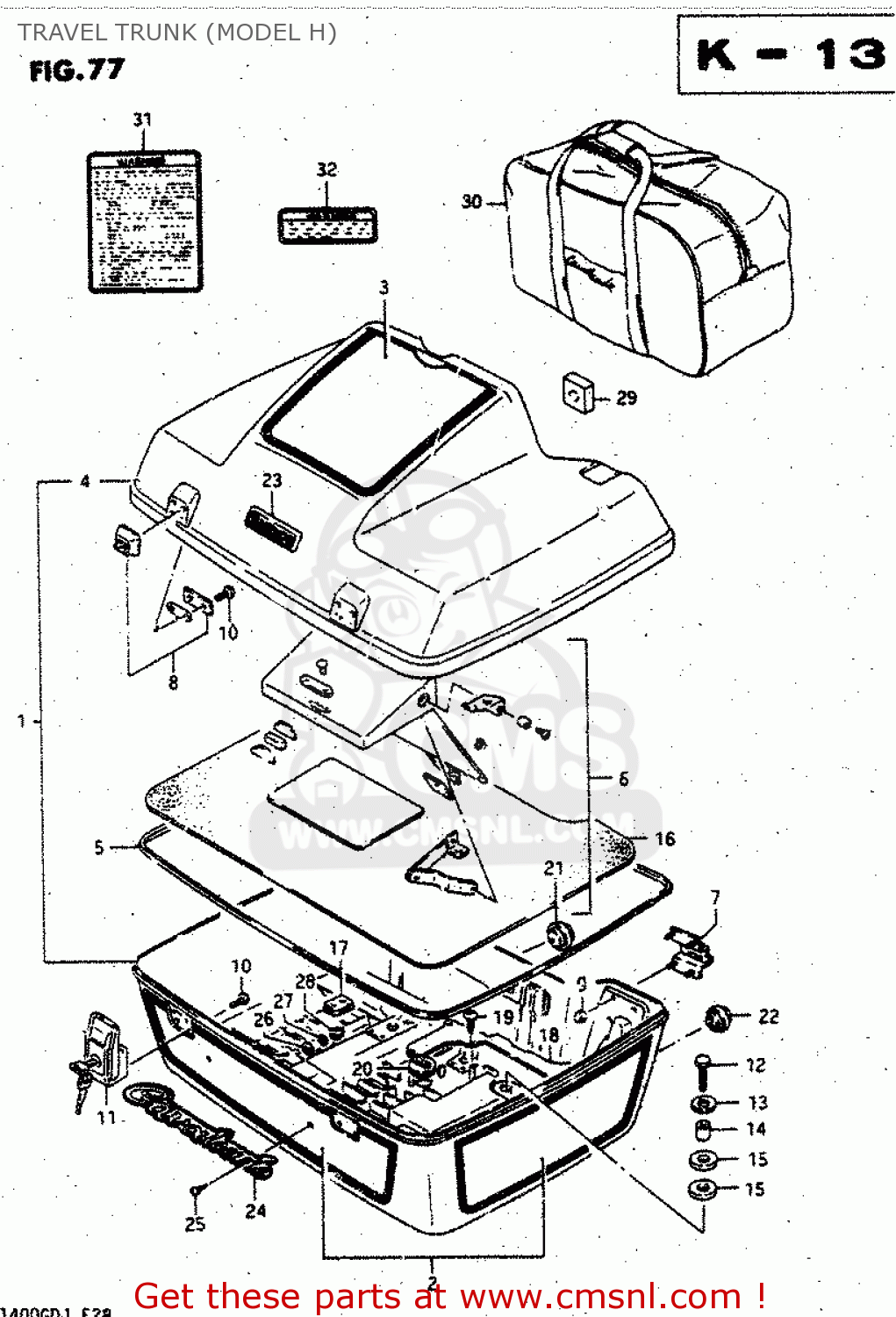

Travel trunk (model h) diagram GV1400GD 1986 (G) (E01)

TRAVEL TRUNK (MODEL H) GV1400GD 1986 (G) (E01)
TRAVEL TRUNK (MODEL H) GV1400GD 1986 (G) (E01)
TRAVEL TRUNK (MODEL H) GV1400GD 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1-1
9310024A5020H
ref: 1-1
TRUNK ASSEMBLY,TRAVEL
€ 1,373.50
1-2
9310024A5034B
ref: 1-2
TRUNK ASSEMBLY,TRAVEL
€ 1,456.00
2-1
6879024A319EC
ref: 2-1
FOR 20H
TAPE SET,TRAVEL TRUNK
€ 135.50
2-2
6879024A319ED
ref: 2-2
FOR 34B
TAPE SET,TRAVEL TRUNK
€ 0.00
3-1
6881024A009EC
ref: 3-1
FOR 20H
TAPE SET,TRUNK LID STRIPE
€ 0.00
3-2
6881024A009ED
ref: 3-2
FOR 34B
TAPE SET,TRUNK LID STRIPE
€ 0.00
4-1
9312024A0020H
ref: 4-1
FOR 20H
LID,TRAVEL TRUNK
€ 527.00
4-2
9312024A0034B
ref: 4-2
FOR 34B
LID,TRAVEL TRUNK
€ 527.00
5
9311524A00
ref: 5
SEAL,TRAVEL TRUNK LID
9311524A00
€ 18.50
6
9314024A01
ref: 6
MIRROR,TRAVEL TRUNK
9314024A01
€ 110.00
7
9313024A01
ref: 7
HINGE,TRAVEL TRUNK
€ 19.50
8
9331624A02
ref: 8
PLATE,TRUNK LID LOCK
€ 15.00
9-1
0831311045
ref: 9-1
NUT
€ 0.00
9-2
0831616055
ref: 9-2
NUT ,5MM
€ 2.00
10
0214205085
ref: 10
SCREW
0214205085
€ 2.00
11
9331024A01KEY
ref: 11
LOCK ASSY, SIDE BAG
€ 96.50
12
0110706257
ref: 12
BOLT
€ 2.00
13
0916006105
ref: 13
WASHER
€ 0.00
14
0918006055
ref: 14
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
15
0932009030
ref: 15
CUSHION
€ 0.00
16
9541524A00
ref: 16
SEAT,TRAVEL TRUNK BODY
€ 20.00
17
0930920001
ref: 17
GROMMET
€ 0.00
18
9311624A10
ref: 18
COVER, AIR HOSE
€ 10.00
19
0354104105
ref: 19
SCREW
0354104105
€ 1.50
20
0930924001
ref: 20
GROMMET
€ 0.00
21
4542524A00
ref: 21
GROMMET
€ 0.00
22
4542624A00
ref: 22
GROMMET
€ 0.00
23
6828524A00
ref: 23
EMBLEM,TRAVEL TRUNK,UPPER
€ 21.00
24
6828624A00
ref: 24
EMBLEM,TRAVEL TRUNK,LOWER
€ 45.50
25
0213203165
ref: 25
SCREW
0213203165
€ 1.50
26
0832221035
ref: 26
WASHER
€ 1.50
27
0916203002
ref: 27
WASHER
€ 1.50
28
0831311035
ref: 28
NUT
€ 0.00
29
4542924A10
ref: 29
SEAL
€ 0.00
30
9341024A01
ref: 30
LUGGAGE BAG,TRAVEL TRUNK
€ 115.00
31-1
6861324A20
ref: 31-1
LABEL (WARNING TRAVEL T
€ 0.00
31-2
6861324A30
ref: 31-2
LABEL, WARNING (FRENCH)
€ 0.00
32-1
6861924A00
ref: 32-1
LABEL, WARNING
€ 0.00
32-2
6861924A10
ref: 32-2
LABEL, WARNING (FRENCH)
€ 0.00
