STEERING STEM

GV1400GD 1986 (G) (E01)

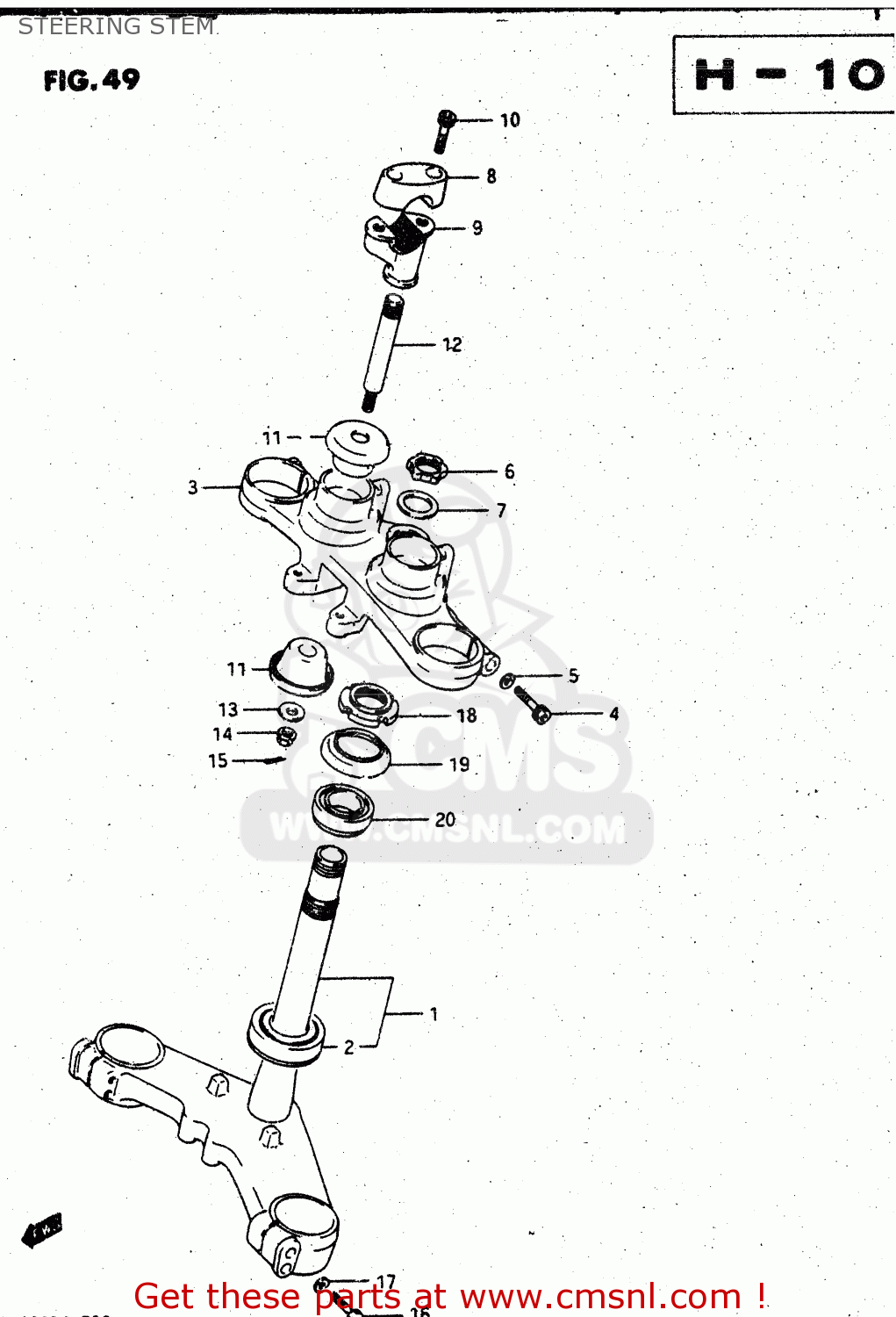

Steering stem diagram GV1400GD 1986 (G) (E01)

STEERING STEM GV1400GD 1986 (G) (E01)

STEERING STEM GV1400GD 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

5141024A00019
ref: 1-1
MODEL G

STEM,STEERING

€ 329.50

1-2

5141024A01019
ref: 1-2
MODEL H/J

STEM,STEERING

€ 329.50

2

0926530005
ref: 2

BEARING

€ 49.50

3

5131124A00019
ref: 3

HEAD,STEERING STEM

€ 178.00

4

0110708358
ref: 4

BOLT

€ 3.50

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

5135324A00
ref: 6

NUT,STEERING STEM

€ 13.50

7

5135627A00
ref: 7

WASHER,STEERING STEM

€ 3.00

8

5621124A00019
ref: 8

HOLDER,HANDLE,UPPER

€ 36.00

9-1

5622124A00
ref: 9-1
MODEL G ~F.NO.103764

HOLDER,HANDLEBAR

€ 0.00

9-2

5622124A20
ref: 9-2
MODEL G F.NO.103765~

HOLDER,HANDLE,LOWER

€ 38.00

10

0711008257
ref: 10

BOLT, FRONT LH

€ 3.50

11-1

5624024A00
ref: 11-1
MODEL G ~F.NO.103764

CUSHION

€ 0.00

11-2

5624024A20
ref: 11-2
MODEL G F.NO.103765~

CUSHION,DAMPER

€ 28.00

12

5622224A00
ref: 12

BOLT

€ 12.50

13

5135624A00
ref: 13

WASHER,STEERING STEM

€ 0.00

14

0831931107
ref: 14

NUT

€ 3.00

15

0411120308
ref: 15

COTTER PIN

€ 1.00

16

0110708408
ref: 16

BOLT 8X40

€ 3.00

17

0832121088
ref: 17

LOCK WASHER

€ 2.00

18

5163128000
ref: 18

NUT,STEERING STEM(25X44X10)

€ 12.50

19

5164349001
ref: 19

DUST SEAL,STEERING,UPPER

€ 7.50

20

0926525008
ref: 20

TAPER,ROLLER BEARING

€ 48.50
