CRANKCASE

GV1400GD 1986 (G) (E01)

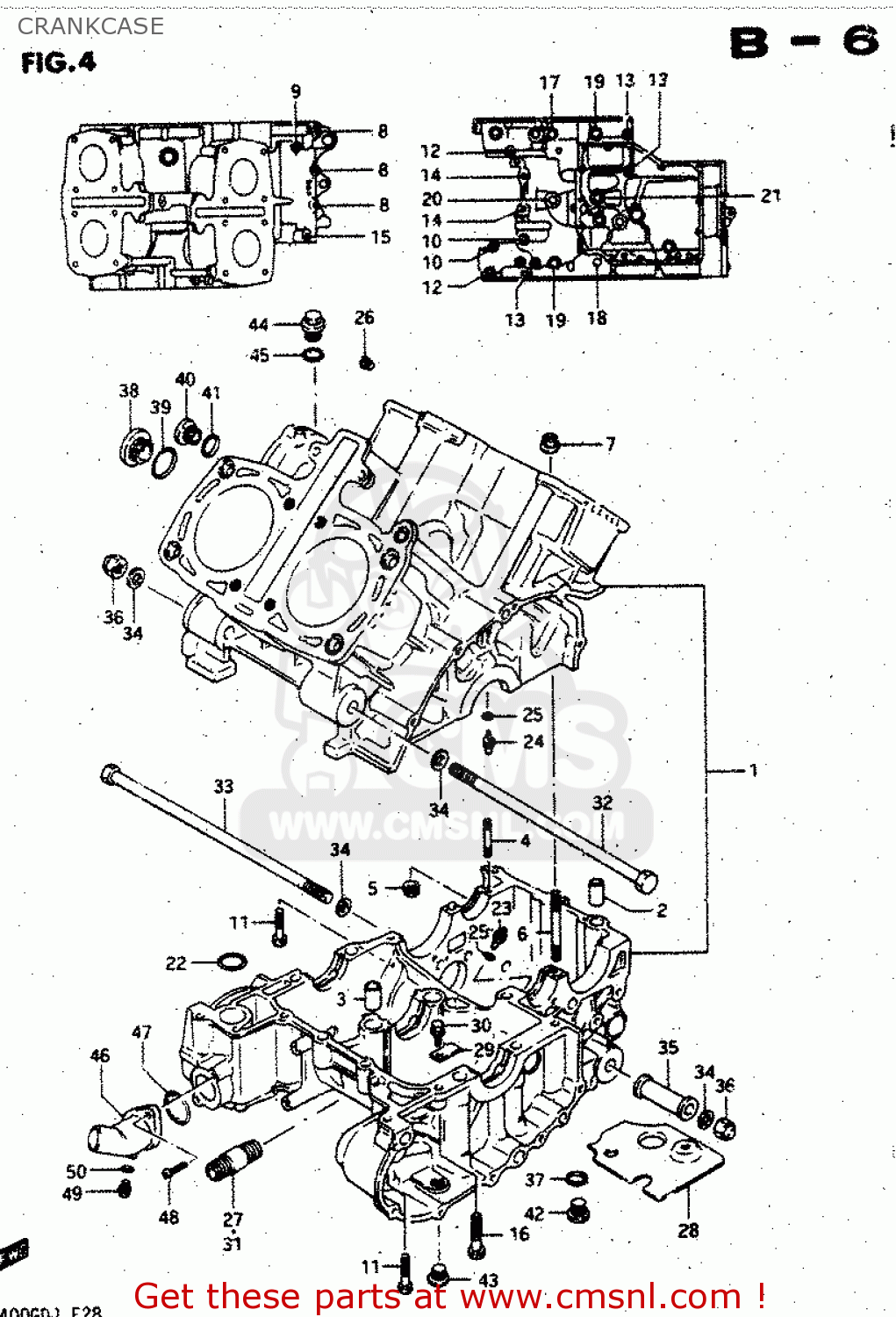

Crankcase diagram GV1400GD 1986 (G) (E01)

CRANKCASE GV1400GD 1986 (G) (E01)
CRANKCASE GV1400GD 1986 (G) (E01)
CRANKCASE GV1400GD 1986 (G) (E01)
prices are in EUR
ref
part #
description
quantity
1-1
1130024871
ref: 1-1
GV1400GDG
CRANKCASE SET
€ 1,221.00
1-2
1130024872
ref: 1-2
GV1400GDH/GDJ
CRANKCASE SET
€ 1,221.00
1-3
1130124821
ref: 1-3
GV1400GCJ
CRANKCASE SET
€ 2,731.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920616002
ref: 3
PIN
€ 0.00
4
0142106508
ref: 4
STUD 6X50
€ 2.00
5
0831931067
ref: 5
NUT
0831931067
€ 2.50
6
0142108655
ref: 6
STUD BOLT
0142108655
€ 3.50
7
0831616085
ref: 7
NUT 8MM
0831616085
€ 3.00
8
0151706354
ref: 8
BOLT 6X35
€ 2.50
9
0151706655
ref: 9
BOLT
€ 2.50
10
0151706905
ref: 10
BOLT (6X90)
€ 3.50
11
0711006308
ref: 11
BOLT
€ 3.00
12
0910306060
ref: 12
BOLT(6X100)
0910306060
€ 2.50
13
0910308182
ref: 13
BOLT(8X125)
0910308182
€ 4.50
14
0151708455
ref: 14
BOLT
€ 3.00
15
0151708605
ref: 15
BOLT 8X60
€ 3.50
16
0711008355
ref: 16
BOLT 8X35
0711008355
€ 4.00
17
0910310135
ref: 17
BOLT 10X145
€ 6.00
18
0910310078
ref: 18
BOLT(10X150)
0910310078
€ 8.50
19
0910310141
ref: 19
BOLT(10X125)
0910310141
€ 6.00
20
0910312010
ref: 20
BOLT
€ 0.00
21
0910312011
ref: 21
BOLT
€ 0.00
22
0928027003
ref: 22
O-RING (D:3 ID:27)
0928027003
€ 3.00
23
0949320014
ref: 23
JET,OIL GALLERY
0949320014
€ 8.00
24
0949332006
ref: 24
JET,OIL GALLERY(16)
€ 8.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
0928004004
€ 2.00
26
0924605001
ref: 26
PLUG
0924605001
€ 3.50
27
1659105A00
ref: 27
MODEL G
UNION,OIL STAND
1659105A00
€ 6.50
28
1152105A00
ref: 28
PLATE,OIL SEPARATOR
€ 2.50
29
1139305A00
ref: 29
MAGNET, DUST CATCH
€ 11.50
30
0151706128
ref: 30
BOLT
€ 2.50
31
1659106B00
ref: 31
MODEL H/J
UNION,OIL STAND
1659106B00
€ 6.00
32
0910410032
ref: 32
BOLT
€ 0.00
33
0910410030
ref: 33
BOLT
€ 0.00
34
0832211104
ref: 34
WASHER 10MM
0832211104
€ 2.50
35
1161014A00
ref: 35
SPACER,ENG MTG(L:55)
1161014A00
€ 9.00
36
0915910052
ref: 36
NUT
0915910052
€ 8.50
37
0916816002
ref: 37
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
38
0925926002
ref: 38
PLUG
0925926002
€ 17.00
39
0928022012
ref: 39
O-RING
0928022012
€ 1.50
40
0925920010
ref: 40
PLUG
€ 6.50
41
0928017003
ref: 41
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
42
0924816008
ref: 42
PLUG
0924816008
€ 4.00
43
0924816004
ref: 43
PLUG
0924816004
€ 4.00
44
0925920011
ref: 44
PLUG
€ 0.00
45
0928017003
ref: 45
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
46
1742105A00
ref: 46
CONNECTOR,WATER INLET
€ 36.00
47
0928032006
ref: 47
O RING(D:2.4,ID:31.7)
0928032006
€ 2.50
48
0211206205
ref: 48
SCREW
€ 2.00
49
1741514300
ref: 49
BOLT,DRAIN
1741514300
€ 2.00
50
0916808008
ref: 50
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
