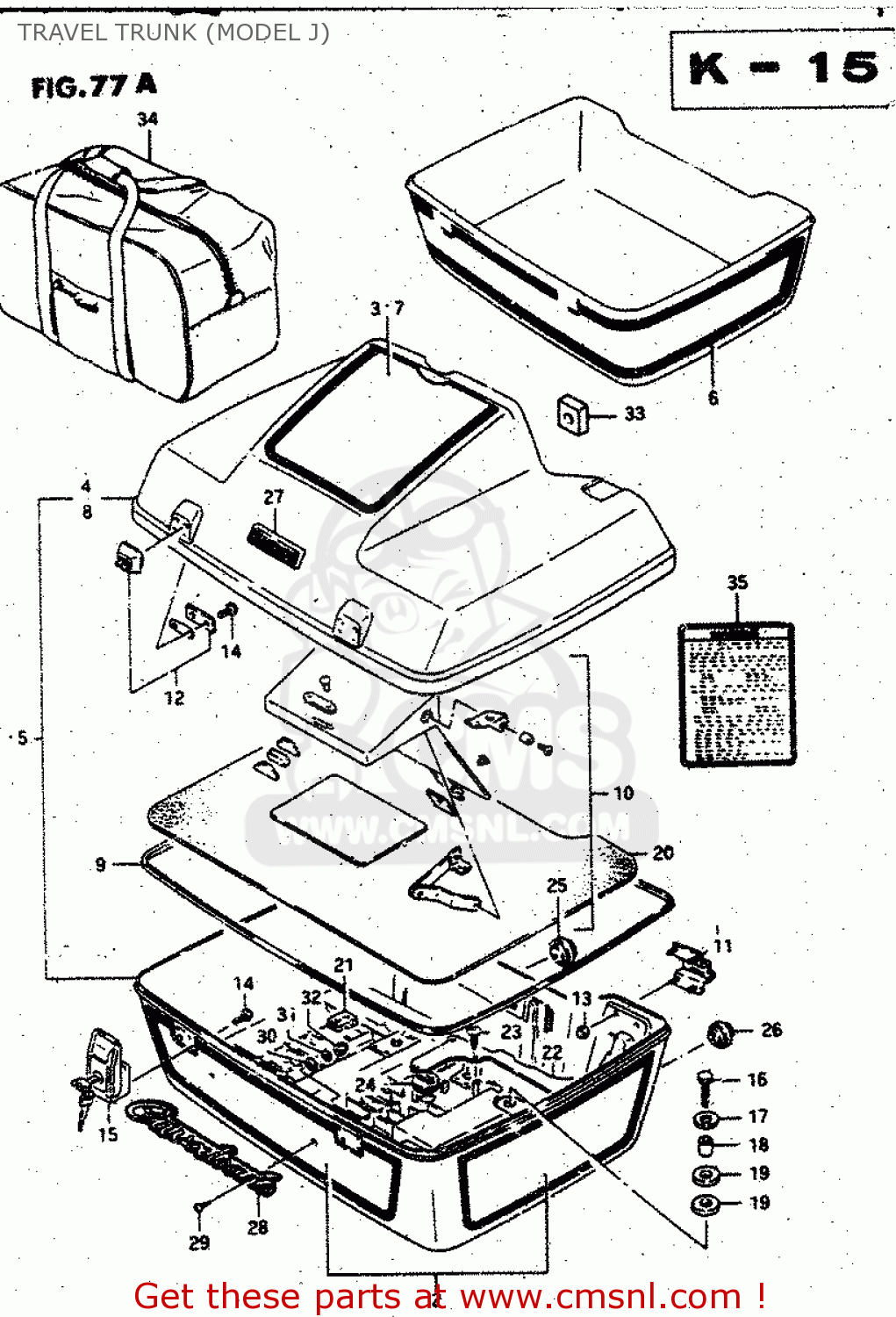

TRAVEL TRUNK (MODEL J)

ref

part #

description

quantity

1-1

9310024A7020H
ref: 1-1
GV1400GDJ

TRUNK ASSEMBLY,TRAVEL

€ 1,650.50

1-2

9310024A7038G
ref: 1-2
GV1400GDJ

TRUNK ASSEMBLY,TRAVEL

€ 0.00

2-1

6879024A409VJ
ref: 2-1
FOR 20H

TAPE SET,TRAVEL TRUNK

€ 0.00

2-2

6879024A409VK
ref: 2-2
FOR 38G

TAPE SET,TRAVEL TRUNK

€ 0.00

3-1

6881024A109VJ
ref: 3-1
FOR 20H

TAPE SET,TRUNK LID STRIPE

€ 0.00

3-2

6881024A109VK
ref: 3-2
FOR 38G

TAPE SET,TRUNK LID STRIPE

€ 0.00

4-1

9312024A0020H
ref: 4-1
FOR 20H

LID,TRAVEL TRUNK

€ 527.00

4-2

9312024A0038G
ref: 4-2
FOR 38G

LID,TRAVEL TRUNK

€ 527.00

5-1

9310024A609EE
ref: 5-1
GV1400GCJ

TRUNK ASSEMBLY,TRAVEL

€ 1,456.00

5-2

9310024A609EF
ref: 5-2
GV1400GCJ

TRUNK ASSEMBLY,TRAVEL

€ 0.00

6-1

6879024A209EA
ref: 6-1
FOR 9EE

TAPE SET,TRAVEL TRUNK

€ 68.50

6-2

6879024A209EB
ref: 6-2
FOR 9EF

TAPE SET,TRAVEL TRUNK

€ 0.00

7-1

6881024A009EA
ref: 7-1
FOR 9EE

TAPE SET,TRUNK LID STRIPE

€ 0.00

7-2

6881024A009EB
ref: 7-2
FOR 9EF

TAPE SET,TRUNK LID STRIPE

€ 0.00

8-1

9312024A1024D
ref: 8-1
FOR 9EE

LID,TRAVEL TRUNK

€ 518.00

8-2

9312024A1013Z
ref: 8-2
FOR 9EF

LID,TRAVEL TRUNK

€ 518.00

9

9311524A00
ref: 9

SEAL,TRAVEL TRUNK LID

€ 18.50

10

9314024A01
ref: 10

MIRROR,TRAVEL TRUNK

€ 110.00

11

9313024A01
ref: 11

HINGE,TRAVEL TRUNK

€ 19.50

12

9331624A02
ref: 12

PLATE,TRUNK LID LOCK

€ 15.00

13-1

0831311045
ref: 13-1

NUT

€ 0.00

13-2

0831616055
ref: 13-2

NUT ,5MM

€ 2.00

14

0214205085
ref: 14

SCREW

€ 2.00

15

9331024A01KEY
ref: 15

LOCK ASSY, SIDE BAG

€ 96.50

16

0110706257
ref: 16

BOLT

€ 2.00

17

0916006105
ref: 17

WASHER

€ 0.00

18

0918006055
ref: 18

SPACER(6.3X9.3X16.5)

€ 4.00

19

0932009030
ref: 19

CUSHION

€ 0.00

20-1

9541524A00
ref: 20-1
GV1400GDJ

SEAT,TRAVEL TRUNK BODY

€ 20.00

20-2

9541524A10
ref: 20-2
GV1400GCJ

SEAT,TRAVEL TRUNK BODY

€ 20.00

21-1

0930920001
ref: 21-1
GV1400GDJ

GROMMET

€ 0.00

21-2

0930920003
ref: 21-2
GV1400GCJ

GROMMET

€ 0.00

22

9311624A10
ref: 22

COVER, AIR HOSE

€ 10.00

23

0354104105
ref: 23

SCREW

€ 1.50

24

0930924001
ref: 24

GROMMET

€ 0.00

25

4542524A00
ref: 25

GROMMET

€ 0.00

26-1

4542624A00
ref: 26-1
GV1400GDJ

GROMMET

€ 0.00

26-2

4542624A90
ref: 26-2
GV1400GCJ

GROMMET, WIRE

€ 0.00

27

6828524A00
ref: 27

EMBLEM,TRAVEL TRUNK,UPPER

€ 21.00

28

6828624A00
ref: 28

EMBLEM,TRAVEL TRUNK,LOWER

€ 45.50

29

0213203165
ref: 29

SCREW

€ 1.50

30

0832221035
ref: 30

WASHER

€ 1.50

31

0916203002
ref: 31

WASHER

€ 1.50

32

0831311035
ref: 32

NUT

€ 0.00

33

4542924A10
ref: 33

SEAL

€ 0.00

34

9341024A01
ref: 34

LUGGAGE BAG,TRAVEL TRUNK

€ 115.00

35-1

6861324A20
ref: 35-1

LABEL (WARNING TRAVEL T

€ 0.00

35-2

6861324A30
ref: 35-2

LABEL, WARNING (FRENCH)

€ 0.00

all assemblies
