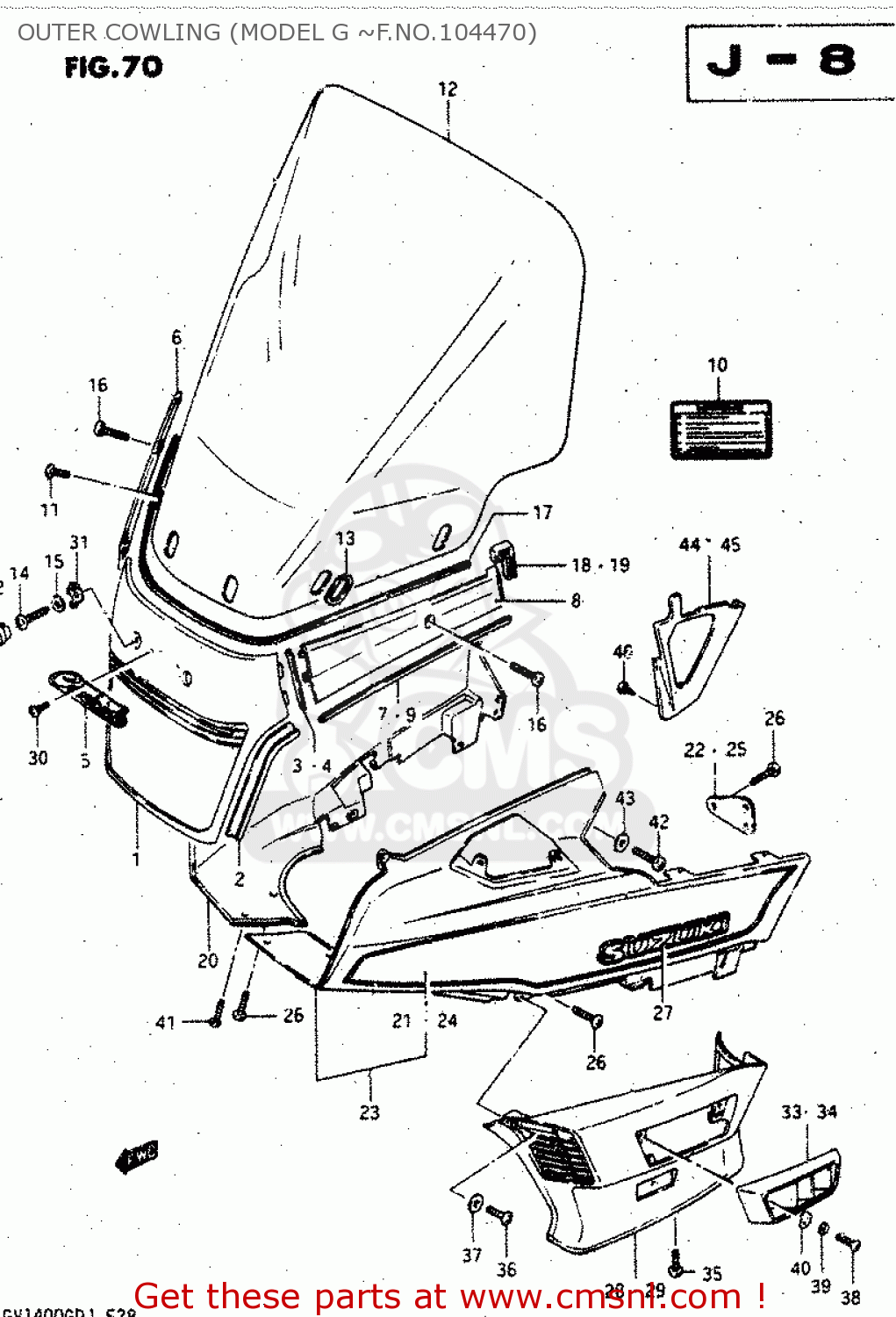

OUTER COWLING (MODEL G ~F.NO.104470)

ref

part #

description

quantity

1

9441124A00
ref: 1

COVER,COWLING,FRONT,CENTER

€ 135.50

2

9463924A02
ref: 2

MOLDING,FRONT COVER,LOWER

€ 6.50

3

9463324A00
ref: 3

CUSHION,WINDSHEILD

€ 3.50

4

9463424A00
ref: 4

PLATE,WINDSHEILD

€ 4.00

5

6819324A00
ref: 5

EMBLEM,COWLING,FRONT

€ 24.50

6

9441224A00
ref: 6

COVER,COWLING,FRONT,RIGHT

€ 33.50

7

9463624A02
ref: 7

MOLDING,FRONT COVER SIDE

€ 7.00

8

9441324A00
ref: 8

COVER,COWLING,FRONT,LEFT

€ 37.00

9

9463624A02
ref: 9

MOLDING,FRONT COVER SIDE

€ 7.00

10-1

6861224A01
ref: 10-1

LABEL (WARNING SCREEN)

€ 3.00

10-2

6861224A10
ref: 10-2

LABEL, WARNING (FRENCH)

€ 0.00

11

0214206203
ref: 11

SCREW

€ 2.00

12-1

9461024A00
ref: 12-1

SCREEN ASSEMBLY,COWLING

€ 613.00

12-2

9461024A90
ref: 12-2
OPT

SCREEN ASSEMBLY,COWLING (OP

€ 382.50

13

9461424A00
ref: 13

WASHER,SCREEN

€ 3.50

14

0211206258
ref: 14

SCREW

€ 2.00

15

0832221067
ref: 15

WASHER

€ 2.00

16

0211206258
ref: 16

SCREW

€ 2.00

17

9463524A00
ref: 17

SEAL,FRONT COVER,CENTER

€ 9.50

18

9463724A00
ref: 18

CAP,COWLING FRONT COVER END

€ 13.50

19

9464724A00
ref: 19

CAP,COWL FR COVER END,L

€ 12.50

20-1

9445024A007UM
ref: 20-1

BODY,COWLING,RIGHT

€ 352.00

20-2

9445024A007UN
ref: 20-2

BODY,COWLING,RIGHT

€ 352.00

21-1

6868024A007UP
ref: 21-1
FOR 7UM

TAPE SET,COWLING BODY

€ 0.00

21-2

6868024A007UR
ref: 21-2
FOR 7UN

TAPE SET,COWLING BODY

€ 0.00

22

9449924A00
ref: 22

BRACKET,COWLING BODY,RIGHT

€ 5.00

23-1

9446024A007UM
ref: 23-1

BODY,COWLING,LEFT

€ 319.50

23-2

9446024A007UN
ref: 23-2

BODY,COWLING,LEFT

€ 319.50

24-1

6869024A007UP
ref: 24-1
FOR 7UM

TAPE SET,COWLING BODY

€ 0.00

24-2

6869024A007UR
ref: 24-2
FOR 7UN

TAPE SET,COWLING

€ 0.00

25

9449924A00
ref: 25

BRACKET,COWLING BODY,RIGHT

€ 5.00

26

0214206164
ref: 26

SCREW

€ 2.50

27

6811124A00
ref: 27

EMBLEM,COWLING SIDE,LEFT

€ 43.50

28-1

9443024A0024G
ref: 28-1

COVER ASSEMBLY,COWLING

€ 511.50

28-2

9443024A0024H
ref: 28-2

COVER ASSEMBLY,COWLING

€ 563.00

29-1

9444024A0024G
ref: 29-1

COVER ASSEMBLY,COWLING SIDE,LEFT

€ 201.50

29-2

9444024A0024H
ref: 29-2

COVER ASSEMBLY,COWLING SIDE,LEFT

€ 0.00

30

0213203128
ref: 30

SCREW

€ 1.00

31

9445624A00
ref: 31

PLATE,FR COVER LOCK

€ 3.50

32

9445724A00
ref: 32

CAP,FR COVER

€ 4.50

33

9443524A00
ref: 33

LOUVER,SIDE COVER,RIGHT

€ 54.00

34

9444524A00
ref: 34

LOUVER,SIDE COVER,LEFT

€ 47.50

35

0913906012
ref: 35

SCREW (M6X1X16)

€ 2.00

36

0214204165
ref: 36

SCREW

€ 2.00

37

0916004017
ref: 37

WASHER (4.3X13X0.80)

€ 1.50

38

0211204163
ref: 38

SCREW 4X16

€ 1.00

39

0832121043
ref: 39

LOCK WASHER

€ 2.00

40

0832221043
ref: 40

WASHER

€ 5.00

41

0214205164
ref: 41

SCREW

€ 2.50

42

0211206165
ref: 42

SCREW

€ 2.00

43

0832221064
ref: 43

WASHER

€ 2.00

44

9443624A00
ref: 44

UNDER COVER, FRAME

€ 11.50

45

9444624A00
ref: 45

COVER,COVER FRAME,UPPER

€ 11.50

46

0354104085
ref: 46

SCREW

€ 2.00
