SEAT

GV1400GD 1986 (G) (E01)

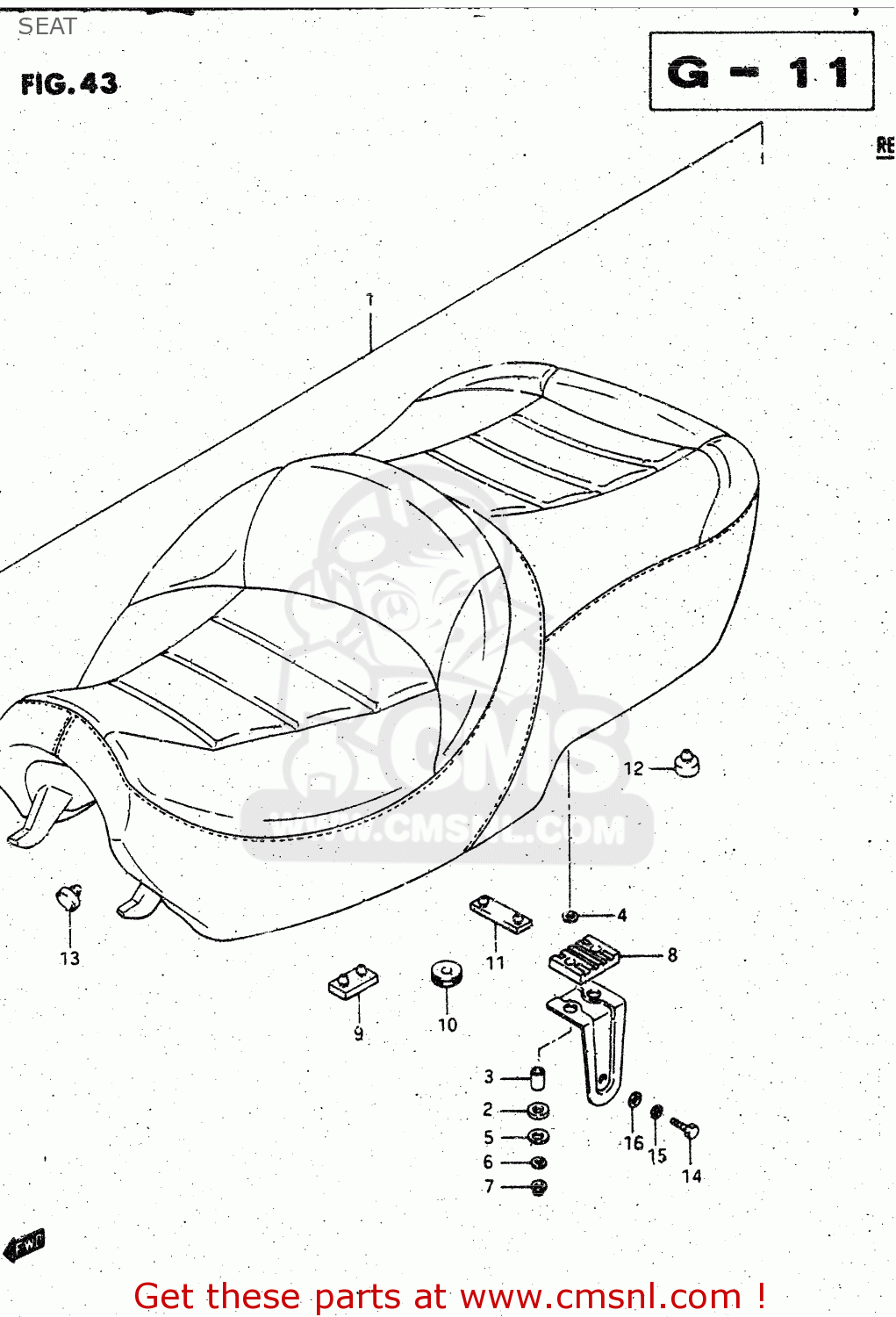

Seat diagram GV1400GD 1986 (G) (E01)

SEAT GV1400GD 1986 (G) (E01)

SEAT GV1400GD 1986 (G) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4510024A014FT
ref: 1-1
GV1400GDG FOR 7UM

SEAT ASSEMBLY

€ 339.50

1-2

4510024A017VD
ref: 1-2
GV1400GDG FOR 7UN

SEAT ASSEMBLY

€ 339.50

1-3

4510024A034FT
ref: 1-3
GV1400GDH/GDJ

SEAT SET

€ 339.50

1-4

4510024A219HN
ref: 1-4
GV1400GCJ FOR 9EE

SEAT ASSEMBLY

€ 339.50

1-5

4510024A219HP
ref: 1-5
GV1400GCJ FOR 9EF

SEAT ASSEMBLY

€ 339.50

2

4514723450
ref: 2

CUSHION,SEAT FR

€ 1.50

3

4521923450
ref: 3

SPACER,SEAT SUPPORT

€ 2.50

4

0821206201
ref: 4

WASHER

€ 1.50

5

0832221066
ref: 5

WASHER, LOWER

€ 2.00

6

0832121066
ref: 6

WASHER,LOCK

€ 2.00

7

0831011066
ref: 7

NUT

€ 2.00

8

4515023450
ref: 8

CUSHION,FR PLATE

€ 3.00

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0932108009
ref: 11

CUSHION

€ 4.00

12

0932110011
ref: 12

CUSHION

€ 3.00

13

0932110012
ref: 13

CUSHION

€ 3.00

14

0110708255
ref: 14

BOLT

€ 2.50

15

0832121084
ref: 15

WASHER,LOCK,8.

€ 2.50

16

0832211084
ref: 16

WASHER

€ 1.50

all assemblies
