CORNER LAMP COVER (GV1400GCG/GCH)

GV1400GD CAVALCADE 1986 (G) USA (E03)

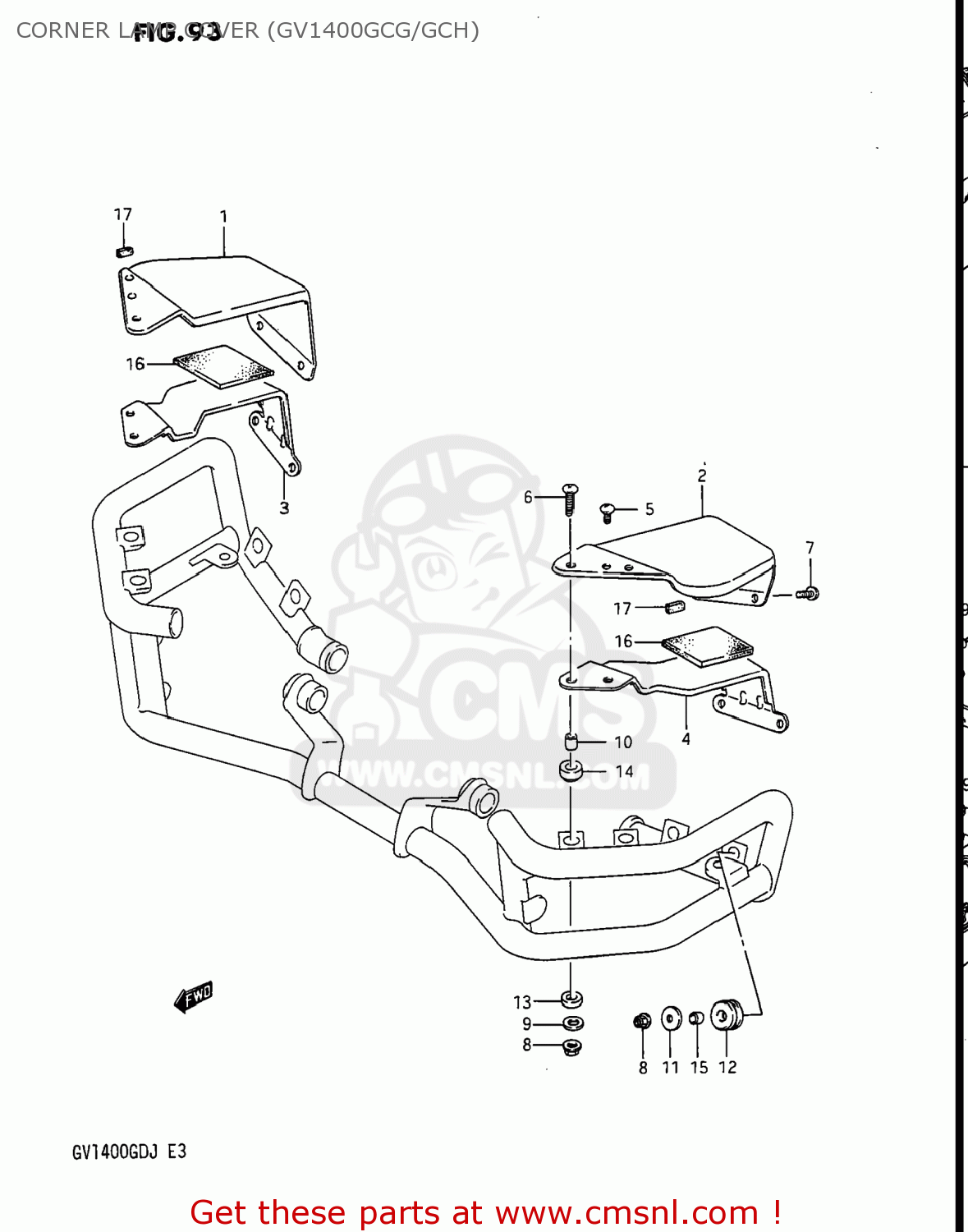

Corner lamp cover (gv1400gcg/gch) diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

CORNER LAMP COVER (GV1400GCG/GCH) GV1400GD CAVALCADE 1986 (G) USA (E03)

CORNER LAMP COVER (GV1400GCG/GCH) GV1400GD CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9426124A00
ref: 1

COVER,CORNER LAMP,RIGHT

€ 68.00

2

9427124A00
ref: 2

COVER,CORNER LAMP,LEFT

€ 55.50

3

9424024A10
ref: 3

COVER,CORNER LAMP,LOWER

€ 13.00

4

9425024A10
ref: 4

COVER,CORNER LAMP,LOWER

€ 10.50

5

0214205087
ref: 5

SCREW

€ 2.00

6

0214205207
ref: 6

SCREW

€ 2.00

7

0214205207
ref: 7

SCREW

€ 2.00

8

0831626056
ref: 8
08316-2005A

NUT

€ 2.00

9

0916005036
ref: 9
09160-05048

WASHER (5.5X14X1.2)

€ 2.00

10

0918005018
ref: 10
09180-05048

SPACER

€ 2.00

11

0916005011
ref: 11
09160-05501

WASHER (5.5X20X1.2)

€ 2.00

12

0932009002
ref: 12

CUSHION

€ 4.00

13

0932007005
ref: 13

CUSHION

€ 3.00

14

0932007009
ref: 14

CUSHION

€ 3.00

15

0918006038
ref: 15

SPACER(6.1X9X7.5)

€ 2.00

16

9426824A00
ref: 16

CUSHION,CORNER LAMP CVR CTR

€ 4.00

17

9426924A00
ref: 17

CUSHION, SIDE

€ 1.50
