REAR COMBINATION LAMP

GV1400GD CAVALCADE 1986 (G) USA (E03)

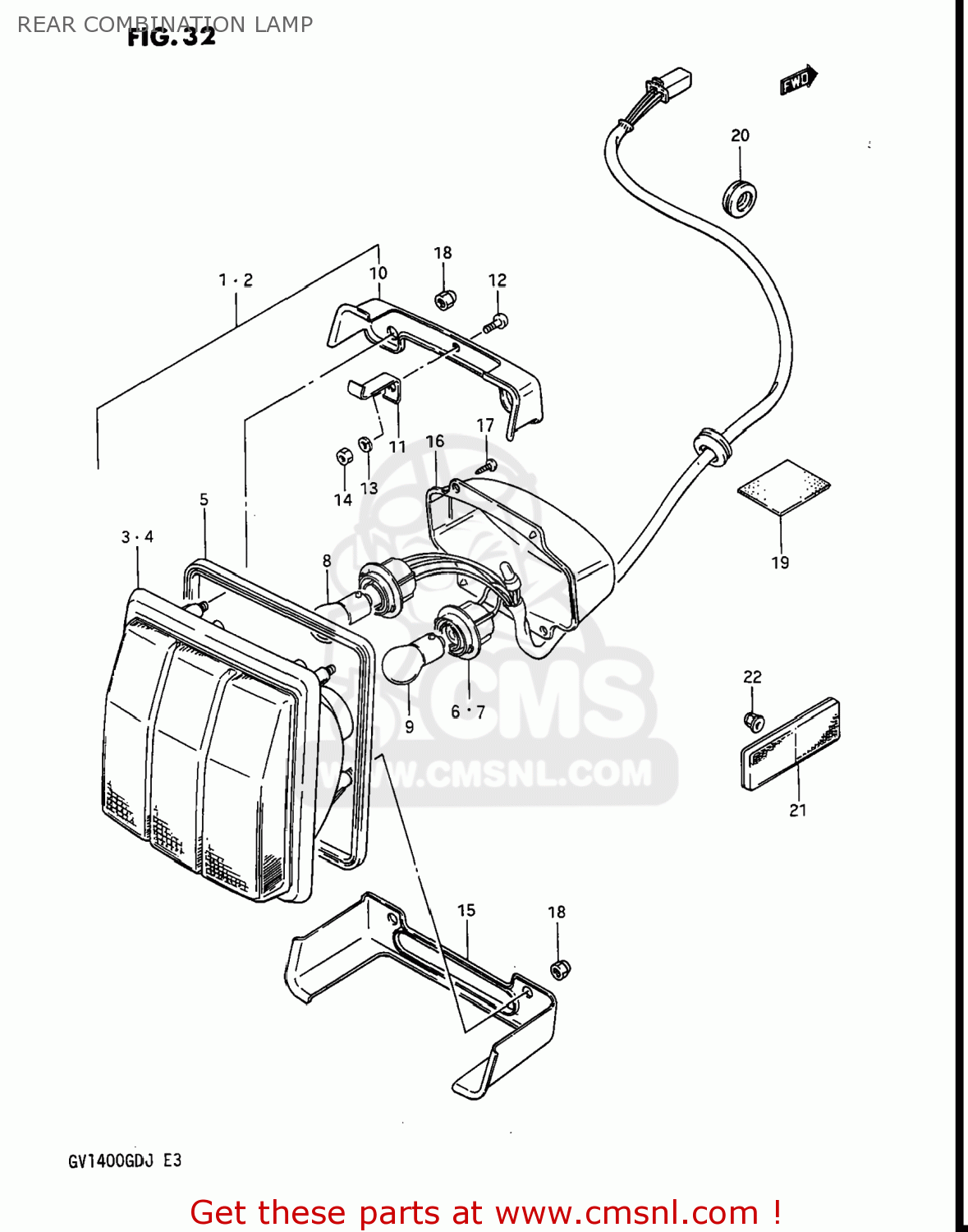

Rear combination lamp diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

REAR COMBINATION LAMP GV1400GD CAVALCADE 1986 (G) USA (E03)

REAR COMBINATION LAMP GV1400GD CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560324A01
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 72.00

2

3560424A01
ref: 2

LAMP ASSEMBLY,REAR COMBINATION

€ 48.50

3

3565024A00
ref: 3

LAMP UNIT,RIGHT

€ 146.00

4

3567024A00
ref: 4

LAMP UNIT,LH

€ 186.00

5

3565324A00
ref: 5

GASKET,REAR COMBINATION LAMP BASE

€ 14.50

6

3565824A01
ref: 6
35678-24A01

SOCKET, RH

€ 36.00

7

3567824A01
ref: 7

SOCKET,LEFT

€ 36.00

8

0947112084
ref: 8

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

9

0947112006
ref: 9

BULB(12V23W,STANLEY,A4577A)

€ 4.00

10

3562124A00
ref: 10

BRACKET,REAR COMBINATION LAMP,UPPER

€ 14.50

11

3562224A00
ref: 11

BRACKET, UPPER NO.2

€ 3.50

12

0211205105
ref: 12
02112-0510A

SCREW

€ 2.00

13

0832121057
ref: 13
08321-0105A

LOCK WASHER

€ 2.00

14

0831011058
ref: 14
08310-00057

NUT

€ 2.50

15

3564124A00
ref: 15

BRACKET,REAR COMBINATION LAMP,LOWER

€ 14.00

16

3567724A00
ref: 16

COVER

€ 0.00

17

0321104126
ref: 17
03211-0412A

SCREW

€ 1.50

18

0831311065
ref: 18
08313-1006A

NUT 6MM

€ 2.00

19

3692006400
ref: 19
36920-02200

COVER,HARNESS

€ 3.00

20

0930807011
ref: 20

GROMMET

€ 3.50

21

3597024A00
ref: 21

REFLEX REFLECTOR ASSY,RR SIDE

€ 10.50

22

0831321055
ref: 22
08313-2005A

NUT 5MM

€ 1.50
