TRAVEL TRUNK (GV1400GCG)

GV1400GD CAVALCADE 1986 (G) USA (E03)

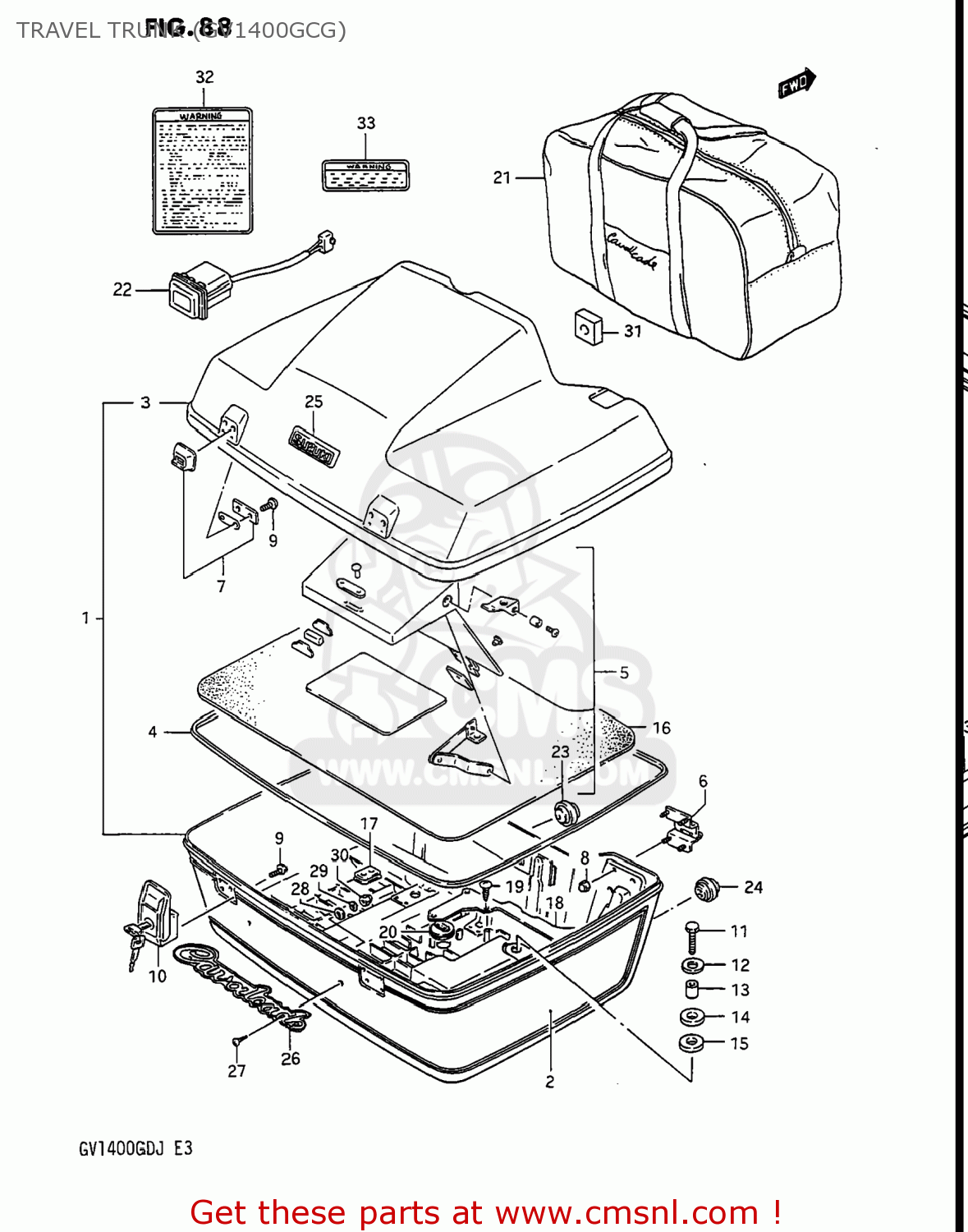

Travel trunk (gv1400gcg) diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

TRAVEL TRUNK (GV1400GCG) GV1400GD CAVALCADE 1986 (G) USA (E03)

TRAVEL TRUNK (GV1400GCG) GV1400GD CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9310024A408RB
ref: 1-1
93100-24A00-8RB

TRUNK ASSEMBLY,TRAVEL

€ 1,300.00

1-2

9310024A408VA
ref: 1-2

TRUNK ASSEMBLY,TRAVEL

€ 1,574.50

2-1

6879024A208JB
ref: 2-1

TAPE SET,TRAVEL TRUNK

€ 0.00

2-2

6879024A208UZ
ref: 2-2

TAPE SET,TRAVEL TRUNK

€ 0.00

3-1

9312024A1027U
ref: 3-1

LID,TRAVEL TRUNK

€ 518.00

3-2

9312024A1024V
ref: 3-2

LID,TRAVEL TRUNK

€ 518.00

4

9311524A00
ref: 4

SEAL,TRAVEL TRUNK LID

€ 18.50

5

9314024A00
ref: 5
93140-24A01

MIRROR,TRAVEL TRUNK

€ 110.00

6

9313024A01
ref: 6

HINGE,TRAVEL TRUNK

€ 19.50

7

9331624A00
ref: 7
93316-24A02

PLATE,TRUNK LID LOCK

€ 15.00

8

0831311045
ref: 8

NUT

€ 0.00

9

0214205085
ref: 9
02142-0508A

SCREW

€ 2.00

10

9331024A00KEY
ref: 10
93300-24820

LOCK ASSY, SIDE BAG

€ 96.50

11

0110706257
ref: 11
01500-06257

BOLT

€ 2.00

12

0916006105
ref: 12

WASHER

€ 0.00

13

0918006055
ref: 13

SPACER(6.3X9.3X16.5)

€ 4.00

14

0932009030
ref: 14

CUSHION

€ 0.00

15

0932009030
ref: 15

CUSHION

€ 0.00

16

9541524A00
ref: 16
95415-24A10

SEAT,TRAVEL TRUNK BODY

€ 20.00

17

0930920003
ref: 17

GROMMET

€ 0.00

18

9311624A00
ref: 18

COVER, AIR HOSE

€ 9.50

19

0354104105
ref: 19
03541-0410A

SCREW

€ 1.50

19

0354104105
ref: 19
03541-0410A

SCREW

€ 1.50

19

0354104105
ref: 19
03541-0410A

SCREW

€ 1.50

20

0930924001
ref: 20

GROMMET

€ 0.00

21

9341024A00
ref: 21
93410-24A01

LUGGAGE BAG,TRAVEL TRUNK

€ 115.00

22

6268024A00
ref: 22

SWITCH ASSEMBLY,AIR AUXILIARY

€ 37.50

23

4542524A00
ref: 23

GROMMET

€ 0.00

24

4542624A90
ref: 24

GROMMET, WIRE

€ 0.00

25

6828524A00
ref: 25

EMBLEM,TRAVEL TRUNK,UPPER

€ 21.00

26

6828624A00
ref: 26

EMBLEM,TRAVEL TRUNK,LOWER

€ 45.50

27

0213203165
ref: 27

SCREW

€ 1.50

28

0832221035
ref: 28

WASHER

€ 1.50

29

0916203002
ref: 29
09162-03001

WASHER

€ 1.50

30

0831311035
ref: 30

NUT

€ 0.00

31

4542924A00
ref: 31

SEAL

€ 0.00

32

6861324A20
ref: 32

LABEL (WARNING TRAVEL T

€ 0.00

33

6861924A00
ref: 33

LABEL, WARNING

€ 0.00

33

6861924A00
ref: 33

LABEL, WARNING

€ 0.00

33

6861924A00
ref: 33

LABEL, WARNING

€ 0.00
