STAND

GV1400GD CAVALCADE 1986 (G) USA (E03)

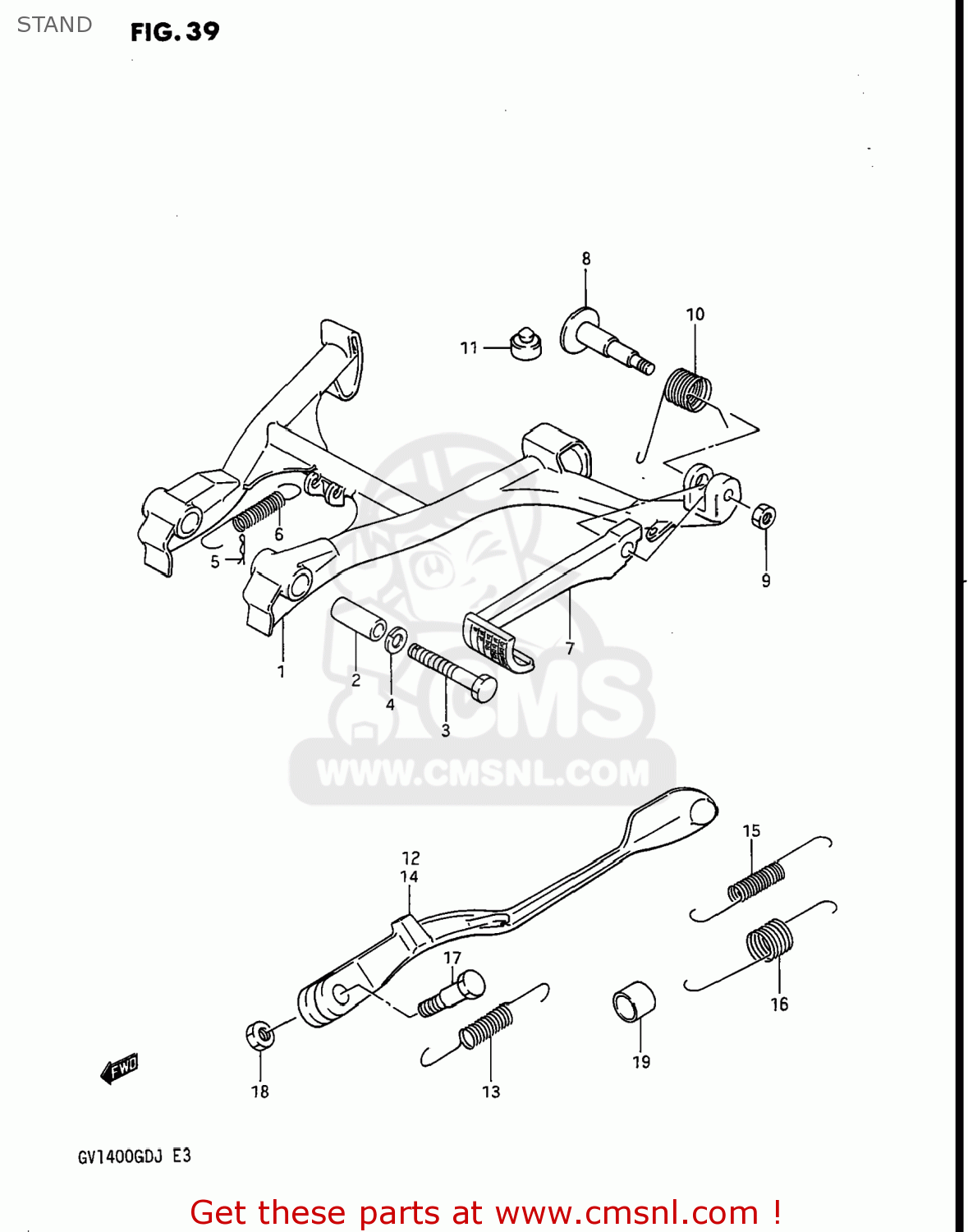

Stand diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

STAND GV1400GD CAVALCADE 1986 (G) USA (E03)

STAND GV1400GD CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4210024A00
ref: 1

STAND COMP,CENTER

€ 125.50

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110035
ref: 3
09117-10029

BOLT 10X63

€ 6.50

4

0832121107
ref: 4
08321-01107

WASHER,LOCK,10

€ 2.00

5

0938510001
ref: 5
09385-10005

CLIP

€ 1.50

6

0944315018
ref: 6

SPRING

€ 13.00

7

4217024A00
ref: 7

PEDAL COMP,CENTER STAND

€ 46.50

8

4224024A00
ref: 8

BOLT COMP,CENTER STAND

€ 10.50

9

0831022085
ref: 9
09140-08021

NUT 8MM

€ 2.00

10-1

0944825021
ref: 10-1
09448-25023

SPRING

€ 6.00

10-2

0944825023
ref: 10-2

SPRING

€ 6.00

11

0932110017
ref: 11

CUSHION

€ 5.50

12

4231124A00019
ref: 12
42311-24A01-019

STAND,SIDE

€ 50.50

13

0944314019
ref: 13

SPRING

€ 7.00

14

4231124A01019
ref: 14

STAND,SIDE

€ 50.50

15

0944315036
ref: 15

SPRING

€ 7.50

16

0944321004
ref: 16

SPRING

€ 8.50

17

0911110037
ref: 17

BOLT L:40

€ 0.00

18

0831022105
ref: 18
09140-10043

NUT

€ 2.00

19

4231524A00
ref: 19

RUBBER, PROP STAND

€ 4.00
