CRANKSHAFT
GV1400GD CAVALCADE 1986 (G) USA (E03)

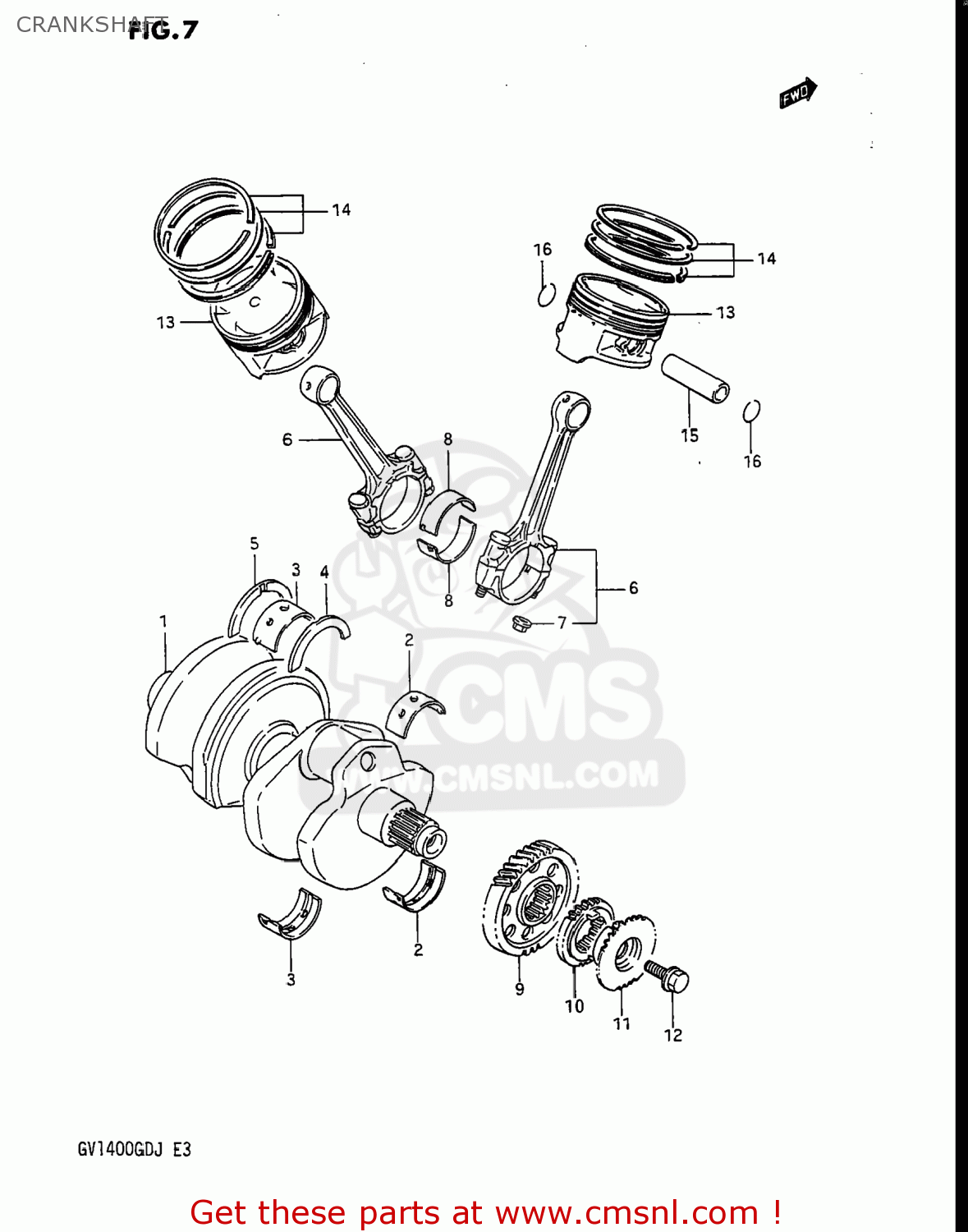

Crankshaft diagram GV1400GD CAVALCADE 1986 (G) USA (E03)
CRANKSHAFT GV1400GD CAVALCADE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1222024A01
ref: 1
12000-24810
CRANKSHAFT
€ 1,074.50
2-1
1222905A000A0
ref: 2-1
METAL CRANKSHAFT
€ 7.00
2-2
1222905A000B0
ref: 2-2
METAL CRANKSHAFT
€ 9.00
2-3
1222905A000C0
ref: 2-3
METAL CRANKSHAFT
€ 7.50
2-4
1222905A000D0
ref: 2-4
METAL CRANKSHAFT
€ 7.00
3-1
1222905A100A0
ref: 3-1
METAL CRANKSHAFT (GREEN)
€ 9.00
3-2
1222905A100B0
ref: 3-2
METAL CRANKSHAFT (BLACK)
€ 6.50
3-3
1222905A100C0
ref: 3-3
METAL CRANKSHAFT (BROWN)
€ 9.00
3-4
1222905A100D0
ref: 3-4
METAL CRANKSHAFT
€ 7.00
4
1222805A000D0
ref: 4
PLATE,CRANK THRUST
€ 6.50
5-1
1222805A000A0
ref: 5-1
PLATE,CRANK THRUST
€ 6.50
5-2
1222805A000B0
ref: 5-2
PLATE,CRANK THRUST
€ 6.50
5-3
1222805A000C0
ref: 5-3
PLATE,CRANK THRUST
€ 6.50
5-4
1222805A000D0
ref: 5-4
PLATE,CRANK THRUST
€ 6.50
5-5
1222805A000E0
ref: 5-5
PLATE,CRANK THRUST
€ 6.50
5-6
1222805A000F0
ref: 5-6
PLATE,CRANK THRUST
€ 6.50
6
1216024A02
ref: 6
CONNECTING ROD ASSEMBLY
€ 99.50
7
0915909001
ref: 7
NUT
€ 4.50
8-1
1216424A000A0
ref: 8-1
12164-30E00-0A0
BEARING,CRANK PIN
€ 11.00
8-2
1216424A000B0
ref: 8-2
12164-30E00-0B0
BEARING,CRANK PIN
€ 13.00
8-3
1216424A000C0
ref: 8-3
12164-30E00-0C0
BEARING,CRANK PIN
€ 7.00
8-4
1216424A000D0
ref: 8-4
12164-30E00-0D0
BEARING,CRANK PIN
€ 7.00
9
2111105A02
ref: 9
GEAR,PRIMARY DRIVE
€ 80.50
10
1274405A00
ref: 10
SPROCKET,CHAIN DRIVE I
€ 48.50
11
1753124A00
ref: 11
SPROCKET,WATER PUMP DRIVE
€ 48.50
12
0910310112
ref: 12
BOLT(10X24)
€ 4.00
13-1
1211124A05
ref: 13-1
PISTON (81.00MM)
€ 68.50
13-2
1211124A05050
ref: 13-2
12103-24810-050
PISTON
€ 95.50
13-3
1211124A05100
ref: 13-3
PISTON
€ 86.50
14-1
1214024A00
ref: 14-1
RING SET,PISTON
€ 44.50
14-2
1214024A00050
ref: 14-2
RING SET,PISTON (OS:0.5)
€ 39.50
14-3
1214024A00100
ref: 14-3
RING SET,PISTON (OS:1.0)
€ 39.50
15
1215124A00
ref: 15
PIN,PISTON
€ 18.50
16
0938120004
ref: 16
CIRCLIP,PISTON PIN
€ 2.00
