REAR MASTER CYLINDER

GV1400GD CAVALCADE 1986 (G) USA (E03)

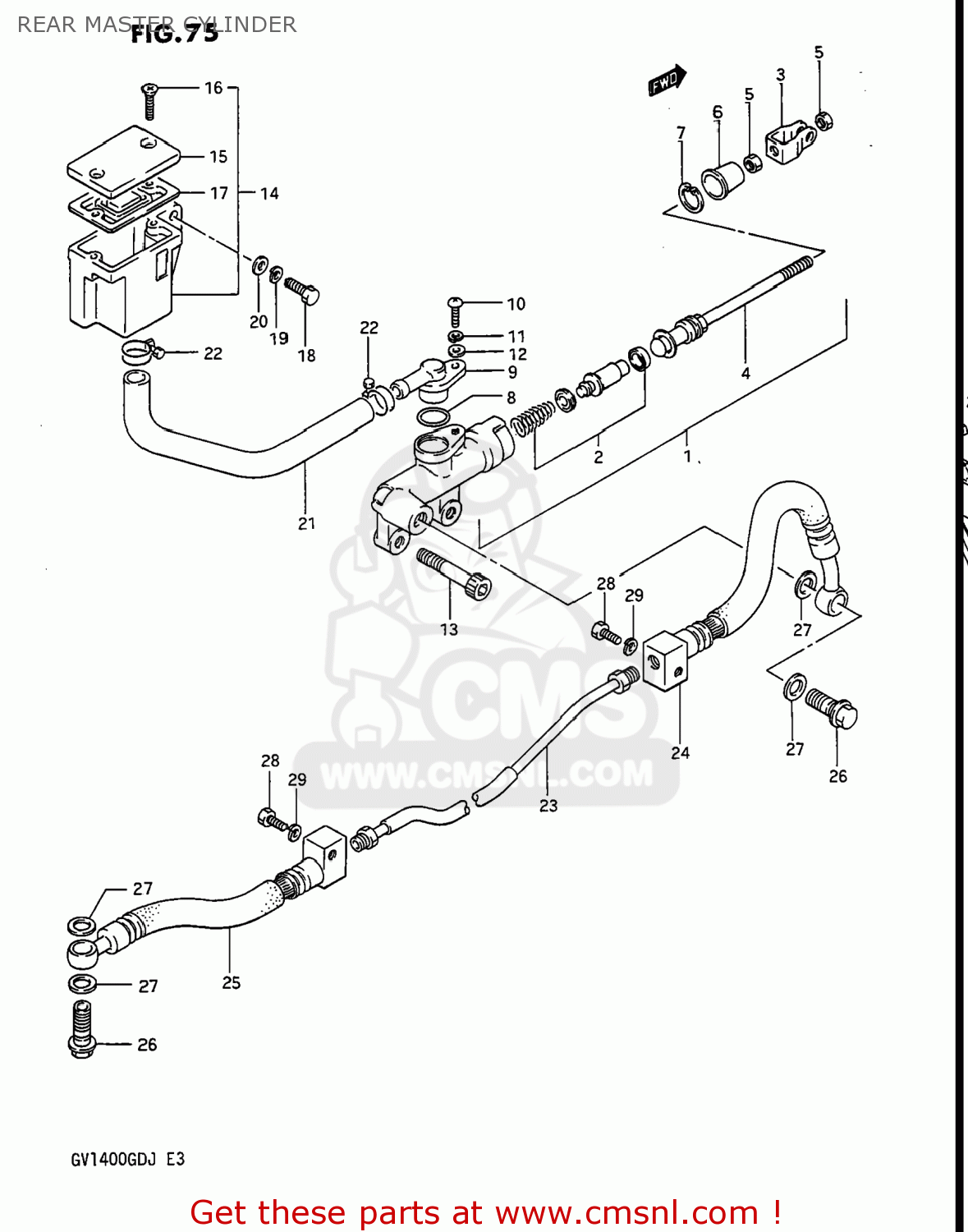

Rear master cylinder diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

REAR MASTER CYLINDER GV1400GD CAVALCADE 1986 (G) USA (E03)

REAR MASTER CYLINDER GV1400GD CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960024A01
ref: 1
69600-24A02

CYLINDER ASSEMBLY,REAR MASTER

€ 157.50

2

6960004810
ref: 2

PISTON/CUP SET

€ 42.50

3

6969219A00
ref: 3

YOKE

€ 10.50

4

6967024A00
ref: 4

ROD,PUSH

€ 67.50

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967205A00
ref: 9

CONNECTOR

€ 4.50

10

0211204124
ref: 10
02112-0412A

SCREW

€ 1.50

11

0832121045
ref: 11
08321-0104A

LOCK WASHER

€ 2.00

12

0832221045
ref: 12
08322-0104A

WASHER

€ 5.00

13

0712008605
ref: 13
07120-0860B

BOLT 5X10

€ 4.50

14

6974024A00
ref: 14
69740-24A01

TANK ASSEMBLY,RESERVOIR

€ 99.50

15

6966924A00
ref: 15
69669-24A01

CAP

€ 12.00

16

6968904A00
ref: 16

SCREW

€ 2.00

17

5966704700
ref: 17

DIAPHRAGM

€ 8.00

18

0110706167
ref: 18
01500-06167

BOLT

€ 3.00

19

0832121067
ref: 19
08321-01067

WASHER,LOCK

€ 2.50

20

0832221067
ref: 20
08322-01067

WASHER

€ 2.00

21

6973124A00
ref: 21

HOSE,RESERVOIR TANK

€ 6.00

22

0940016302
ref: 22
09400-16304

CLAMP

€ 4.50

23

6925024A00
ref: 23

PIPE,REAR BRAKE

€ 14.50

24-1

6948024A10
ref: 24-1
69480-24A12

HOSE,REAR BRAKE

€ 76.50

24-2

6948024A11
ref: 24-2
69480-24A12

HOSE,REAR BRAKE

€ 76.50

25

6948024A21
ref: 25
69480-24A22

HOSE,REAR BRAKE

€ 93.50

26

0936010017
ref: 26

BOLT UNION

€ 6.50

27

0916110009
ref: 27

WASHER(10X15X1.5)

€ 2.00

28

0110706127
ref: 28
01500-06127

BOLT

€ 2.00

29

0832121067
ref: 29
08321-01067

WASHER,LOCK

€ 2.50
