GV1400GD CAVALCADE 1986 (G) USA (E03)

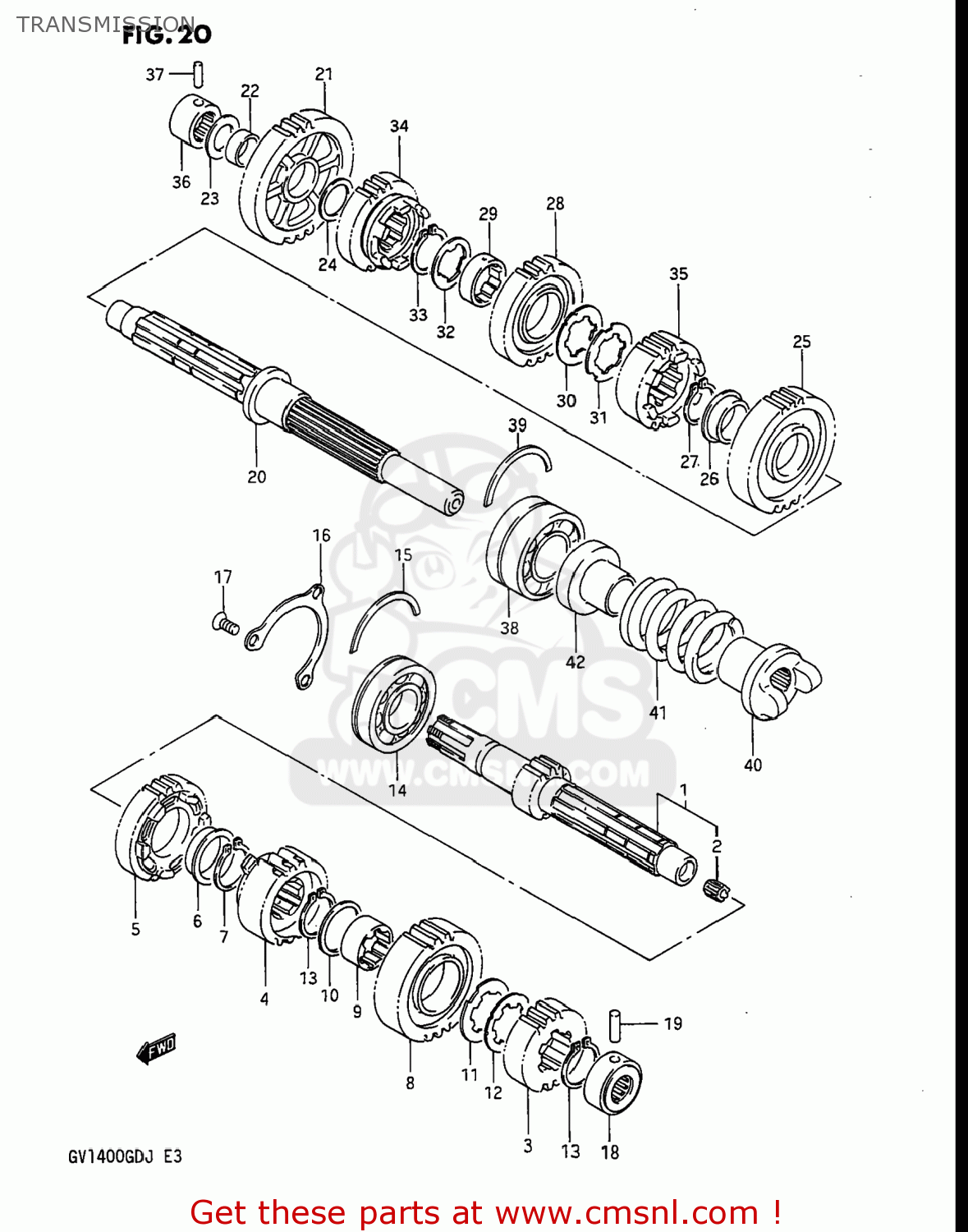

Transmission diagram GV1400GD CAVALCADE 1986 (G) USA (E03)
TRANSMISSION GV1400GD CAVALCADE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2410024840
ref: 1
24100-24841
SHAFT,COUNTER
€ 164.50
2
2412538201
ref: 2
BUSH
€ 3.50
3
2422124A02
ref: 3
GEAR,SECOND DRIVE
€ 96.50
4
2423124A05
ref: 4
GEAR,THIRD DRIVE
€ 100.50
5
2424124A05
ref: 5
GEAR,FOURTH DRIVE
€ 132.50
6
0930128001
ref: 6
BUSH(28X32X2)
€ 19.50
7
0938028008
ref: 7
CIRCLIP
€ 5.00
8
2425124A05
ref: 8
GEAR,FIFTH DRIVE
€ 122.50
9
2433224A00
ref: 9
BUSH
€ 18.00
10
0916728001
ref: 10
WASHER,LOCK
€ 3.00
11
0916728002
ref: 11
WASHER,LOCK
€ 3.00
12
0916928002
ref: 12
WASHER,LOCK
€ 6.00
13
0833111289
ref: 13
08331-3128A
CIRCLIP
€ 2.50
14
0926225051
ref: 14
09262-25105
BEARING(25X62X17)
€ 59.50
15
0939062006
ref: 15
09390-62012
C-RING
€ 5.00
16
2474105A00
ref: 16
PLATE,COUNTERSHAFT BEARING
€ 6.00
17
0212206167
ref: 17
SCREW
€ 2.00
18
0926320054
ref: 18
ROLLER BEARING (20X36X1
€ 36.50
19
0422107209
ref: 19
PIN
€ 1.50
20
2413124A04
ref: 20
SHAFT,DRIVE
€ 156.50
21
2431124A03
ref: 21
GEAR,FIRST DRIVEN
€ 88.00
22
0930022005
ref: 22
24312-02F00
BUSHING
€ 19.50
23
0821120343
ref: 23
WASHER
€ 2.50
24
0821122321
ref: 24
WASHER
€ 3.00
25
2432124A01
ref: 25
GEAR,SECOND DRIVEN
€ 96.50
26
0930128001
ref: 26
BUSH(28X32X2)
€ 19.50
27
0833111289
ref: 27
08331-3128A
CIRCLIP
€ 2.50
28
2433124A02
ref: 28
GEAR,THIRD DRIVEN
€ 111.50
29
2433249000
ref: 29
BUSH,3RD DRIVEN GEAR
€ 13.50
30
0916928001
ref: 30
WASHER
€ 3.00
31
0916728002
ref: 31
WASHER,LOCK
€ 3.00
32
0916728001
ref: 32
WASHER,LOCK
€ 3.00
33
0833111289
ref: 33
08331-3128A
CIRCLIP
€ 2.50
34
2434124A02
ref: 34
GEAR,FOURTH DRIVEN
€ 99.50
35
2435124A04
ref: 35
GEAR,FIFTH DRIVEN
€ 93.50
36
0926320040
ref: 36
BEARING(20X34X20)
€ 42.50
37
0422107209
ref: 37
PIN
€ 1.50
38
0926730008
ref: 38
BALL BEARING 30X62X28
€ 110.50
39
0939062006
ref: 39
09390-62012
C-RING
€ 5.00
40
2492224A03
ref: 40
DOG,INPUT CAM
€ 37.50
41
0944047004
ref: 41
SPRING
€ 49.50
42
2492324A01
ref: 42
STOPPER,CAM SPRING
€ 45.50
