Buy Suzuki GV Parts Online


CYLINDER HEAD (FRONT)

GV1400GD CAVALCADE 1986 (G) USA (E03)

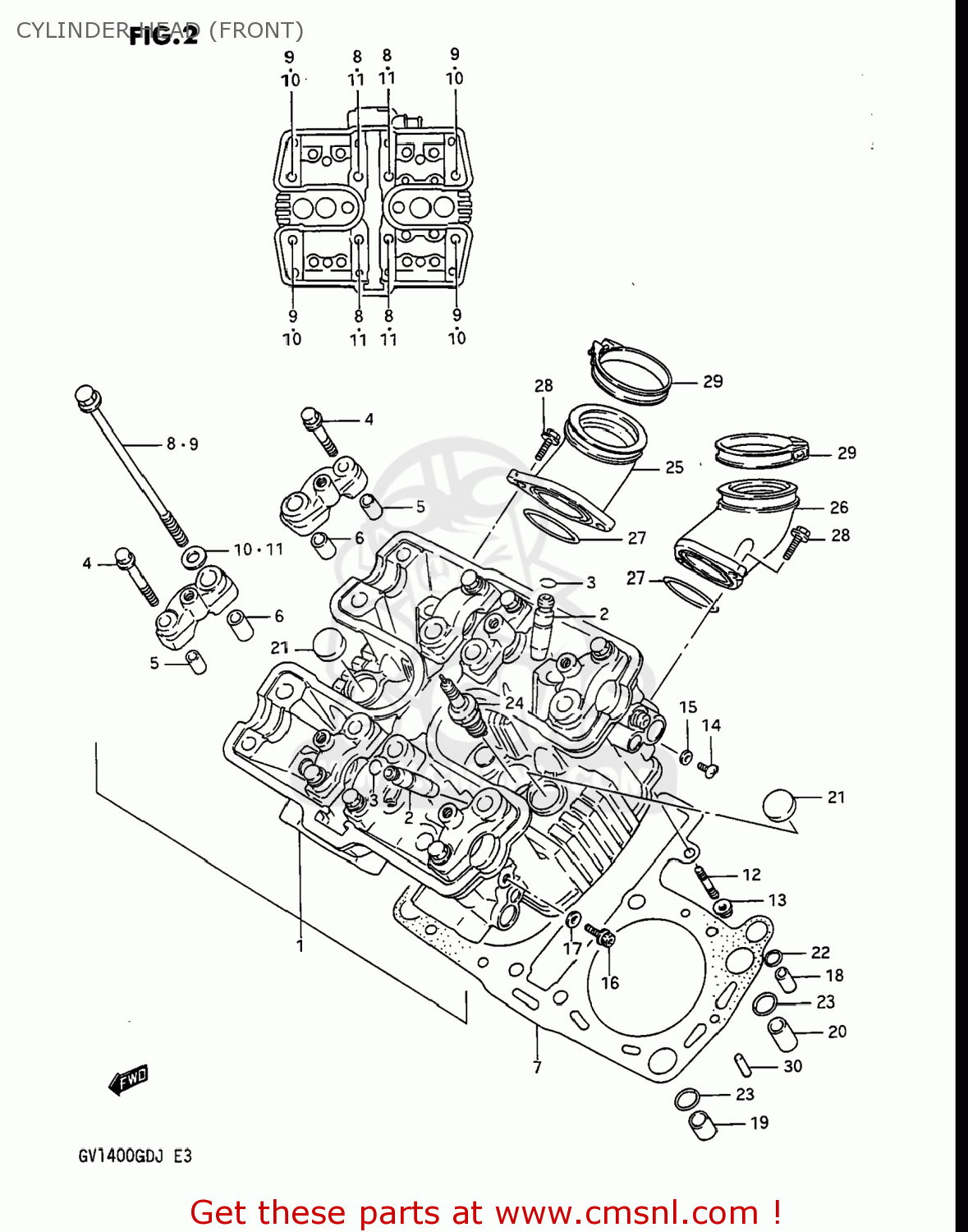

Cylinder head (front) diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

CYLINDER HEAD (FRONT) GV1400GD CAVALCADE 1986 (G) USA (E03)
CYLINDER HEAD (FRONT) GV1400GD CAVALCADE 1986 (G) USA (E03)
CYLINDER HEAD (FRONT) GV1400GD CAVALCADE 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1110124A00
ref: 1
HEAD ASSEMBLY,CYLINDER,FRONT
€ 1,332.50
2
1111524A71
ref: 2
11116-06B70
GUIDE,VALVE
€ 43.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910308136
ref: 4
BOLT
€ 0.00
5
0920611005
ref: 5
09206-11017
PIN (11X20)(SUS)
€ 6.50
6
0920613004
ref: 6
PIN(10.4X13X22)
0920613004
€ 3.00
7
1114124A00
ref: 7
GASKET,HEAD,FRONT (NAS)
1114124A00
€ 72.00
8
0910310104
ref: 8
09103-10133
BOLT
€ 7.50
9
0910310105
ref: 9
09103-10134
BOLT
€ 7.50
10
0916011005
ref: 10
WASHER
€ 0.00
11
0916010085
ref: 11
09160-10142
WASHER (10X20X2.3)
0916010085
€ 2.00
12
0142106255
ref: 12
01421-0625A
STUD 6X25
0142106255
€ 2.00
13
0831616064
ref: 13
08316-1006B
NUT 6MM
0831616064
€ 2.50
14
0211205085
ref: 14
02112-0508A
SCREW
€ 2.00
15
0916805010
ref: 15
GASKET(5.3X9.3X1.2) (NAS)
0916805010
€ 2.00
16
0712006125
ref: 16
07120-0612B
BOLT
€ 3.50
17
0916806018
ref: 17
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
18
0920609009
ref: 18
PIN
0920609009
€ 12.50
19
0920613013
ref: 19
PIPE
€ 0.00
20
0920613014
ref: 20
PIN
€ 1.50
21
0924222001
ref: 21
PLUG
0924222001
€ 2.50
22
0928009005
ref: 22
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
23
0928012009
ref: 23
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
24-1
0948200343111
ref: 24-1
09482-00343
SPARK PLUG X22EPR-GL
€ 15.00
24-2
0948200381
ref: 24-2
SPARK PLUG PJR7A
€ 4.50
24-3
0948200344111
ref: 24-3
SPARK PLUG
€ 0.00
24-4
0948200380
ref: 24-4
SPARK PLUG PJR6A
€ 4.00
24-5
0948200345111
ref: 24-5
SPARK PLUG
€ 0.00
24-6
0948200382
ref: 24-6
SPARK PLUG PJR8A
€ 3.50
25-1
1311024A00
ref: 25-1
13110-24A12
PIPE,INTAKE
€ 83.50
25-1
1311024A00
ref: 25-1
13110-24A12
PIPE,INTAKE
€ 83.50
25-2
1311024A02
ref: 25-2
13110-24A12
PIPE,INTAKE
€ 83.50
25-2
1311024A02
ref: 25-2
13110-24A12
PIPE,INTAKE
€ 83.50
25-3
1311024A10
ref: 25-3
13110-24A12
PIPE,INTAKE
€ 83.50
25-3
1311024A10
ref: 25-3
13110-24A12
PIPE,INTAKE
€ 83.50
25-4
1311024A12
ref: 25-4
PIPE,INTAKE FR,R/RR,L
1311024A12
€ 83.50
25-4
1311024A12
ref: 25-4
PIPE,INTAKE FR,R/RR,L
1311024A12
€ 83.50
26-1
1312024A00
ref: 26-1
13120-24A12
PIPE,INTAKE
€ 127.50
26-1
1312024A00
ref: 26-1
13120-24A12
PIPE,INTAKE
€ 127.50
26-2
1312024A02
ref: 26-2
13120-24A12
PIPE,INTAKE
€ 127.50
26-2
1312024A02
ref: 26-2
13120-24A12
PIPE,INTAKE
€ 127.50
26-3
1312024A10
ref: 26-3
13120-24A12
PIPE,INTAKE
€ 127.50
26-3
1312024A10
ref: 26-3
13120-24A12
PIPE,INTAKE
€ 127.50
26-4
1312024A12
ref: 26-4
PIPE,INTAKE FR,L/RR,R
1312024A12
€ 127.50
26-4
1312024A12
ref: 26-4
PIPE,INTAKE FR,L/RR,R
1312024A12
€ 127.50
27
0928040003
ref: 27
09280-40010
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
28
0151706208
ref: 28
01550-06207
BOLT,REAR
€ 2.50
29
1317005A00
ref: 29
09402-52501
CLAMP,PIPE
€ 9.00
30
0621104103
ref: 30
04221-04109
PIN
0621104103
€ 1.50
