LEFT HANDLE SWITCH

GV1400GD CAVALCADE 1986 (G) USA (E03)

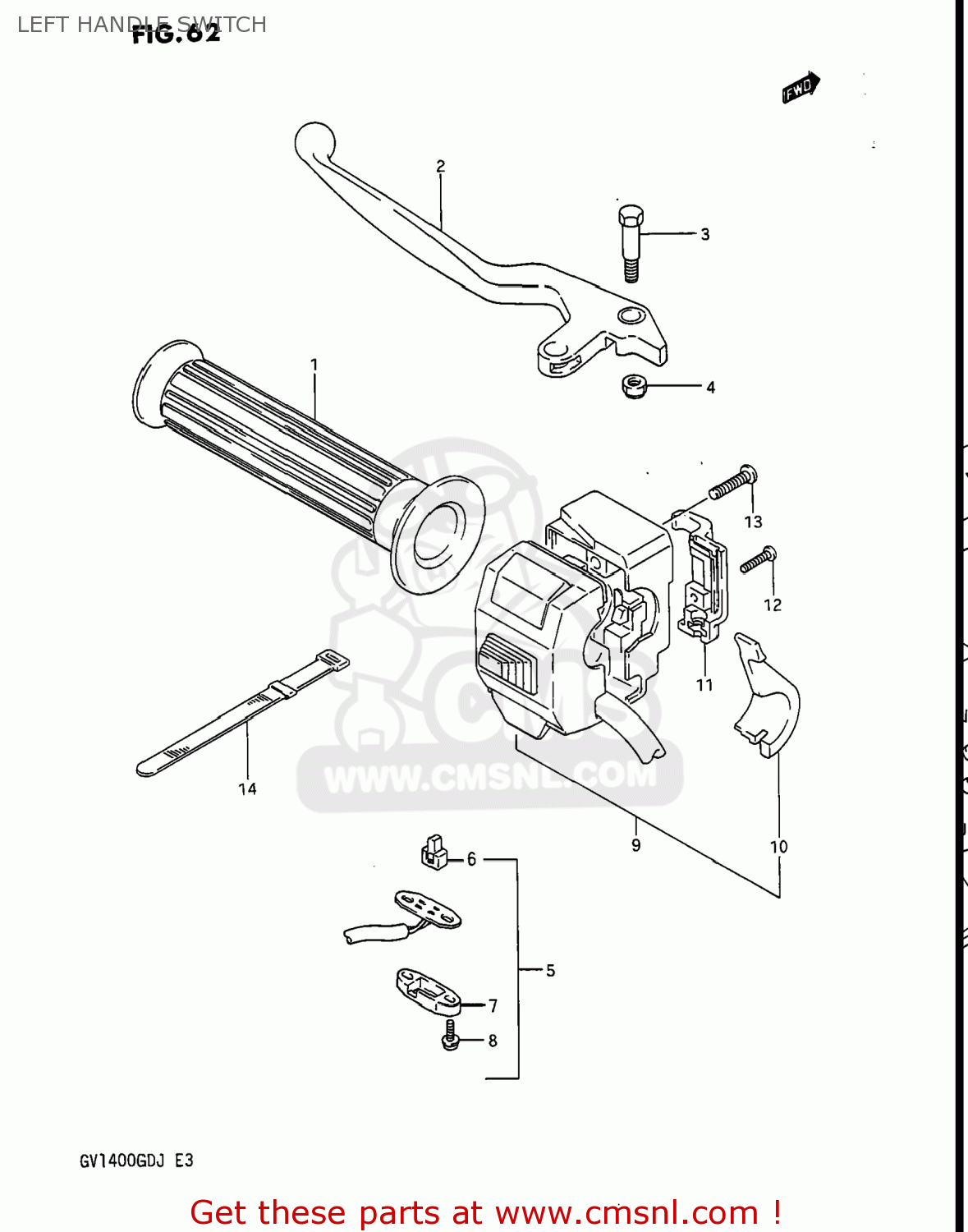

Left handle switch diagram GV1400GD CAVALCADE 1986 (G) USA (E03)

LEFT HANDLE SWITCH GV1400GD CAVALCADE 1986 (G) USA (E03)

LEFT HANDLE SWITCH GV1400GD CAVALCADE 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5721124A00
ref: 1

GRIP,LEFT

€ 10.50

2

5762024A00
ref: 2

LEVER,CLUTCH

€ 19.00

3

5743105A00
ref: 3

BOLT,LEVER

€ 8.50

4

0831921065
ref: 4
08319-2106B

NUT

€ 2.50

5-1

5756024A00
ref: 5-1
57560-24A01

SWITCH ASSEMBLY,CLUTCH

€ 20.50

5-2

5756024A01
ref: 5-2

SWITCH ASSY,CLUTCH

€ 20.50

5-2

5756024A01
ref: 5-2

SWITCH ASSY,CLUTCH

€ 20.50

6

5746518601
ref: 6

CONTACT,SWITCH

€ 4.50

7

5748133010
ref: 7

COVER,FR BK TERMINAL BASE

€ 19.50

8

0912503105
ref: 8
09125-03105-XC0

SCREW

€ 2.50

9-1

3740024A70
ref: 9-1
37400-24A51

SWITCH ASSEMBLY,HANDLE,LEFT

€ 192.00

9-2

3740024A50
ref: 9-2
37400-24A51

SWITCH ASSEMBLY,HANDLE,LEFT

€ 192.00

9-3

3740024A51
ref: 9-3

SWITCH ASSY,HANDLE LH

€ 192.00

9-3

3740024A51
ref: 9-3

SWITCH ASSY,HANDLE LH

€ 192.00

9-4

3740024A80
ref: 9-4
37400-24A60

SWITCH ASSEMBLY,HANDLE,LEFT

€ 146.00

9-5

3740024A60
ref: 9-5

SWITCH ASSEMBLY,HANDLE,LEFT

€ 146.00

10

3757124A70
ref: 10

LEVER,CHOKE

€ 29.00

11

3757524A70
ref: 11

COVER

€ 16.00

12

0351104205
ref: 12
03511-0420B

SCREW

€ 2.00

13

0211205205
ref: 13
02112-0520B

SCREW 5X20

€ 2.50

14

0940718401
ref: 14

CLAMP(L:187)

€ 2.00
