CARBURETOR
GZ250 MARAUDER 2002 (K2) USA (E03)

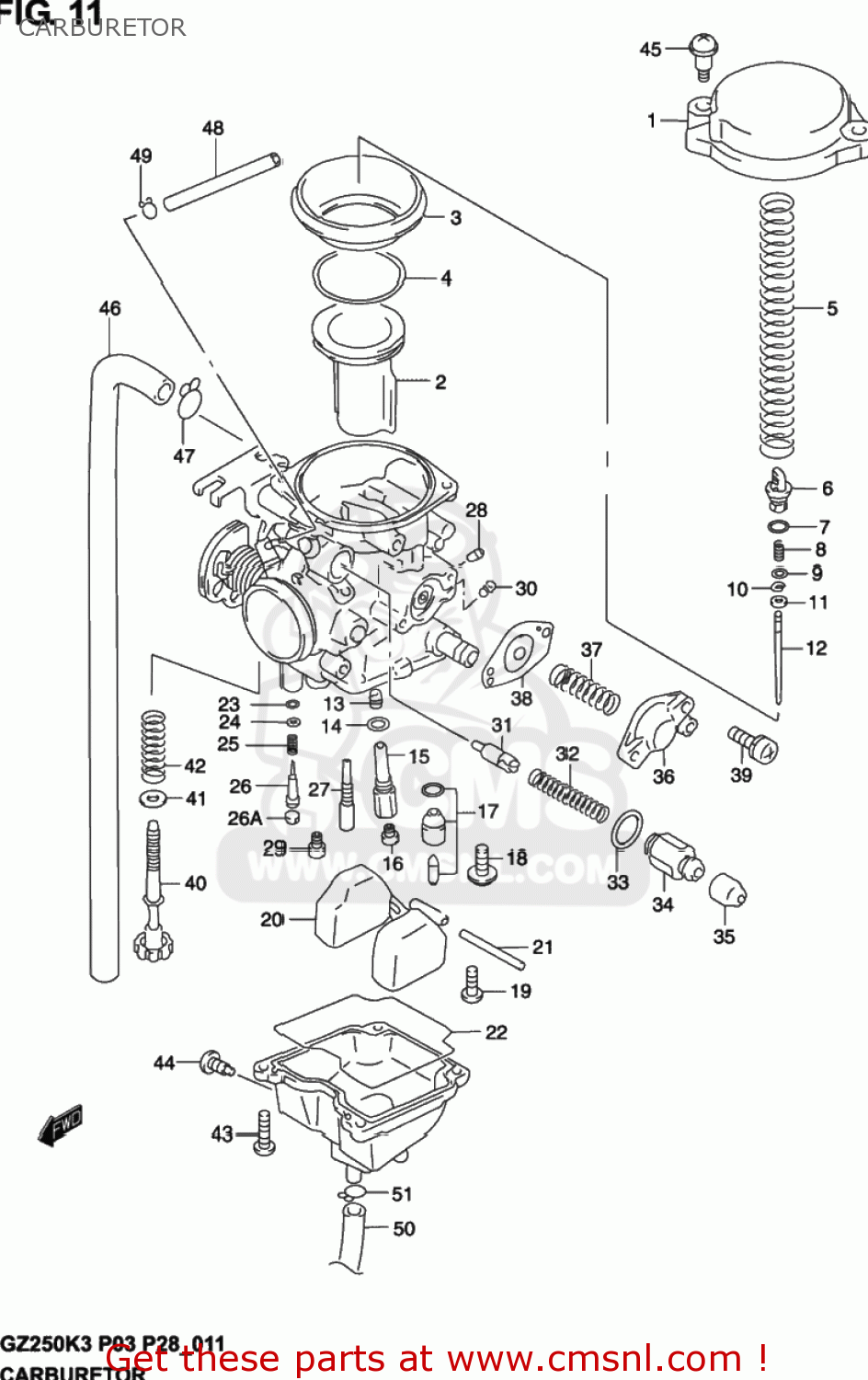

Carburetor diagram GZ250 MARAUDER 2002 (K2) USA (E03)
CARBURETOR GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320013F30
ref:
CARBURETOR ASSY
€ 0.00
1320013F40
ref:
CARBURETOR ASSY
€ 0.00
1
1350219E00
ref: 1
COVER,DIAPHRAGM
€ 47.00
2
1350113F00
ref: 2
VALVE,PISTON
€ 83.50
3
1350719E00
ref: 3
DIAPHRAGM
€ 33.50
4
1350416E00
ref: 4
RING
€ 4.00
5
1357304F00
ref: 5
SPRING
€ 11.50
6
1341833E00
ref: 6
HOLDER
€ 4.50
7
0928005004
ref: 7
O RING(D:1.9,ID:4.8)
€ 2.00
8
1348104F00
ref: 8
SPRING
€ 2.50
9
1338219E00
ref: 9
WASHER
€ 3.00
10
1339417E60
ref: 10
E RING,MULTIPLE JET NOZZLE
€ 1.50
11
1338744030
ref: 11
RING
€ 5.00
12
1338313F30
ref: 12
NEEDLE,JET
€ 0.00
13
0949400921
ref: 13
JET,NEEDLE(P-0M)
€ 44.50
14
1324643010
ref: 14
O RING
€ 4.00
15
1338513F00
ref: 15
HOLDER,JET
€ 29.00
16
0949124026
ref: 16
JET,MAIN(120)
€ 14.00
17
1337004F00
ref: 17
VALVE ASSY,NEEDLE
€ 67.50
18
1360205A10
ref: 18
SCREW
€ 4.00
19
0211204083
ref: 19
02112-0408A
SCREW
€ 2.00
20
1325004F00
ref: 20
FLOAT ASSY
€ 27.50
21
1325401010
ref: 21
PIN,FLOAT
€ 3.00
22
1325804F00
ref: 22
GASKET (NAS)
€ 9.00
23
1329529900
ref: 23
O RING,PILOT AIR SCREW
€ 4.00
24
1329129900
ref: 24
WASHER
€ 2.00
25
1326848700
ref: 25
SPRING,THROTTLE SCREW
€ 3.50
26
1327913F00
ref: 26
ADJUSTER
€ 10.50
26A
1328105A00
ref: 26A
PLUG
€ 3.50
27
0949217016
ref: 27
JET,PILOT(17.5)
€ 15.50
28
0949287002
ref: 28
JET,MAIN(87.5)
€ 16.00
29
0949152003
ref: 29
JET,MAIN(52.5)
€ 9.00
30
0949324013
ref: 30
JET,PILOT AIR(120)
€ 15.50
31
1341124D00
ref: 31
PLUNGER
€ 25.50
32
1341707F00
ref: 32
SPRING
€ 8.00
33
1327847090
ref: 33
O RING
€ 2.00
34
1341807F00
ref: 34
HOLDER,GUIDE
€ 12.50
35
1368104010
ref: 35
CAP
€ 3.00
36
1350210F00
ref: 36
COVER ASSY
€ 26.00
37
1327113F00
ref: 37
SPRING
€ 4.00
38
1348013F00
ref: 38
DIAPHRAGM ASSY
€ 21.50
39
1360104148
ref: 39
SCREW
€ 2.50
40
1326713F00
ref: 40
SCREW,ADJUST
€ 12.50
41
1328507F00
ref: 41
PACKING (NAS)
€ 3.50
42
1334282370
ref: 42
SPRING
€ 4.50
43
0211204107
ref: 43
SCREW
€ 2.00
44
1324702340
ref: 44
PLUG,DRAIN
€ 5.50
45
1324733E00
ref: 45
SCREW
€ 3.00
46
1368613F00
ref: 46
HOSE
€ 35.00
47
1367106A10
ref: 47
CLIP
€ 3.00
48
1368613F10
ref: 48
HOSE
€ 19.50
49
1367113F00
ref: 49
CLIP
€ 4.00
50
1368320B00
ref: 50
HOSE(4.5X8X650)
€ 8.00
51
0940108410
ref: 51
CLIP
€ 3.00
