STAND - REAR BRAKE
GZ250 MARAUDER 2002 (K2) USA (E03)

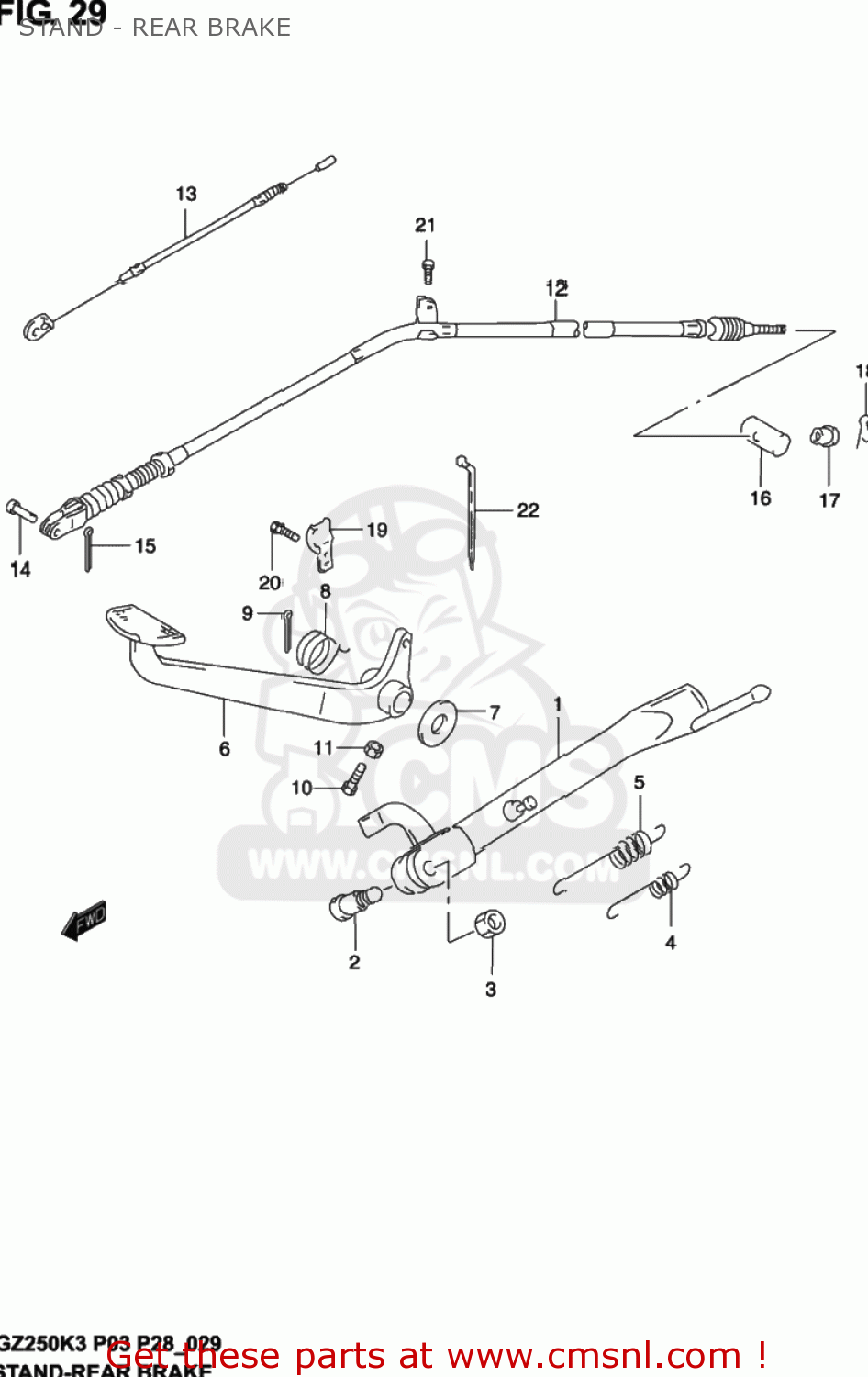

Stand - rear brake diagram GZ250 MARAUDER 2002 (K2) USA (E03)
STAND - REAR BRAKE GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231013F10
ref: 1
STAND,PROP
€ 0.00
2
0911110027
ref: 2
BOLT(10X34)
€ 3.50
3
0915910097
ref: 3
NUT
€ 5.00
4
0944314066
ref: 4
SPRING
€ 5.00
5
0944319012
ref: 5
SPRING
€ 5.50
6
4311013FA0
ref: 6
PEDAL, BRAKE
€ 65.00
7
0916016043
ref: 7
WASHER(16.5X22X1)
€ 2.00
8
0944831034
ref: 8
SPRING
€ 5.50
9
0411130258
ref: 9
04111-3030A
PIN
€ 1.50
10
0150006207
ref: 10
BOLT
€ 2.00
11
0831000067
ref: 11
NUT
€ 2.50
12
5851013F00
ref: 12
CABLE,RR BRAKE
€ 76.00
13
5883013F00
ref: 13
CABLE,STOP LAMP SWITCH
€ 30.50
14
0920005001
ref: 14
PIN(L:17.5)
€ 1.50
15
0411120158
ref: 15
04111-2015A
PIN
€ 1.50
16
0920913001
ref: 16
09209-13018
PIN
€ 2.50
17
0915006001
ref: 17
09150-06010
NUT
€ 3.50
18
0938506012
ref: 18
CLIP
€ 2.00
19
5862112F00
ref: 19
GUIDE,RR BRAKE CABLE
€ 8.00
20
0155006123
ref: 20
01550-0612A
BOLT
€ 2.50
21
0155006123
ref: 21
01550-0612A
BOLT
€ 2.50
22
0940714407
ref: 22
CLAMP(L:145)
€ 4.00
