STARTING MOTOR
GZ250 MARAUDER 2002 (K2) USA (E03)

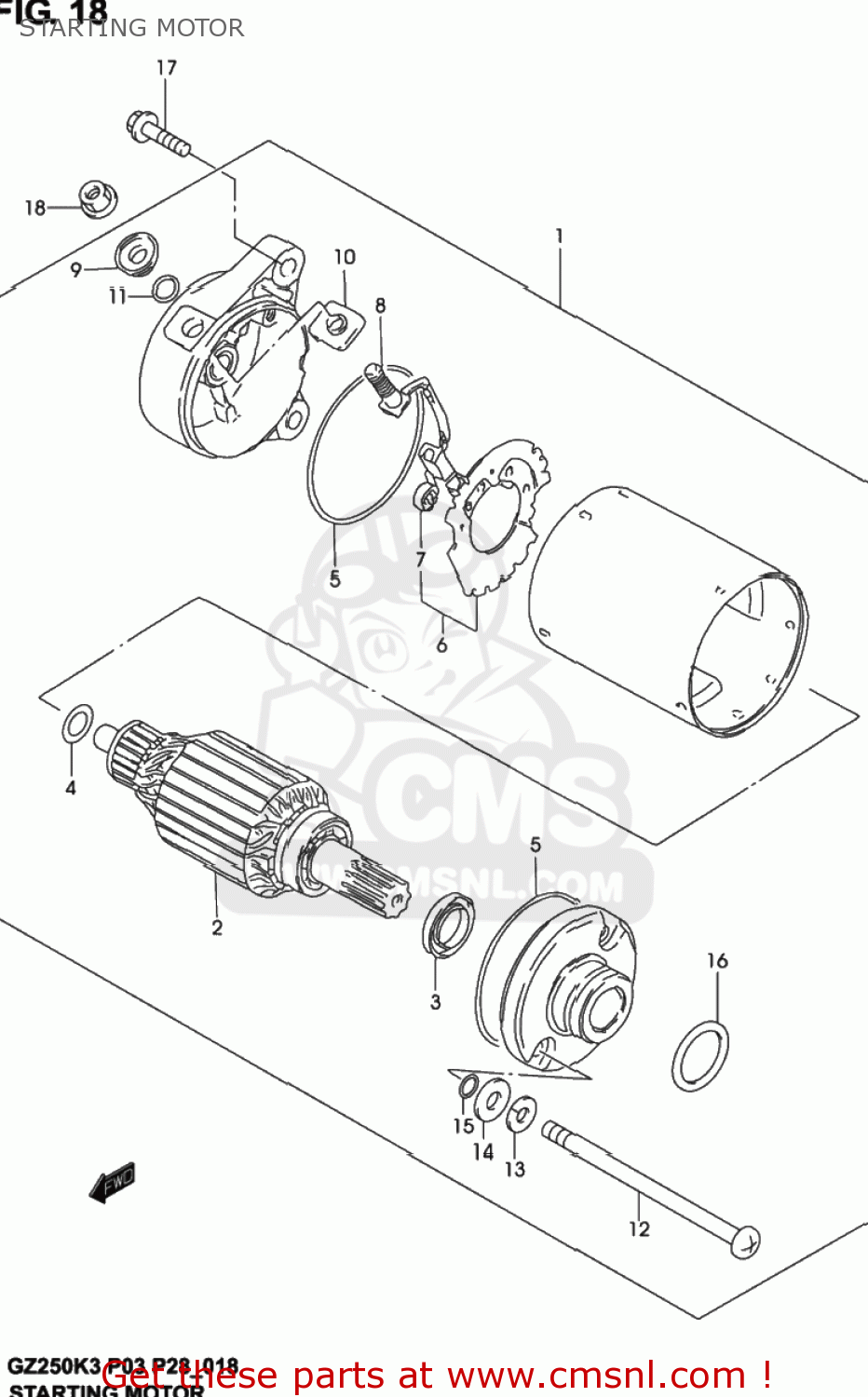

Starting motor diagram GZ250 MARAUDER 2002 (K2) USA (E03)
STARTING MOTOR GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110038300H17
ref: 1
MOTOR ASSY,STARTING
€ 707.00
2
3131149211H17
ref: 2
ARMATURE
€ 255.00
3
3115349210
ref: 3
SEAL,OIL
€ 15.00
4
3117043400
ref: 4
SHIM SET,STARTING MOTOR
€ 3.50
5
3126444110
ref: 5
O RING
€ 8.00
6
3113227A01
ref: 6
HOLDER,BRUSH
€ 47.00
7
3113565010
ref: 7
SPRING
€ 3.00
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
€ 12.50
9
3117238300
ref: 9
BUSHING
€ 4.00
10
3117138300
ref: 10
BUSH,B
€ 5.50
11
3114338300
ref: 11
O RING
€ 3.50
12
3128187402
ref: 12
BOLT
€ 11.50
13
0832101067
ref: 13
WASHER,LOCK
€ 2.50
14
3116138300
ref: 14
WASHER
€ 2.50
15
3115638300
ref: 15
O RING
€ 3.00
16
0928024003
ref: 16
O RING(D:3,ID:24.5)
€ 2.00
17
0154706253
ref: 17
01547-0625B
SCREW
€ 2.50
18
0836135068
ref: 18
08361-3506A
NUT
€ 2.00
