OIL PUMP
GZ250 MARAUDER 2002 (K2) USA (E03)

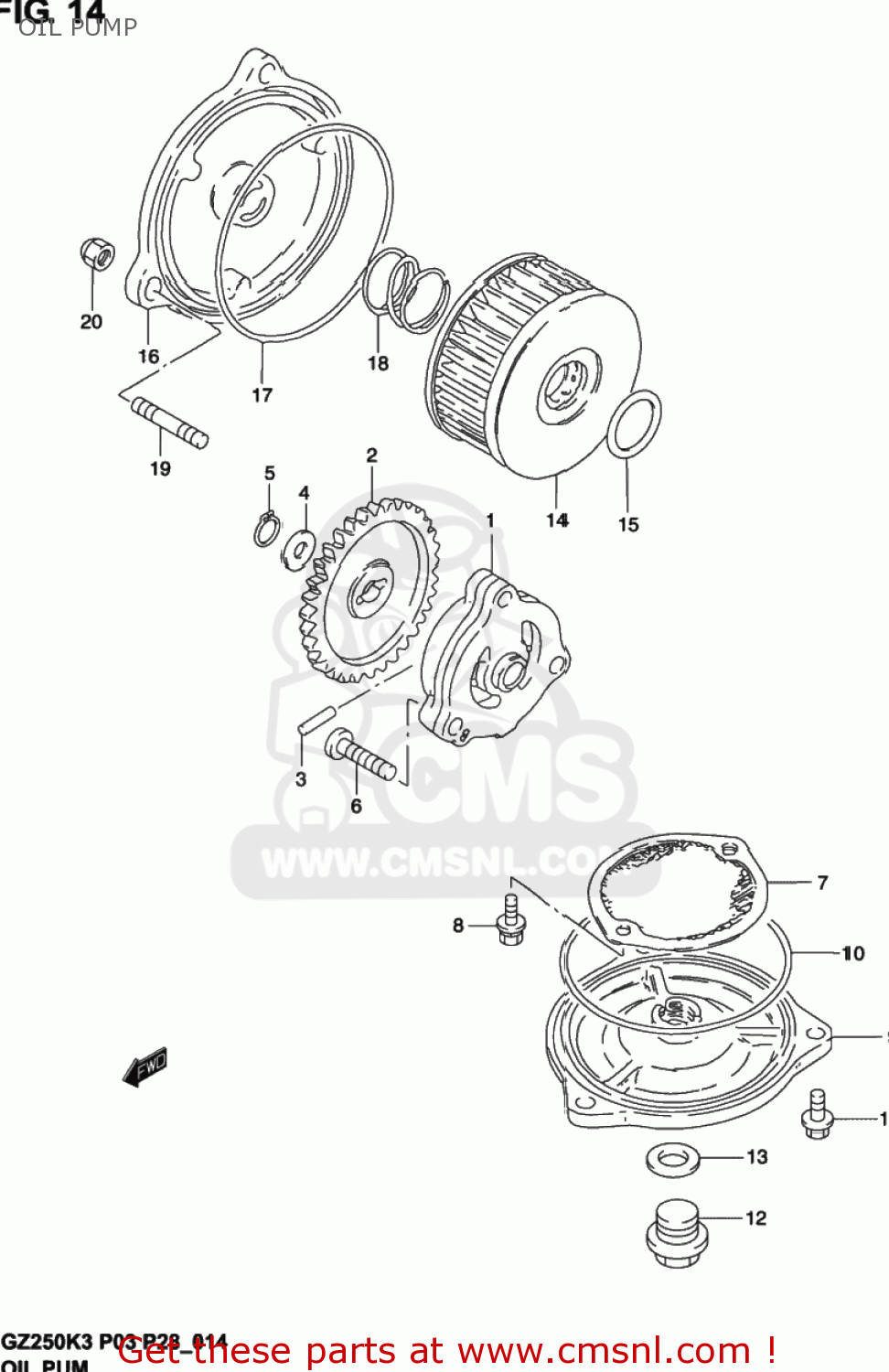

Oil pump diagram GZ250 MARAUDER 2002 (K2) USA (E03)
OIL PUMP GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038200
ref: 1
PUMP ASSY,ENGINE OIL
€ 164.50
2
1633138200
ref: 2
GEAR,OIL PUMP DRIVEN(NT:33)
€ 31.00
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0918110158
ref: 4
SHIM(10X18X0.5)
€ 2.50
5
0833131106
ref: 5
08331-3110A
CIRCLIP,10MM
€ 2.00
6
0211206253
ref: 6
02112-0625A
SCREW
€ 1.50
7
1652037400
ref: 7
STRAINER,ENGINE OIL
€ 7.00
8
0211275123
ref: 8
02112-7512A
SCREW
€ 2.50
9
1652338200
ref: 9
CAP,OIL STRAINER
€ 36.00
10
0928082001
ref: 10
O RING(D:2.4,ID:85)
€ 6.50
11
0154706203
ref: 11
01547-0620B
SCREW
€ 2.50
12
0924714026
ref: 12
PLUG(14X12)
€ 3.50
13
0916814002
ref: 13
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
14
1651038240
ref: 14
FILTER ASSY,ENGINE OIL
€ 7.50
15
0928015007
ref: 15
O RING(D:2.4,ID:15.8)
€ 2.00
16
1651238220
ref: 16
CAP,OIL FILTER
€ 30.00
17
0928072001
ref: 17
O RING(D:2.4,ID:73)
€ 5.00
18
0944021006
ref: 18
SPRING
€ 2.50
19
0910806128
ref: 19
BOLT,STUD
€ 1.50
20
0831310067
ref: 20
NUT
€ 2.00
