REAR COMBINATION LAMP
GZ250 MARAUDER 2002 (K2) USA (E03)

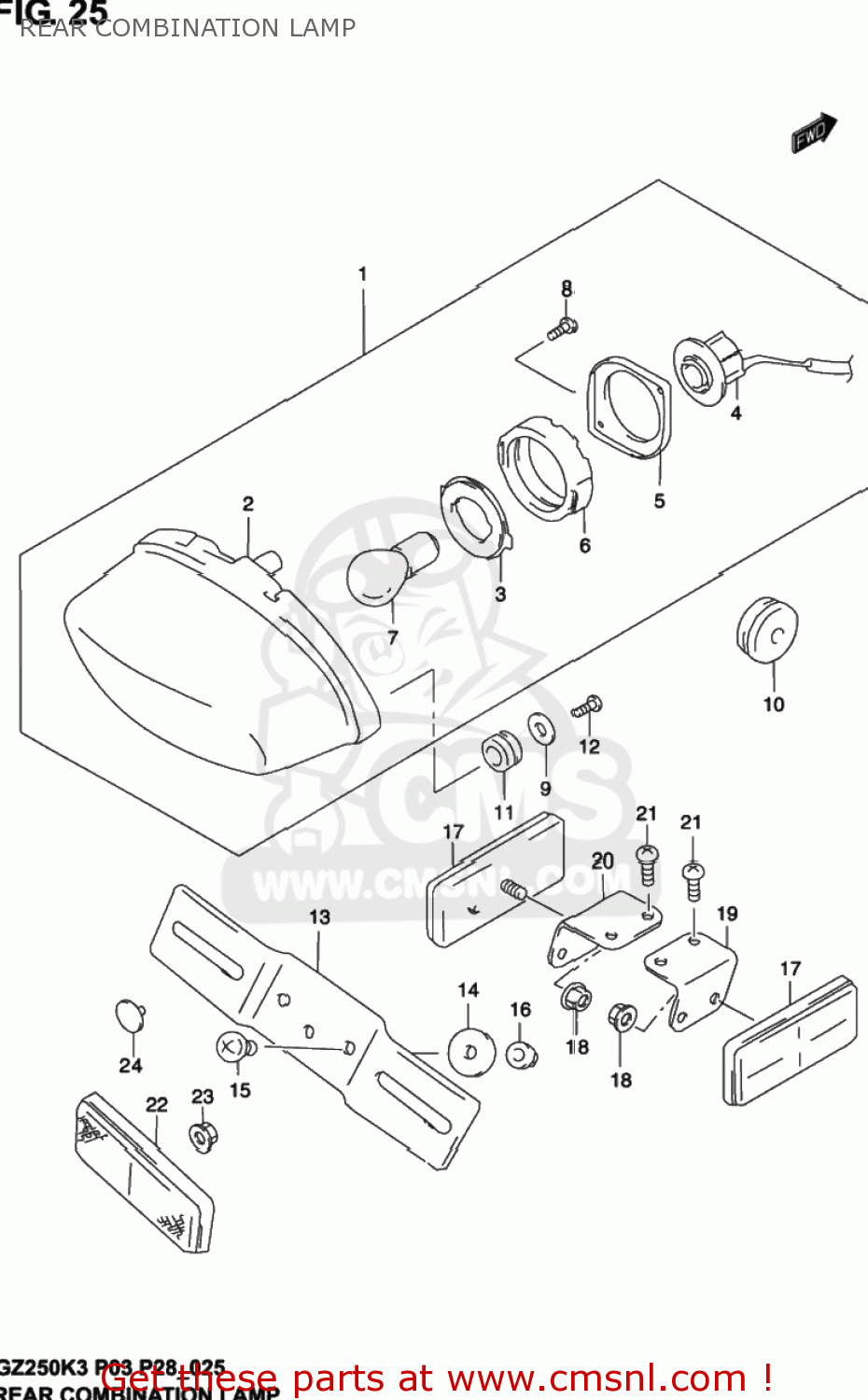

Rear combination lamp diagram GZ250 MARAUDER 2002 (K2) USA (E03)
REAR COMBINATION LAMP GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571012F30
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
2
3574042E11
ref: 2
LAMP UNIT
€ 92.00
3
3571648B21
ref: 3
PLATE NO.1
€ 25.00
4
3571812F00
ref: 4
SOCKET & CORD
€ 55.50
5
3573648B21
ref: 5
PLATE NO.2
€ 16.50
6
3576548B21
ref: 6
CUSHION
€ 10.50
7
0947112083
ref: 7
09471-12128
BULB(12V21/5W)
€ 6.00
8
0321104123
ref: 8
03211-0412A
SCREW
€ 1.50
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
€ 2.00
10
0930808007
ref: 10
GROMMET
€ 2.00
11
0932010015
ref: 11
CUSHION
€ 2.50
12
0354105123
ref: 12
03541-0512A
SCREW
€ 2.00
13
3592713F00
ref: 13
BRACKET,LICENSE PLATE
€ 0.00
14
0916006088
ref: 14
WASHER(6.5X20X1.6)
€ 2.00
15
0214206123
ref: 15
02142-0612A
SCREW 6X12
€ 2.00
16
0831610063
ref: 16
08316-1006B
NUT
€ 2.50
17
3597009EF0
ref: 17
35970-07F01
REFLECTOR REAR
€ 20.50
18
0831610053
ref: 18
08316-1005A
NUT
€ 2.50
19
3597413F00
ref: 19
BRACKET,RR SIDE RR,L
€ 0.00
20
3597513F00
ref: 20
BRACKET,RR SIDE RR,R
€ 0.00
21
0214206083
ref: 21
02142-0608A
SCREW
€ 1.50
22
3597009EF0
ref: 22
35970-07F01
REFLECTOR REAR
€ 20.50
23
0831610053
ref: 23
08316-1005A
NUT
€ 2.50
24
0932106026
ref: 24
CUSHION
€ 3.50
