SEAT
GZ250 MARAUDER 2002 (K2) USA (E03)

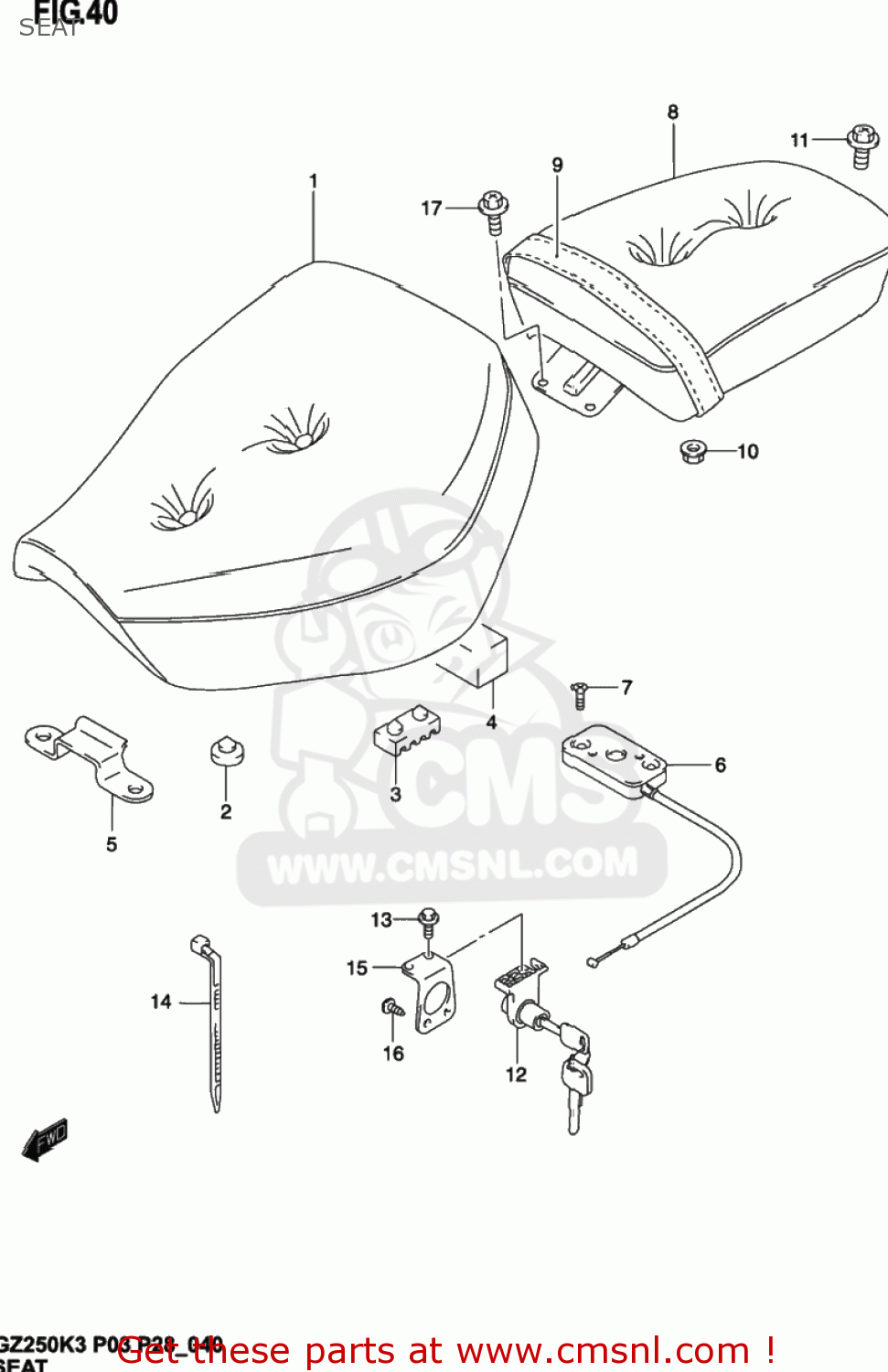

Seat diagram GZ250 MARAUDER 2002 (K2) USA (E03)
SEAT GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510012FA0K9C
ref: 1
45100-0AE00-K9C
SEAT ASSY
€ 143.50
2
4514812FA0
ref: 2
45148-36C00
CUSHION,FRONT
€ 4.00
3
4514712FA0
ref: 3
CUSHION,RR
€ 3.50
4
4514912FA0
ref: 4
CUSHION, TOOL
€ 3.00
5
4511912F00
ref: 5
PLATE,FR SEAT HOOK
€ 5.50
6
4522012F00
ref: 6
BRACKET,SEAT SUPPORT
€ 34.00
7
0212206253
ref: 7
02122-0625A
SCREW
€ 2.00
8
4530012FA0K9C
ref: 8
45300-0AE00-K9C
SEAT ASSY PILLI
€ 163.00
9
4518012FA0T65
ref: 9
45180-12F00-T65
BAND, SEAT
€ 32.50
10
0831610065
ref: 10
NUT
€ 0.50
11
0910608140
ref: 11
BOLT(8X16)
€ 6.00
12
9570031840
ref: 12
95700-31841
LOCK SET,SEAT
€ 57.00
13
0154705103
ref: 13
01547-0510B
BOLT
€ 2.50
14
0940722403
ref: 14
CLAMP(L:220)
€ 2.00
15
4528903F00
ref: 15
BRACKET,SEAT LOCK
€ 6.00
16
0314114123
ref: 16
03141-1412B
SCREW
€ 2.00
17
0910606061
ref: 17
BOLT(6X12)
€ 6.00
