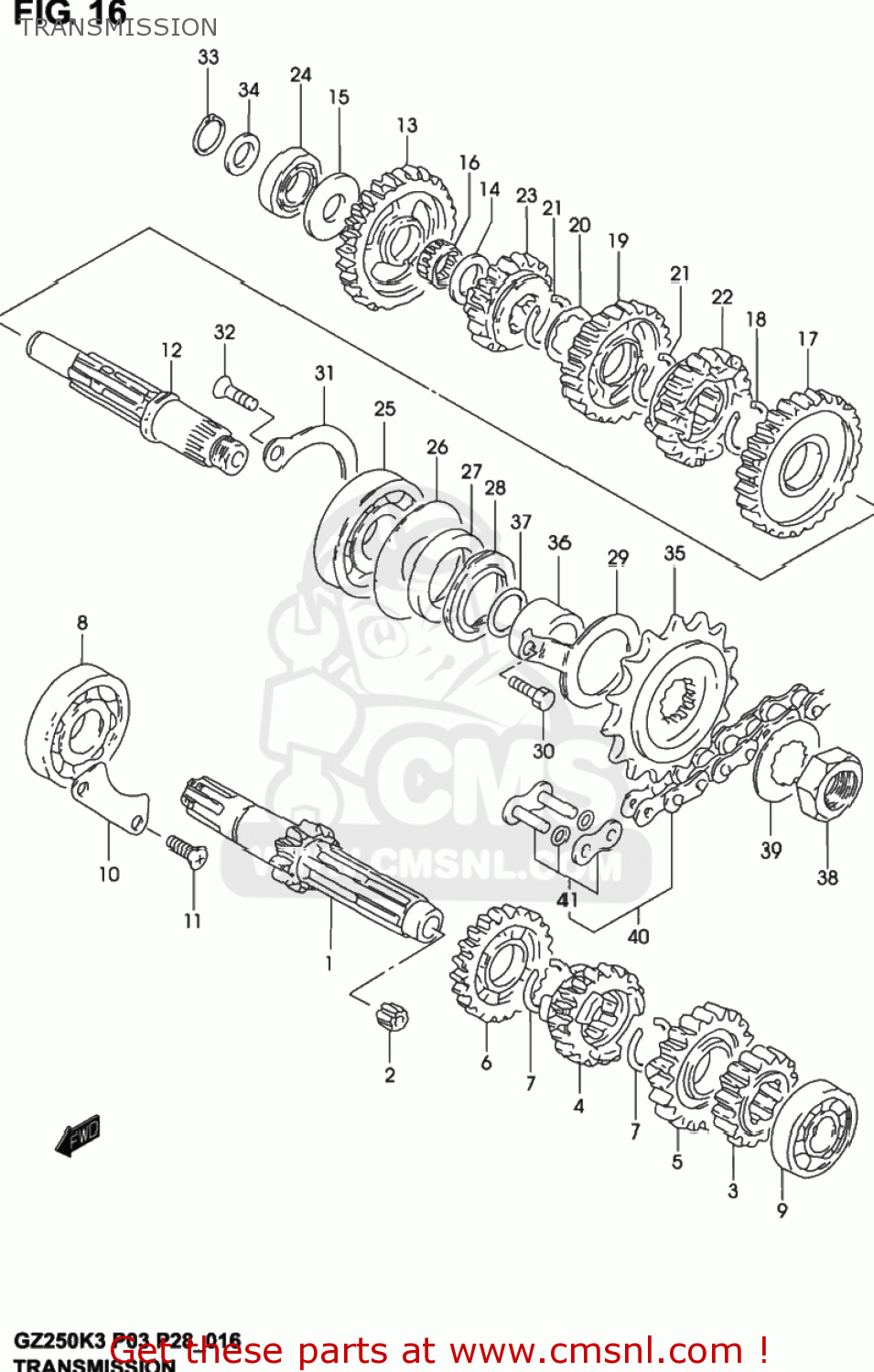

TRANSMISSION

ref

part #

description

quantity

1

2412038202
ref: 1
24120-38203

SHAFT,COUNTER (NT:11)

€ 105.00

2

2412538201
ref: 2

BUSH

€ 3.50

3

2422132412
ref: 3

GEAR,2ND DRIVE(NT:16)

€ 89.50

4

2423138201
ref: 4

GEAR,3RD DRIVE(NT:19)

€ 95.50

5

2424132401
ref: 5

GEAR,4TH DRIVE(NT:20)

€ 57.00

6

2425132420
ref: 6

GEAR,5TH DRIVE(NT:22)

€ 82.50

7

0938022006
ref: 7

CIRCLIP

€ 3.00

8

0926222014
ref: 8
09262-22028

BEARING

€ 59.50

9

0926217046
ref: 9

BEARING(17X40X12)

€ 23.00

10

2474138200
ref: 10

RETAINER,CNTR SHAFT BEARING

€ 4.50

11

0211206123
ref: 11
02112-0612A

SCREW

€ 1.50

12

2413038301
ref: 12

SHAFT,DRIVE

€ 164.50

13

2431132401
ref: 13

GEAR,1ST DRIVEN(NT:29)

€ 89.50

14

0918117195
ref: 14

SHIM(17X28X1)

€ 3.00

15

0821117363
ref: 15

WASHER

€ 2.00

16

0926317004
ref: 16

BEARING(17X21X9.8)

€ 7.00

17

2432032411
ref: 17

GEAR,2ND DRIVEN(NT:27)

€ 87.50

18

0938022006
ref: 18

CIRCLIP

€ 3.00

19

2433038202
ref: 19

GEAR,3RD DRIVEN(NT:24)

€ 74.00

20

0916722011
ref: 20

WASHER,LOCK

€ 3.00

21

0938022006
ref: 21

CIRCLIP

€ 3.00

22

2434138201
ref: 22

GEAR,4TH DRIVEN(NT:20)

€ 92.50

23

2435138201
ref: 23

GEAR,5TH DRIVEN(NT:18)

€ 84.50

24

0926417001
ref: 24

BEARING(17X36X12)

€ 27.00

25

0926222013
ref: 25

BEARING(22X56X16)

€ 58.00

26

0916035007
ref: 26

WASHER(35X55X1)

€ 2.50

27

0928230003
ref: 27
09282-30004

OIL SEAL (30X43X5)

€ 9.00

28

0928330041
ref: 28

SEAL,OIL(30X43X7)

€ 10.50

29

2475138201
ref: 29

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

30

0150006123
ref: 30
01500-0612A

BOLT

€ 2.00

31

2475232400
ref: 31

RETAINER,DRIVE SHAFT BEARING

€ 3.50

32

0212206123
ref: 32
02122-0612A

SCREW

€ 3.00

33

0833131176
ref: 33
08331-3117A

CIRCLIP,17MM

€ 2.00

34

0918117139
ref: 34

SHIM(17X24X1)

€ 3.00

35

2751025D00
ref: 35

SPROCKET,ENGINE(NT:15)

€ 37.00

36

2753138300
ref: 36

SPACER

€ 32.50

37

0928021008
ref: 37

O RING(D:2.5,ID:21)

€ 2.00

38

0914018008
ref: 38

NUT

€ 4.50

39

0916722012
ref: 39

WASHER,LOCK

€ 1.50

40

2760014A10110
ref: 40

CHAIN(DID520VC5,110LE)

€ 107.50

41

2762014A10
ref: 41

JOINT SET,CHAIN

€ 7.50
