HEADLAMP HOUSING (MODEL K3)

GZ250 MARAUDER 2002 (K2) USA (E03)

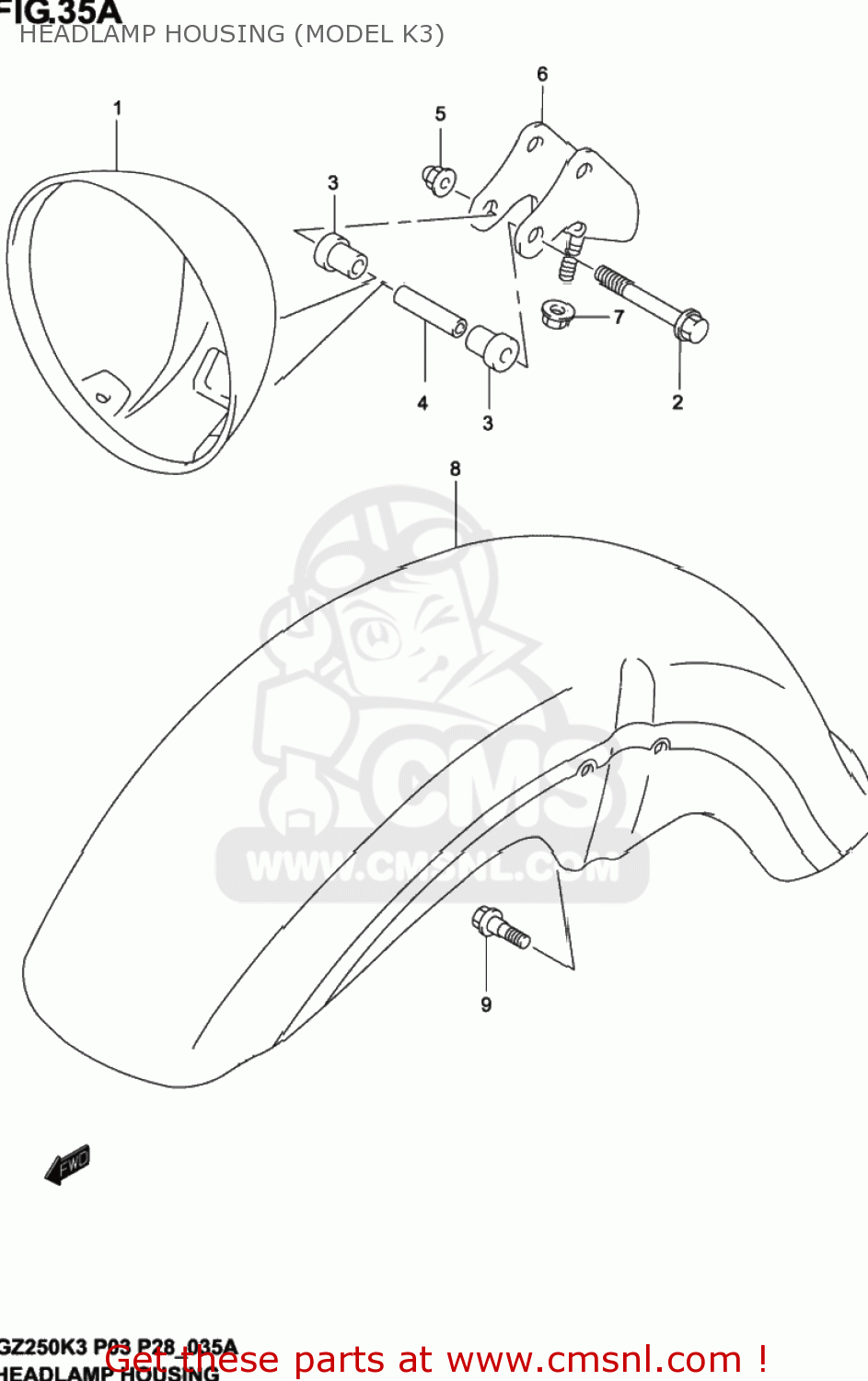

Headlamp housing (model k3) diagram GZ250 MARAUDER 2002 (K2) USA (E03)

HEADLAMP HOUSING (MODEL K3) GZ250 MARAUDER 2002 (K2) USA (E03)

HEADLAMP HOUSING (MODEL K3) GZ250 MARAUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181112FA0
ref: 1

HEADLAMPHOUSIN

€ 138.00

2

0154706507
ref: 2

BOLT

€ 2.50

3

5182712F00
ref: 3

CUSHION,HEADLAMP HOUSING

€ 31.50

4

0918006279
ref: 4

SPACER(6.5X9X38.3)

€ 4.50

5

0831320067
ref: 5

NUT

€ 2.00

6

5185012F01
ref: 6

BRACKET,HEADLAMP HOUSING

€ 66.00

7

0831931103
ref: 7
08319-3110A

NUT

€ 3.00

8-1

5311112F01Y7L
ref: 8-1

FENDER,FR

€ 43.00

8-2

5311112F01Y7H
ref: 8-2

FENDER GZ125/K

€ 160.50

9

0911106066
ref: 9

BOLT(6X16)

€ 2.50
