CRANKCASE
GZ250 MARAUDER 2002 (K2) USA (E03)

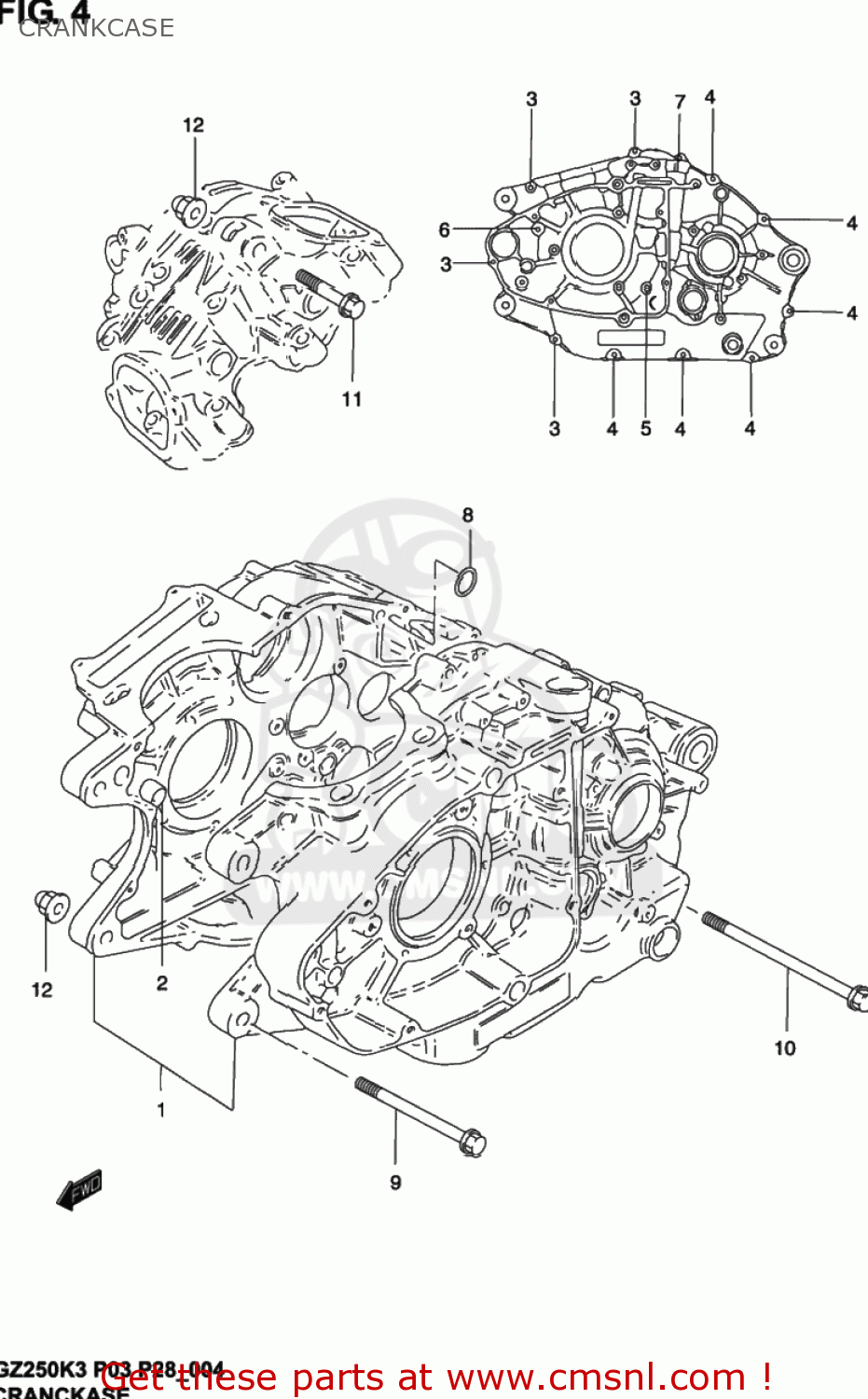

Crankcase diagram GZ250 MARAUDER 2002 (K2) USA (E03)
CRANKCASE GZ250 MARAUDER 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130013F01
ref: 1-1
CRANKCASE SET MODEL K3
€ 0.00
1-2
1130013F01
ref: 1-2
CRANKCASE SET MODEL K3
€ 0.00
2
0421113189
ref: 2
PIN
€ 2.50
3
0154706357
ref: 3
BOLT
€ 2.50
4
0154706457
ref: 4
BOLT
€ 2.50
5
0154706553
ref: 5
01547-0655B
BOLT
€ 3.00
6
0154706603
ref: 6
01547-0660B
BOLT
€ 3.50
7
0154706707
ref: 7
BOLT
€ 2.50
8
0928010016
ref: 8
O RING(D:1.9,ID:9.8)
€ 3.50
9
0910308037
ref: 9
BOLT(8X67)
€ 6.50
10
0910308114
ref: 10
BOLT(8X100)
€ 7.50
11
0910308081
ref: 11
BOLT(8X50)
€ 3.50
12
0831931088
ref: 12
08319-3108A
NUT
€ 2.50
