CARBURETOR
LS650 BOULEVARD S40 2005 (K5) USA (E03)

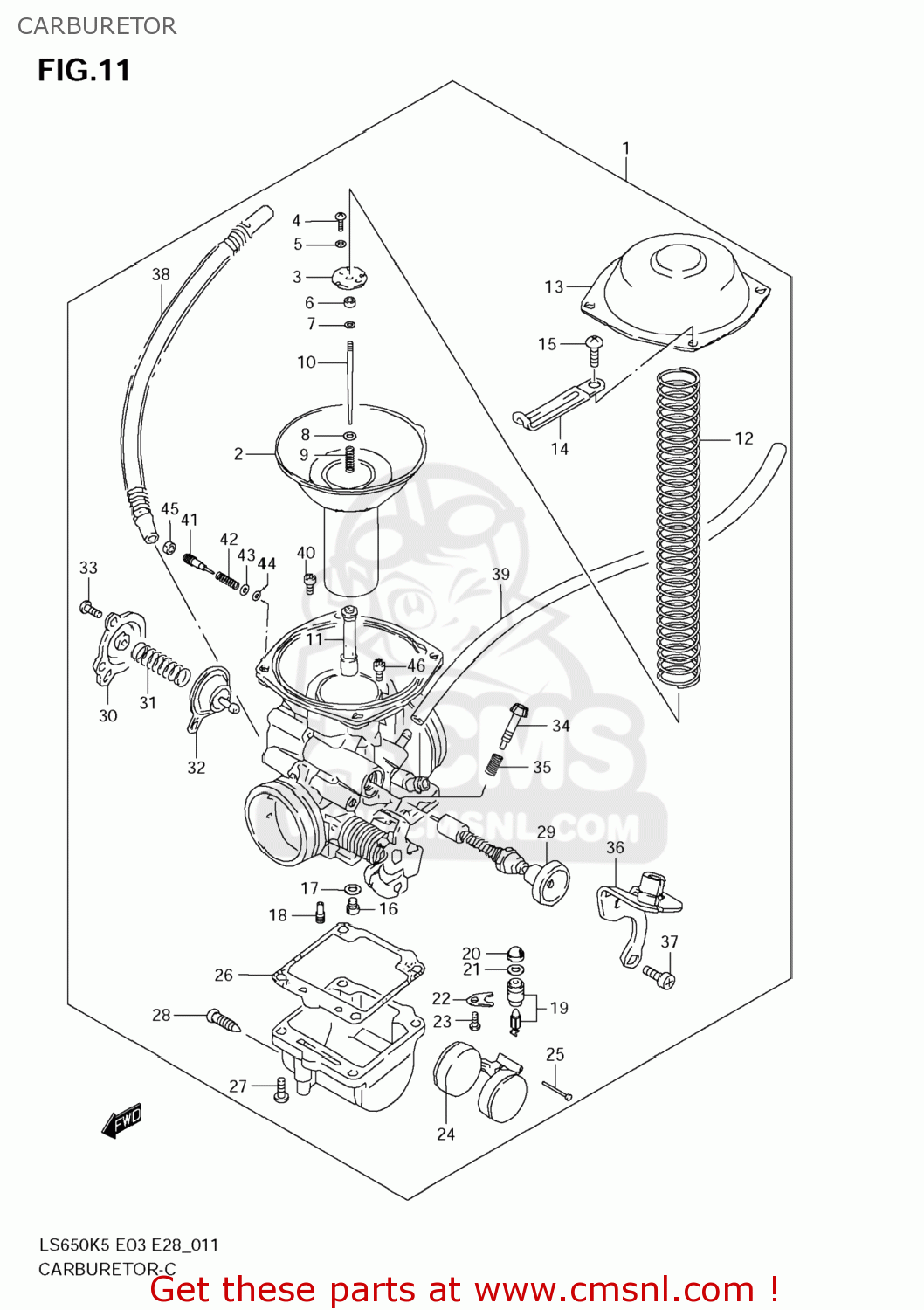

Carburetor diagram LS650 BOULEVARD S40 2005 (K5) USA (E03)
CARBURETOR LS650 BOULEVARD S40 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320024C90
ref: 1-1
CARBURETOR ASSY
€ 0.00
1-2
1320024CA0
ref: 1-2
CARBURETOR ASSY
€ 0.00
1-3
1320024C41
ref: 1-3
CARBURETOR ASSY
€ 650.00
1-4
1320024C51
ref: 1-4
CARBURETOR ASSY
€ 276.00
2
1350024B40
ref: 2
DIAPHRAGM ASSY
€ 136.00
3
1338937400
ref: 3
PLATE
€ 5.50
4
0211203063
ref: 4
02112-0306B
SCREW
€ 2.00
5
083212103B
ref: 5
WASHER,LOCK
€ 1.50
6
1338744030
ref: 6
RING
€ 5.00
7
1339431210
ref: 7
CLIP,NEEDLE
€ 3.50
8
1338244030
ref: 8
WASHER
€ 3.50
9
1338844030
ref: 9
SPRING
€ 6.00
10
1338324C40
ref: 10
NEEDLE,JET(5C17)
€ 11.50
11
0949400861
ref: 11
JET,NEEDLE(X-7M)
€ 0.00
12
1350324B00
ref: 12
SPRING
€ 11.00
13
1350237400
ref: 13
COVER
€ 18.00
14
0940406433
ref: 14
CLAMP(L:80)
€ 3.00
15
021120510B
ref: 15
SCREW
€ 2.00
16
0949129013
ref: 16
JET,MAIN(145)
€ 10.50
17
1338203110
ref: 17
WASHER
€ 2.50
18
0949252010
ref: 18
JET,PILOT(52.5)
€ 12.50
19
1337024C80
ref: 19
VALVE ASSY,NEEDLE
€ 66.50
20
1337619F00
ref: 20
FILTER
€ 6.50
21
1337435C00
ref: 21
O RING,NEEDLE VALVE SEAT
€ 6.00
22
1337339110
ref: 22
PLATE
€ 6.50
23
0211204063
ref: 23
02112-0406B
SCREW 4X6
€ 2.00
24
1325037400
ref: 24
FLOAT
€ 26.00
25
1325492311
ref: 25
PIN,FLOAT
€ 2.00
26
1325138300
ref: 26
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
27
021120516B
ref: 27
SCREW
€ 2.00
28
1324713A00
ref: 28
13247-02340
SCREW,DRAIN
€ 5.50
29
1341124C00
ref: 29
PLUNGER ASSY
€ 42.00
30
1348438A10
ref: 30
COVER
€ 16.00
31
1348124B00
ref: 31
SPRING
€ 3.00
32
1348005A10
ref: 32
DIAPHRAGM ASSY
€ 54.50
33
021120410B
ref: 33
SCREW
€ 1.00
34
1326725D00
ref: 34
ADJUSTER
€ 9.00
35
1327193011
ref: 35
SPRING
€ 4.50
36
1362124B01
ref: 36
BRACKET ASSY
€ 32.50
37
021120510B
ref: 37
SCREW
€ 2.00
38
1331824C00
ref: 38
HOSE ASSY
€ 18.50
39
0935250823600
ref: 39
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
40
0949146005
ref: 40
JET,PILOT(230)
€ 12.00
41
1326937400
ref: 41
SCREW,AIR
€ 9.50
42
1326847070
ref: 42
SPRING
€ 5.00
43
1329129900
ref: 43
WASHER
€ 2.00
44
1329529900
ref: 44
O RING,PILOT AIR SCREW
€ 4.00
45
1328105A00
ref: 45
PLUG
€ 3.50
46
0949145002
ref: 46
JET(45)
€ 9.50
