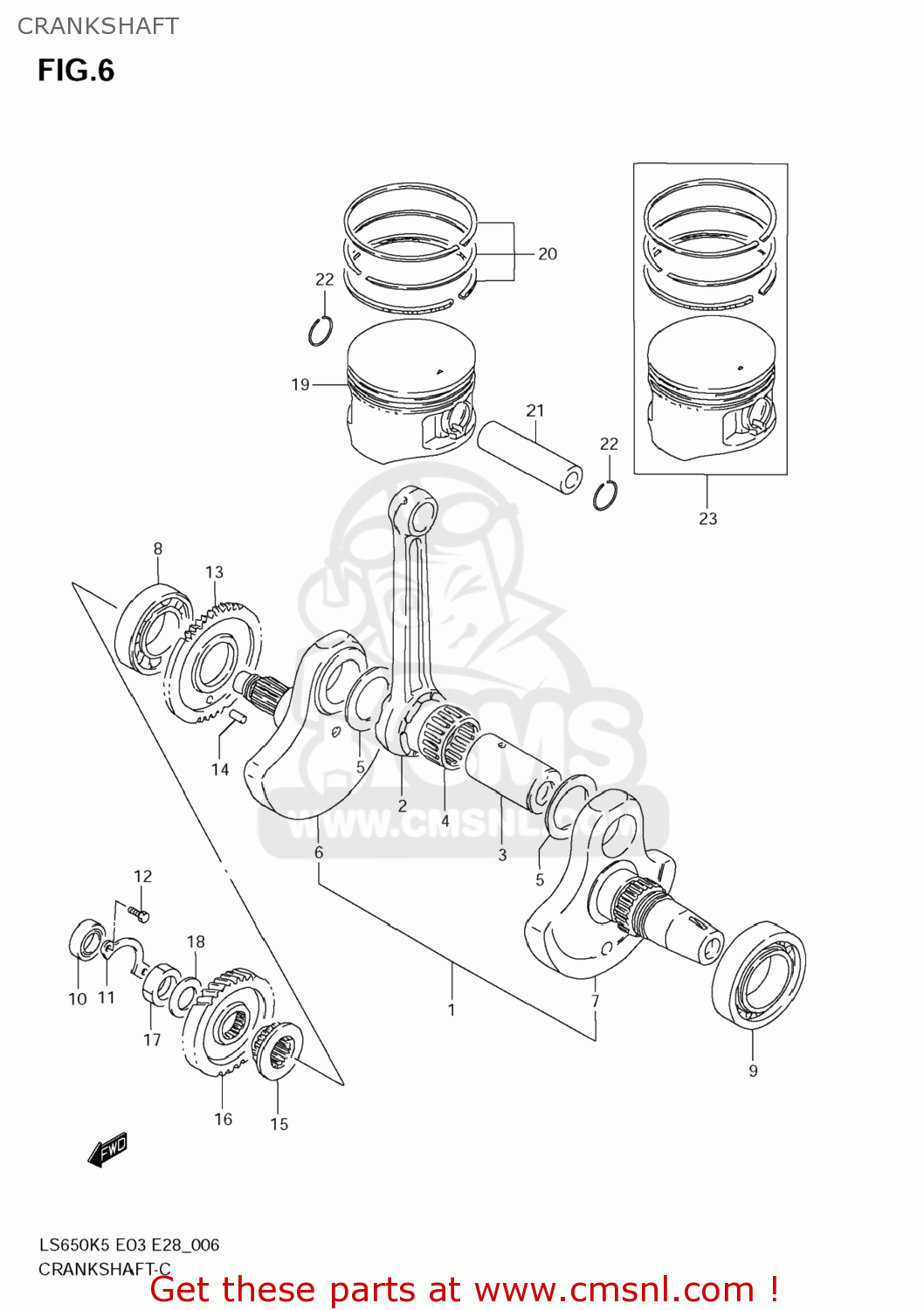

CRANKSHAFT

ref

part #

description

quantity

1

1220024B05
ref: 1

CRANKSHAFT ASSY

€ 972.00

2

1216124B010C0
ref: 2

ROD,CONNECTING

€ 109.50

3

1221024B010A0
ref: 3

PIN,CRANK

€ 47.50

4

09263370040B0
ref: 4

BEARING(37X47X25)

€ 33.00

5

0916037006
ref: 5

WASHER(37X55X1)

€ 8.50

6

1222124B02
ref: 6

CRANKSHAFT,R

€ 331.00

7

1226124B02
ref: 7

CRANKSHAFT,L

€ 198.50

8

0926235038
ref: 8

BEARING(35X72X17)

€ 38.00

9

0926440002
ref: 9

BEARING(40X80X18)

€ 93.00

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

1254824B00
ref: 11

RETAINER,CRANKSHAFT OIL SEAL,R

€ 2.50

12

015000508B
ref: 12

BOLT

€ 2.00

13

1266124B00
ref: 13

GEAR,CRANK BALANCER DRIVE

€ 106.00

14

0422108149
ref: 14

PIN

€ 2.50

15

1273124B00
ref: 15

SPROCKET,CAM CHAIN DRIVE

€ 44.50

16

2111124B10
ref: 16

GEAR,PRIMARY DRIVE

€ 77.00

17

0914020008
ref: 17
09140-20013

NUT (20MM)

€ 4.00

18

0916420003
ref: 18

WASHER

€ 2.50

19

1211124B010F0
ref: 19

PISTON

€ 83.00

20

1214014A32
ref: 20

RING SET,PISTON

€ 51.00

21

1215114A01
ref: 21

PIN,PISTON

€ 18.00

22

0938123003
ref: 22

CIRCLIP

€ 1.50

23

1210024B00050
ref: 23

PISTON SET(OS:0.5)

€ 122.00
