HANDLEBAR

LS650 BOULEVARD S40 2005 (K5) USA (E03)

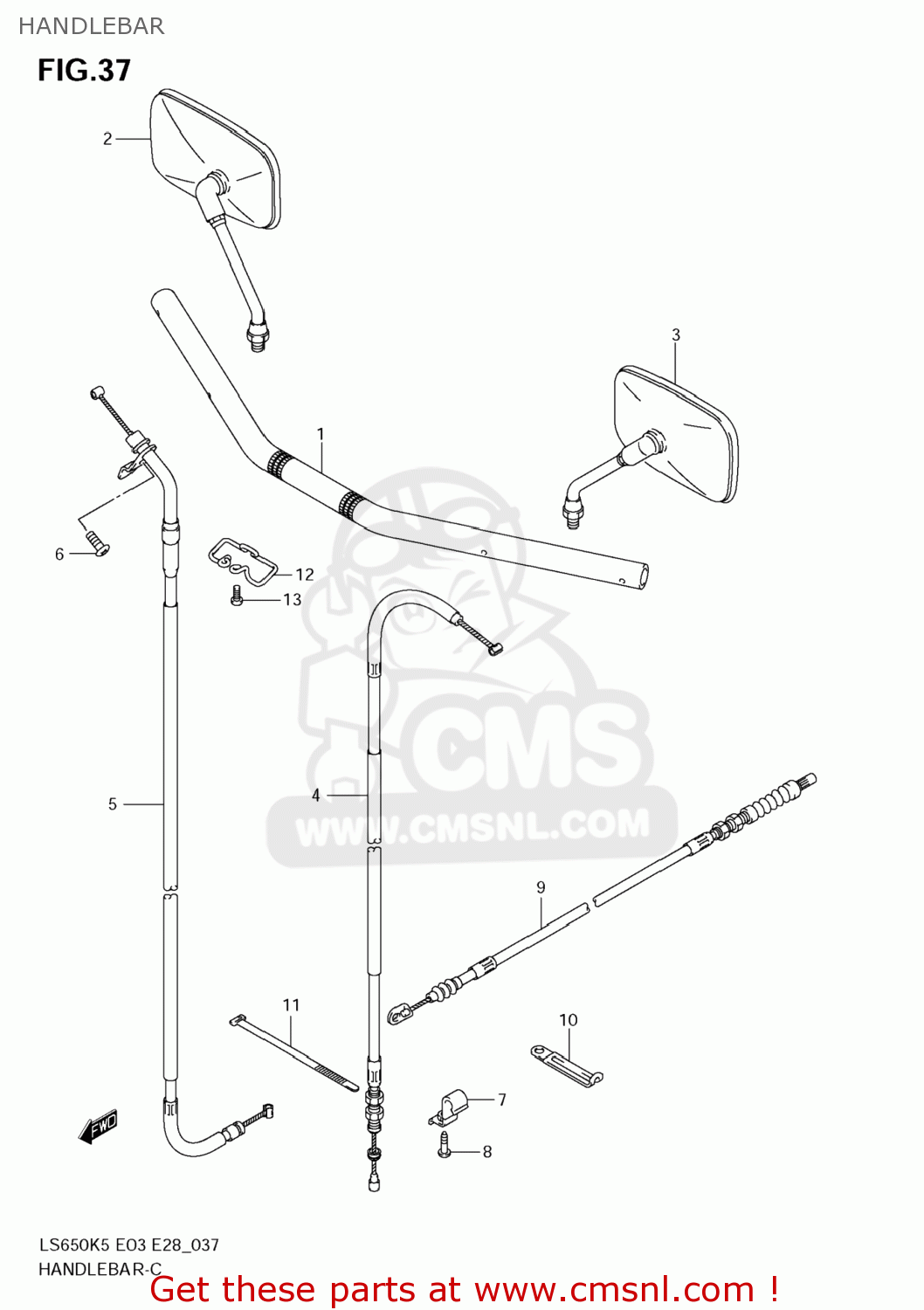

Handlebar diagram LS650 BOULEVARD S40 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

5611024C00
ref: 1

HANDLEBAR

€ 0.00

2-1

5650045C40
ref: 2-1
56500-45C41

MIRROR ASSY, REAR VIEW RH

€ 28.50

2-2

5650045C41
ref: 2-2

MIRROR ASSY,RR VIEW,R

€ 28.50

3-1

5660045C40
ref: 3-1

MIRROR ASSY,RH

€ 103.50

3-2

5660045C41
ref: 3-2

MIRROR ASSY,RR VIEW,L

€ 103.50

5820024C00
ref: 4

CABLE ASSY,CLUTCH

€ 36.00

5830024C00
ref: 5

CABLE ASSY,THROTTLE

€ 38.50

0214205087
ref: 6

SCREW

€ 2.00

5862024B00
ref: 7

CLAMP,STOP LAMP SWITCH CABLE

€ 4.50

015700616B
ref: 8

BOLT

€ 2.50

5883024B01
ref: 9

CABLE,STOP LAMP SWITCH

€ 24.00

0940408418
ref: 10

CLAMP(L:65)

€ 3.50

0940714407
ref: 11

CLAMP(L:145)

€ 4.00

5862124C00
ref: 12

GUIDE,CABLE

€ 0.00

0913905033
ref: 13

SCREW(5X10)

€ 2.00

HANDLEBAR

all assemblies
