GEAR SHIFTING

LS650 BOULEVARD S40 2005 (K5) USA (E03)

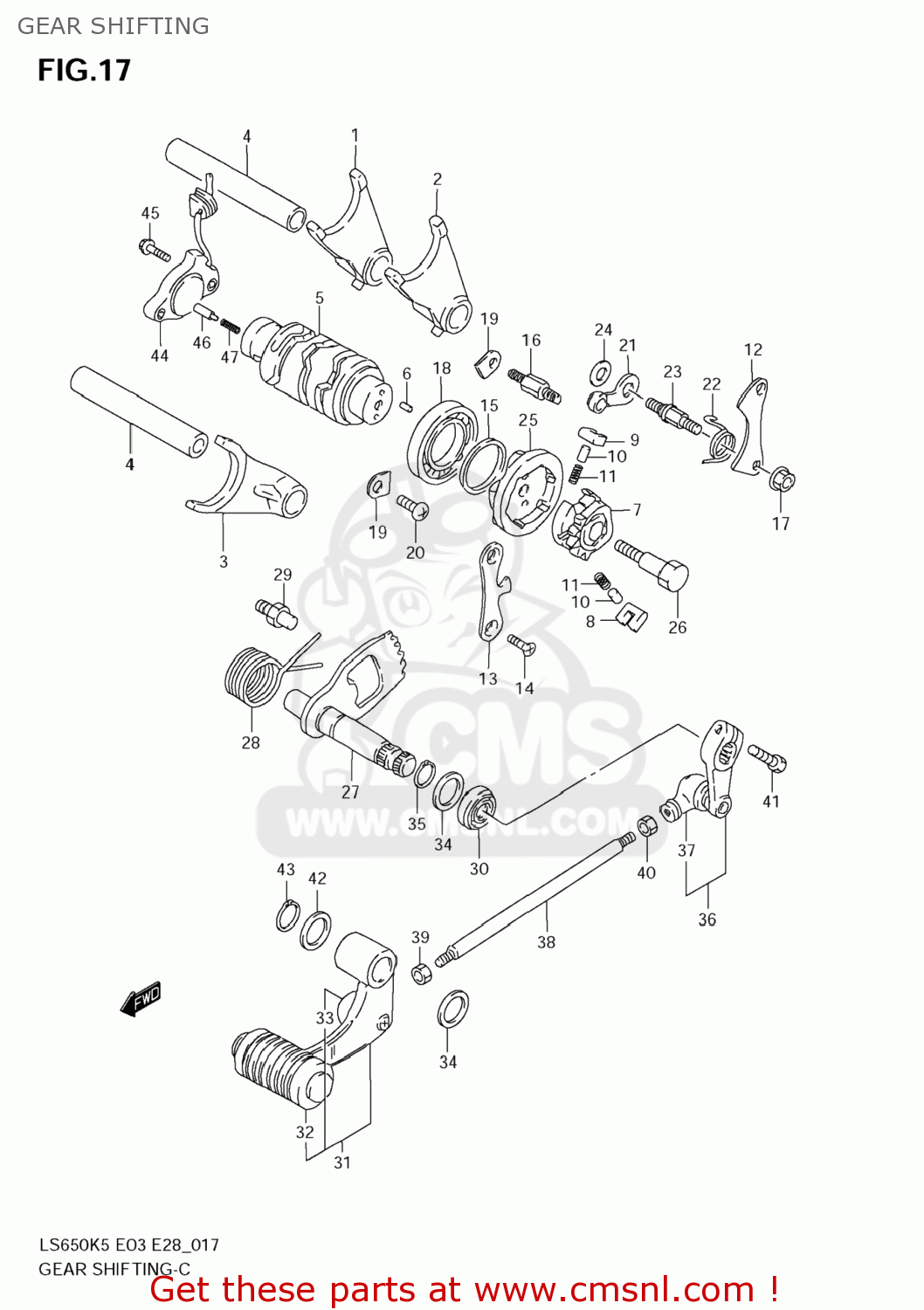

Gear shifting diagram LS650 BOULEVARD S40 2005 (K5) USA (E03)

GEAR SHIFTING LS650 BOULEVARD S40 2005 (K5) USA (E03)
GEAR SHIFTING LS650 BOULEVARD S40 2005 (K5) USA (E03)
GEAR SHIFTING LS650 BOULEVARD S40 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2521124B10
ref: 1
FORK,GEAR SHIFT NO.1
2521124B10
€ 72.00
2
2522124B10
ref: 2
FORK,GEAR SHIFT NO.2
2522124B10
€ 63.50
3
2523124B10
ref: 3
FORK,GEAR SHIFT NO.3
€ 59.50
4
2541124B00
ref: 4
SHAFT,GEAR SHIFT FORK
2541124B00
€ 19.00
5
2531024B11
ref: 5
CAM,GEAR SHIFT
2531024B11
€ 114.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2532231310
ref: 7
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533138A00
ref: 12
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
13
2534138A00
ref: 13
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
14
021220612A
ref: 14
SCREW
021220612A
€ 3.00
15
0916025059
ref: 15
WASHER(25X32X3)
0916025059
€ 5.00
16
2533224B01
ref: 16
BOSS,SHIFT PAWL LIFTER
€ 7.50
17
083161006A
ref: 17
NUT
083161006A
€ 2.50
18
0926225006
ref: 18
BEARING(25X47X8)
0926225006
€ 24.00
19
2474121A00
ref: 19
RETAINER
2474121A00
€ 2.00
20
021120612A
ref: 20
SCREW
021120612A
€ 1.50
21
2535024B00
ref: 21
STOPPER,GEAR SHIFT CAM
2535024B00
€ 8.00
22
0944817021
ref: 22
SPRING
0944817021
€ 5.00
23
2535612C00
ref: 23
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
24
0821106141
ref: 24
WASHER
0821106141
€ 2.50
25
2538038A02
ref: 25
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
26
2531238A00
ref: 26
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
27
2551024B01
ref: 27
SHAFT,GEAR SHIFT
€ 66.00
28
0944426013
ref: 28
SPRING
0944426013
€ 3.50
29
2567101011
ref: 29
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
30
0928512002
ref: 30
09285-12006
OIL SEAL
0928512002
€ 7.00
31
2560024B03
ref: 31
LEVER ASSY,GEAR SHIFT
2560024B03
€ 34.50
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
33
2552647000
ref: 33
COVER,DUST
2552647000
€ 3.50
34
0916012011
ref: 34
WASHER(12.5X20X1)
0916012011
€ 1.50
35
083313112A
ref: 35
CIRCLIP
083313112A
€ 2.00
36
2552022A00
ref: 36
ARM,GEAR SHIFT LINK
2552022A00
€ 46.50
37
2552647000
ref: 37
COVER,DUST
2552647000
€ 3.50
38
2552521E50
ref: 38
ROD,GEAR SHIFT LINK
2552521E50
€ 12.00
39
0914006025
ref: 39
NUT
0914006025
€ 2.00
40
083100006A
ref: 40
NUT
083100006A
€ 2.00
41
015000620A
ref: 41
BOLT
015000620A
€ 2.00
42
0821212201
ref: 42
WASHER
0821212201
€ 1.50
43
083313112A
ref: 43
CIRCLIP
083313112A
€ 2.00
44
3772024B30
ref: 44
BASE ASSY,NEUTRAL SW TERMINAL
3772024B30
€ 49.00
45
021127516A
ref: 45
SCREW
021127516A
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
