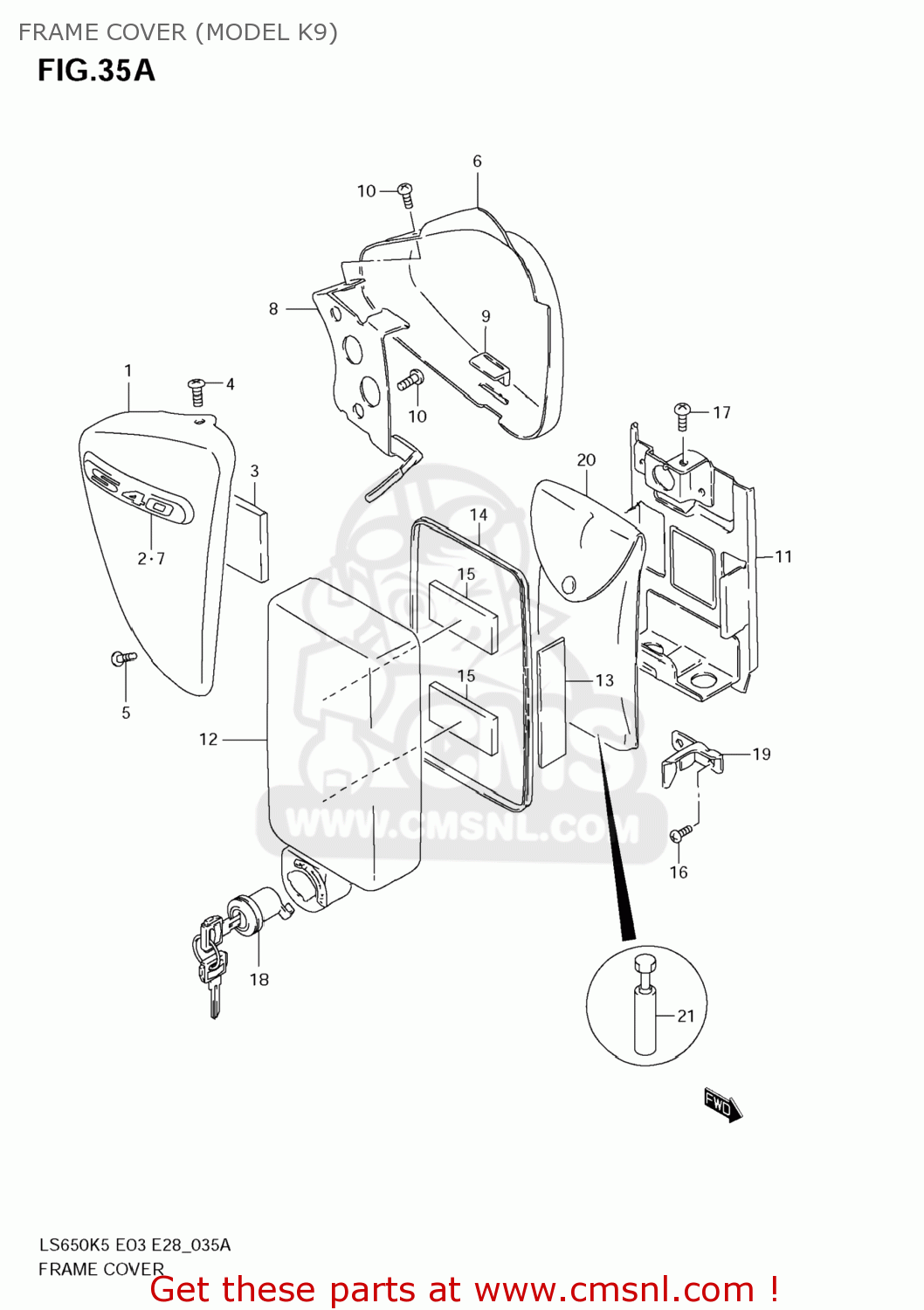

FRAME COVER (MODEL K9)

ref

part #

description

quantity

1-1

4710024CA0YAY
ref: 1-1

COVER ASSY,FRAME,R(BLACK)

€ 0.00

1-2

4710024CA0YPA
ref: 1-2

COVER ASSY,FRAME,R(WHITE)

€ 91.00

1-3

4710024CA0YRH
ref: 1-3

COVER ASSY,FRAME,R(RED)

€ 91.00

2

6813124CA0
ref: 2

EMBLEM,FRAME COVER

€ 16.50

3

1371984150
ref: 3

PAD

€ 2.50

4

021420510B
ref: 4

SCREW

€ 2.50

5

021127516B
ref: 5

SCREW

€ 2.50

6-1

4720024CA0YAY
ref: 6-1

COVER ASSY,FRAME,L(BLACK)

€ 0.00

6-2

4720024CA0YPA
ref: 6-2

COVER ASSY,FRAM

€ 91.00

6-3

4720024CA0YRH
ref: 6-3

COVER ASSY,FRAM

€ 91.00

7

6813124CA0
ref: 7

EMBLEM,FRAME COVER

€ 16.50

8

4718024B03
ref: 8

BRACKET,FRAME COVER,L

€ 13.00

9

4711745000
ref: 9

CUSHION,FRAME COVER

€ 1.50

10

021220612B
ref: 10

SCREW

€ 3.00

11

4743024B01
ref: 11

HOLDER,TOOL

€ 11.00

12

4744024B20
ref: 12

COVER,TOOL HOLDER

€ 36.00

13

3365238A10
ref: 13
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

14

4744524B00
ref: 14

MOLDING

€ 2.50

15

3365231F00
ref: 15

PROTECTOR(20X50X11)

€ 3.00

16

021420510B
ref: 16

SCREW

€ 2.50

17

021120610B
ref: 17

SCREW, CENTER SHAFT

€ 1.50

18

9570024870
ref: 18
95700-24871

LOCK SET,TOOL HOLDER

€ 45.00

19

4743424B00
ref: 19

PLATE,TOOL HOLDER LOCK

€ 2.50

20

0980021055
ref: 20

TOOL ASSY

€ 6.00

21

9622024B00
ref: 21

GAUGE ASSY,TENSION

€ 21.50
