OIL PUMP

LS650 BOULEVARD S40 2005 (K5) USA (E03)

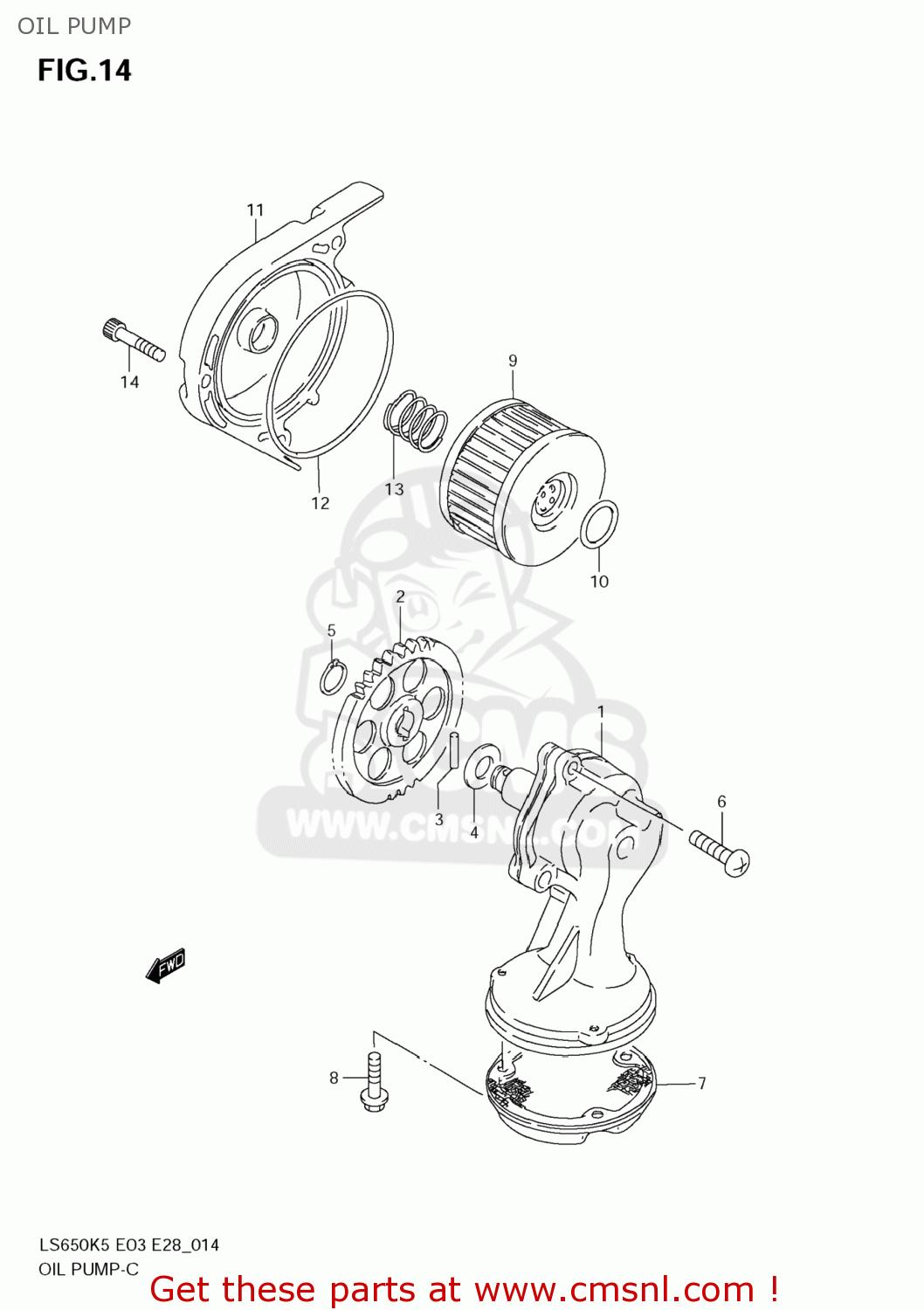

Oil pump diagram LS650 BOULEVARD S40 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1640024B00
ref: 1

PUMP ASSY,ENGINE OIL

€ 150.00

1633124B00
ref: 2

GEAR,ENG OIL PUMP DRIVEN

€ 43.00

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

0833131106
ref: 5
08331-3110A

CIRCLIP,10MM

€ 2.00

021120625B
ref: 6

SCREW

€ 1.50

1652024B00
ref: 7

STRAINER,ENGINE OIL

€ 10.00

015800512A
ref: 8

BOLT

€ 2.00

1651037450
ref: 9

FILTER ASSY,ENGINE OIL

€ 7.50

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

1651224B00
ref: 11

CAP,OIL FILTER

€ 48.50

0928072001
ref: 12

O RING(D:2.4,ID:73)

€ 5.00

0944021006
ref: 13

SPRING

€ 2.50

0910606090
ref: 14

BOLT(6X25)

€ 2.50
