STARTING MOTOR

LS650 BOULEVARD S40 2005 (K5) USA (E03)

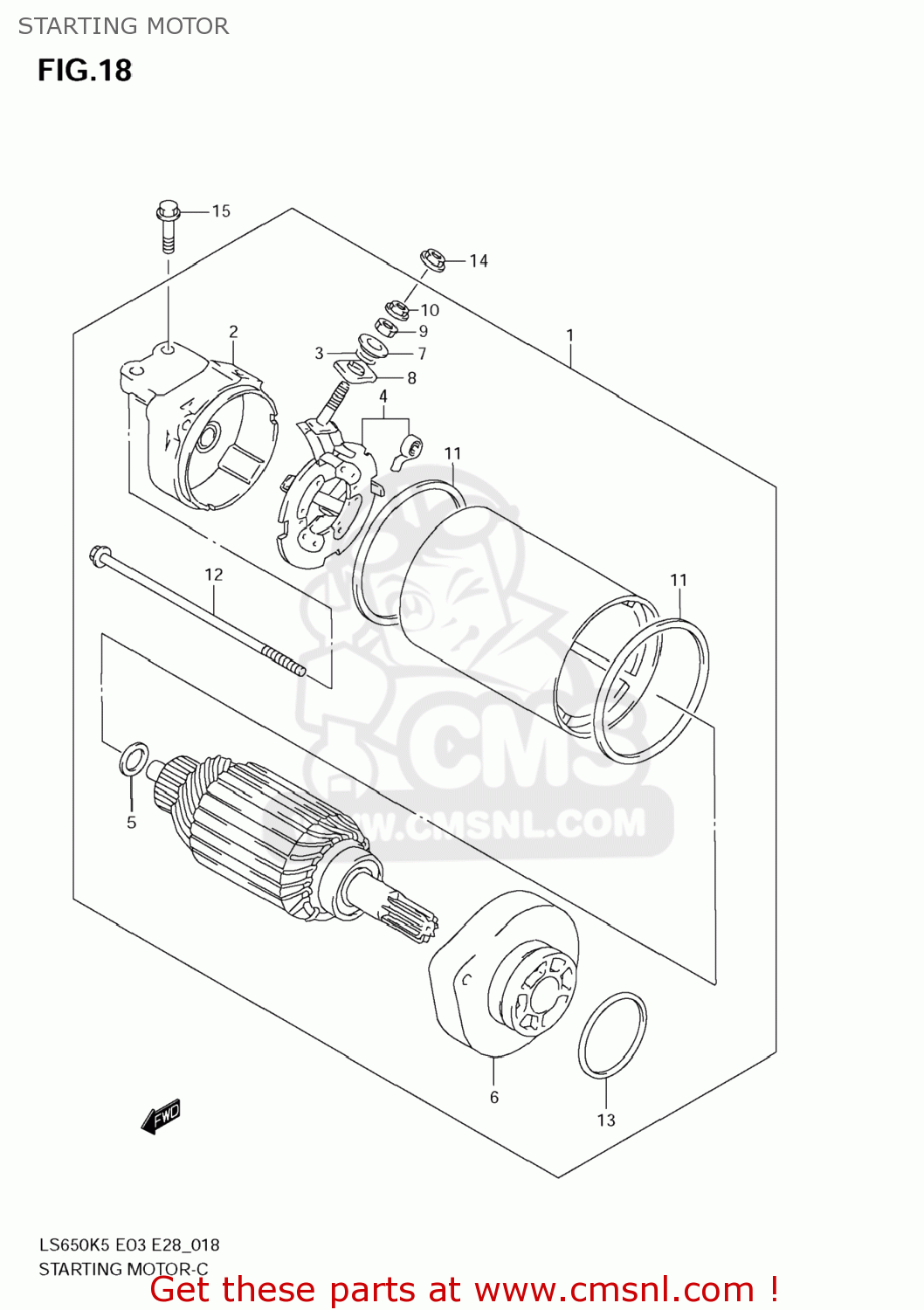

Starting motor diagram LS650 BOULEVARD S40 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110007F00
ref: 1

MOTOR ASSY,STARTING

€ 620.00

3117007F00
ref: 2

FRAME ASSY

€ 69.50

3114338300
ref: 3

O RING

€ 3.50

3113245C00
ref: 4

HOLDER SET,BRUSH

€ 46.00

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

3115044B00
ref: 6

BRACKET SET

€ 98.50

3117238300
ref: 7

BUSHING

€ 4.00

3117388C00
ref: 8

BUSHING

€ 6.00

0831000067
ref: 9

NUT

€ 2.50

083613506A
ref: 10

NUT

€ 2.00

3126444110
ref: 11

O RING

€ 8.00

3128124B10
ref: 12

BOLT

€ 5.00

0928035005A
ref: 13

O-RING (D:2.1 ID:34.7)

€ 9.50

083613506A
ref: 14

NUT

€ 2.00

0910306223
ref: 15

BOLT(6X20)

€ 2.50

STARTING MOTOR

all assemblies
