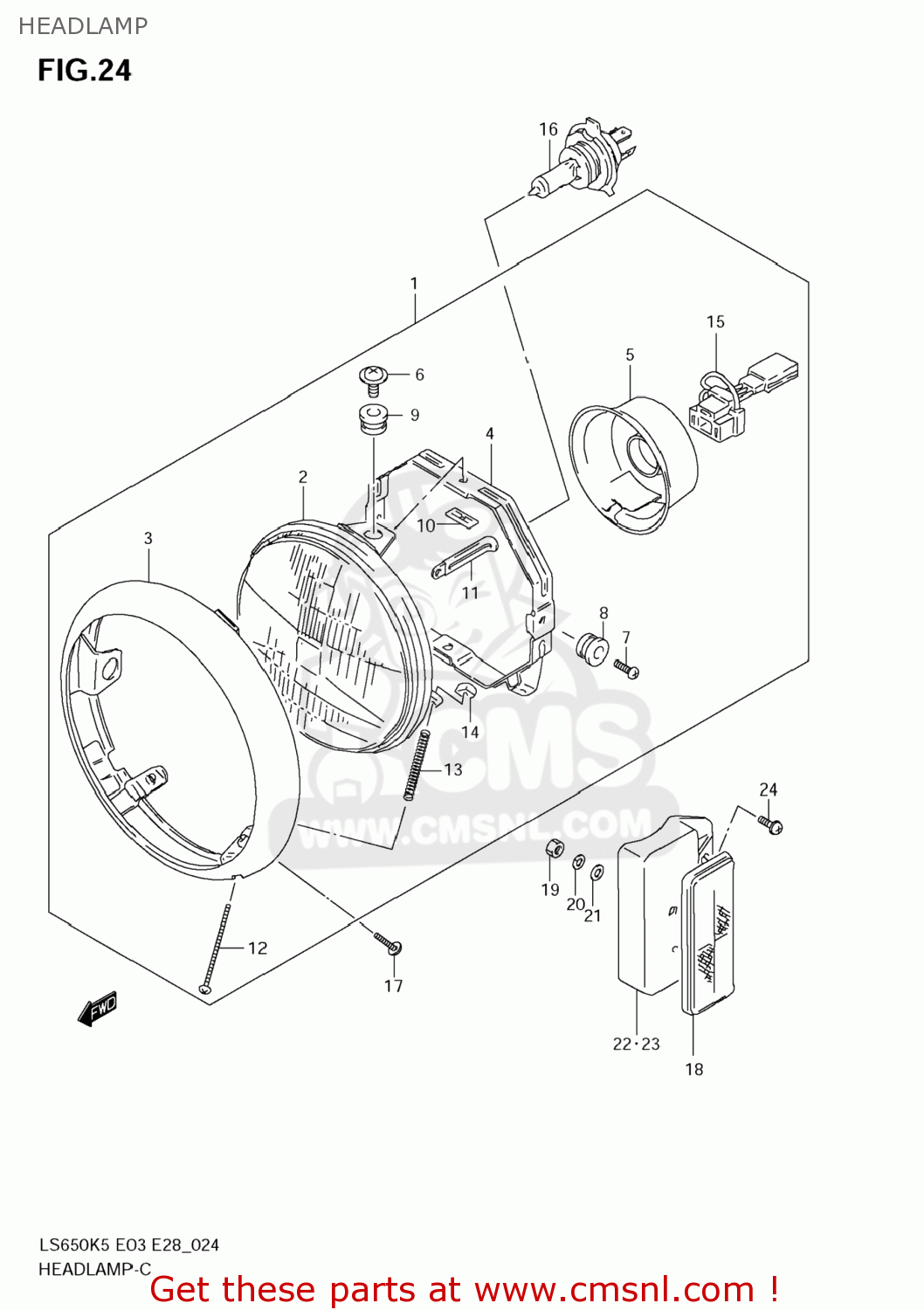

HEADLAMP

ref

part #

description

quantity

1

3510038A61999
ref: 1

HEADLAMP ASSY

€ 236.00

2

3512138A60
ref: 2

UNIT,LAMP

€ 114.00

3

3511138A60
ref: 3

RIM

€ 24.00

4

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

5

3517313E10
ref: 5

COVER

€ 12.50

6

3513638A60
ref: 6

SCREW

€ 3.50

7

3513638A00
ref: 7

SCREW,MOUNTING

€ 2.50

8

3513945230
ref: 8

CUSHION

€ 1.50

9

3513938A60
ref: 9

CUSHION

€ 2.50

10

3515538A60
ref: 10

NUT

€ 3.50

11

0940406432
ref: 11

CLAMP(L:65)

€ 2.50

12

3515138A00
ref: 12

SCREW,ADJUSTING(4X50)

€ 2.50

13

3515431300
ref: 13

SPRING

€ 2.00

14

3515245600
ref: 14

NUT,HEADLAMP ADJUST

€ 3.00

15

3685338A00
ref: 15

SOCKET

€ 10.00

16

0947112060
ref: 16

BULB(12V60/55W,H4)

€ 8.00

17

0214205127
ref: 17

SCREW

€ 1.50

18

3595043431
ref: 18

REFLEX REFLECTOR,FR SIDE

€ 12.00

19

083100005B
ref: 19
08310-0005A

NUT

€ 2.50

20

083210105B
ref: 20

WASHER,LOCK

€ 3.00

21

0916005037
ref: 21

WASHER(5.5X16X1.2)

€ 1.50

22

3595624B00
ref: 22

BRACKET,FR SIDE RR,R

€ 0.00

23

3595724B00
ref: 23

BRACKET,FR SIDE RR,L

€ 0.00

24

0913605026
ref: 24

SCREW(5X12)

€ 2.00

all assemblies
