SPEEDOMETER (MODEL K9 E28)

LS650 BOULEVARD S40 2005 (K5) USA (E03)

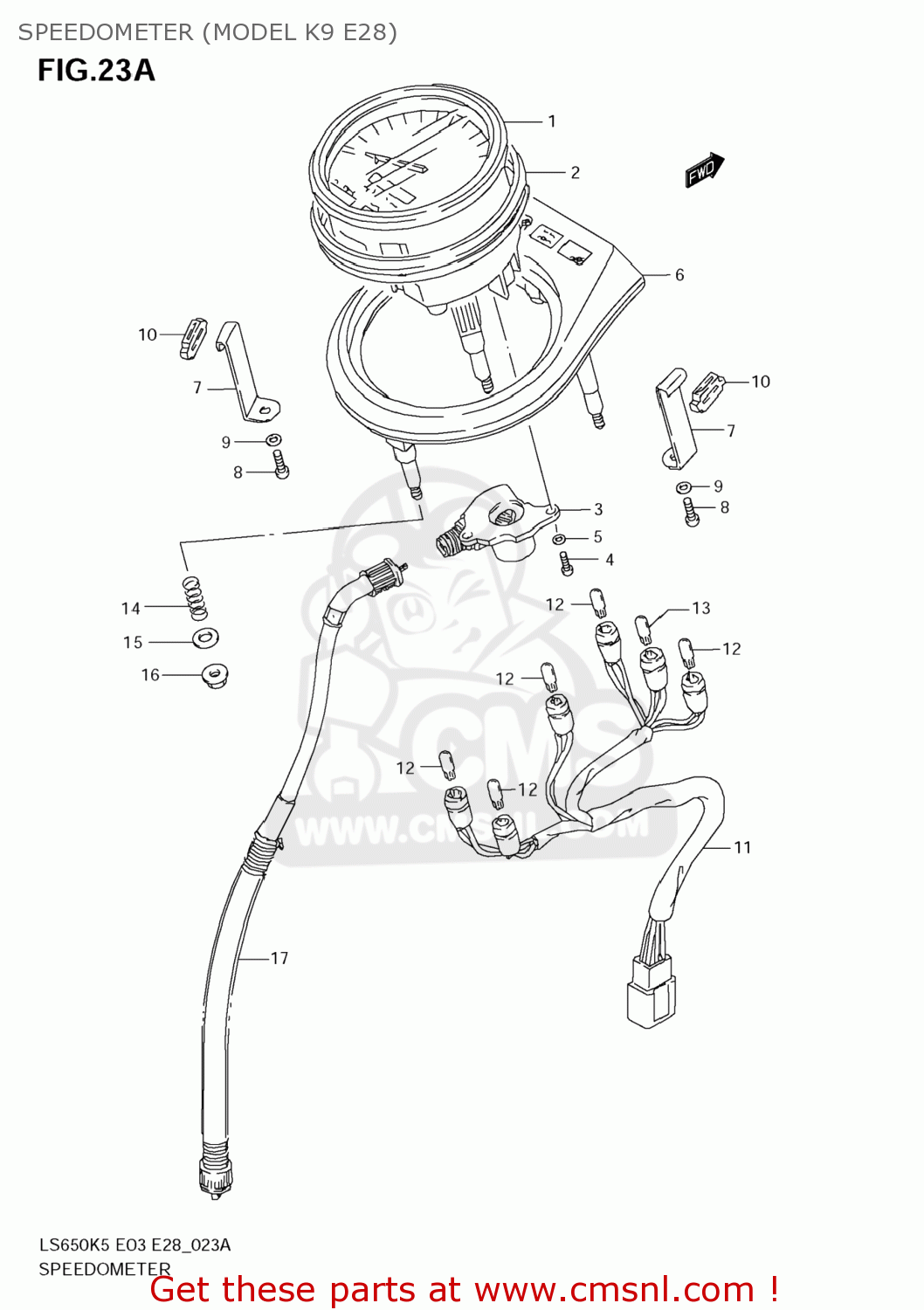

Speedometer (model k9 e28) diagram LS650 BOULEVARD S40 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

3411024C31
ref: 1

SPEEDOMETER(KILO)

€ 0.00

3428824B80
ref: 2

CUSHION,METER

€ 12.50

3413119B00
ref: 3

BOX,GEAR

€ 134.00

0211204087
ref: 4

SCREW

€ 1.50

083210104A
ref: 5

WASHER,LOCK

€ 2.00

3415124B51
ref: 6

HOOD,METER

€ 95.50

3411124B80
ref: 7

BRACKET,METER

€ 14.00

0211204087
ref: 8

SCREW

€ 1.50

083210104A
ref: 9

WASHER,LOCK

€ 2.00

3418924B80
ref: 10

CUSHION

€ 4.50

3417024B20
ref: 11

SOCKET,METER

€ 61.00

0947112103
ref: 12

BULB(12V3W,T6.5)

€ 2.50

0947112108
ref: 13

BULB(12V1.7W,T6.5)

€ 2.00

0944011022
ref: 14

SPRING

€ 2.00

0916005048
ref: 15

WASHER(5.5X14X1.2)

€ 2.00

083611505B
ref: 16

NUT

€ 2.50

3491024B00
ref: 17

CABLE ASSY,SPEEDOMETER

€ 80.00
