ALTERNATOR

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

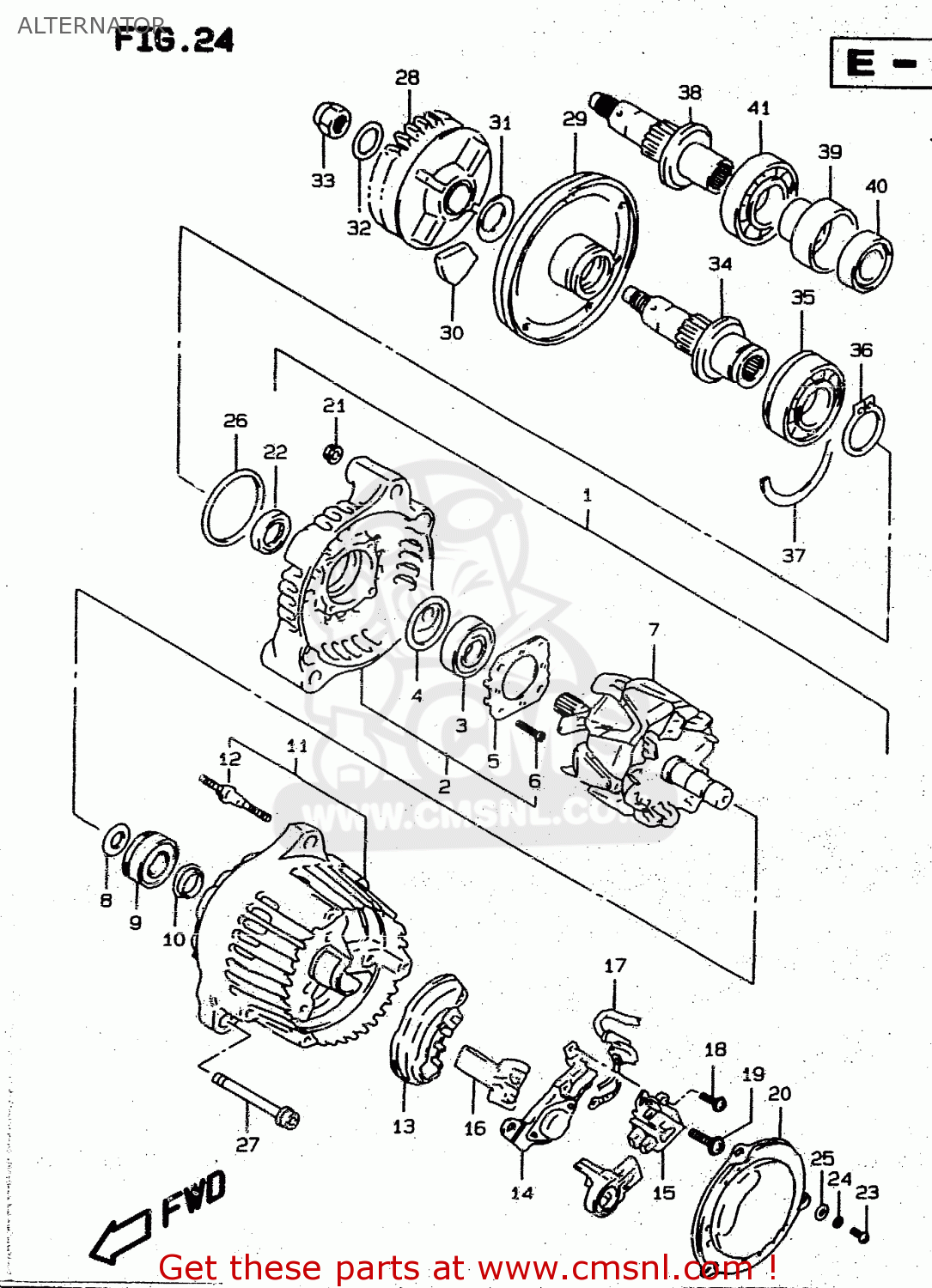

Alternator diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

ALTERNATOR RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
ALTERNATOR RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
ALTERNATOR RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3140017E20
ref: 1-1
MODEL R
ALTERNATOR ASSEMBLY
€ 676.00
1-2
3140017E30
ref: 1-2
MODEL S/T/V/W
ALTERNATOR ASSY
€ 1,119.50
2
3158017E00
ref: 2
FRAME,DRIVE END
€ 178.00
3
3161206B00
ref: 3
BEARING
3161206B00
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
3161348B00
€ 5.50
5
3158585251
ref: 5
RETAINER,BEARING
€ 9.50
6
3158617E00
ref: 6
SCREW,BEARING RETAINER
€ 2.50
7-1
3171017E20
ref: 7-1
MODEL R
ROTOR ASSEMBLY
3171017E20
€ 401.00
7-2
3171017E30
ref: 7-2
MODEL S/T/V/W
ROTOR ASSEMBLY
3171017E30
€ 316.00
8
3161382610
ref: 8
COVER,BEARING
3161382610
€ 3.50
9
3161248B00
ref: 9
BEARING
3161248B00
€ 42.50
10
3161327A10
ref: 10
COVER(2)
3161327A10
€ 5.50
11
3161117E00
ref: 11
FRAME,END
3161117E00
€ 182.50
12
3158785250
ref: 12
STUD BOLT
€ 9.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
3162127A00
€ 225.50
14
3250027A00
ref: 14
REGULATOR
3250027A00
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
3165648B00
€ 55.50
16
3168717E00
ref: 16
COVER,RECTIFIER
3168717E00
€ 4.50
17
3148017E00
ref: 17
WIRE,LEAD
€ 27.50
18
0211204063
ref: 18
SCREW 4X6
0211204063
€ 2.00
19
3168827A00
ref: 19
SCREW
3168827A00
€ 2.50
20
3161417E00
ref: 20
COVER
€ 31.50
21
0831000053
ref: 21
NUT
€ 2.50
22
3178027X50
ref: 22
<-31780-48B00
SERVICE KIT(A)
3178027X50
€ 47.50
23
0211205085
ref: 23
SCREW
€ 2.00
24
0832101053
ref: 24
LOCK,WASHER
€ 3.00
25
0832201053
ref: 25
WASHER
0832201053
€ 2.50
26
3115617E00
ref: 26
O RING
3115617E00
€ 4.00
27
0712008653
ref: 27
BOLT
0712008653
€ 4.00
28
2273021E00
ref: 28
GEAR,GENERATOR DRIVEN
2273021E00
€ 163.00
29-1
2273421E00
ref: 29-1
MODEL R/S/T/V
HOUSING,GENERATOR DAMPER
2273421E00
€ 160.50
29-2
2273421E01
ref: 29-2
MODEL W
HOUSING,GENERATOR DAMPER
€ 160.50
30
2123117E10
ref: 30
DAMPER,GENERATOR
2123117E10
€ 12.00
31
0916418006
ref: 31
WASHER
0916418006
€ 3.50
32
0821112243
ref: 32
WASHER
€ 3.00
33
0915912010
ref: 33
NUT
0915912010
€ 4.00
34
2273221E00
ref: 34
MODEL R/S
SHAFT,GENERATOR DRIVE
2273221E00
€ 146.50
35
0926225110
ref: 35
MODEL R/S
BEARING(25X52X15)
0926225110
€ 23.50
36
0833131256
ref: 36
MODEL R/S
CIRCLIP
0833131256
€ 2.00
37
0939052003
ref: 37
C RING
0939052003
€ 2.00
38
2273246E00
ref: 38
MODEL T/V/W
SHAFT,GENERATOR DRIVE
2273246E00
€ 134.00
39
2273646E00
ref: 39
MODEL T/V/W
HUB,GENERATOR DRIVE
2273646E00
€ 42.50
40
2274046E00
ref: 40
MODEL T/V/W
COUPLING COMP,GENERATOR
€ 54.50
41
0926225116
ref: 41
MODEL T/V/W
BEARING(25X52X13)
0926225116
€ 36.50
