CARBURETOR (E18, E39)

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

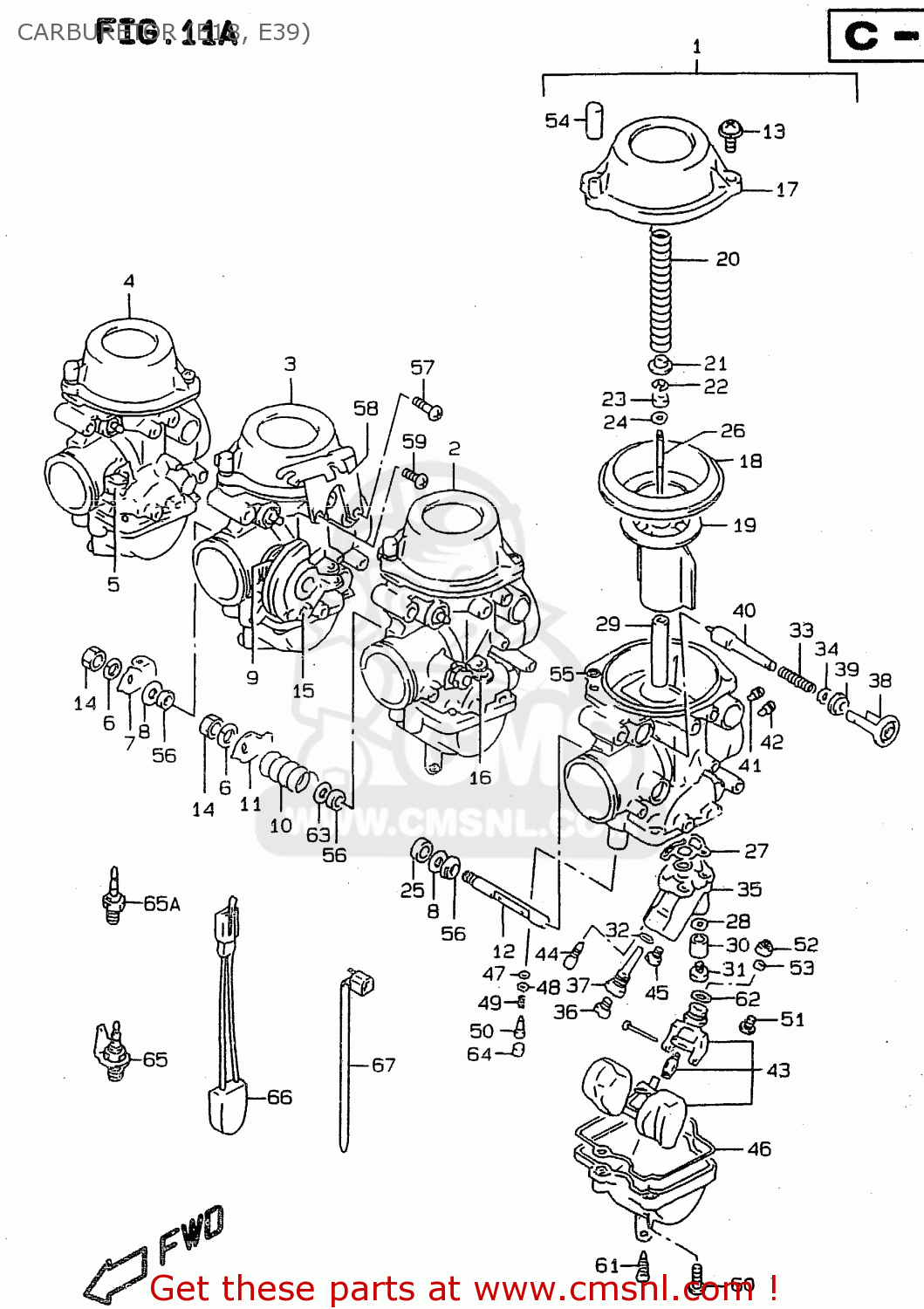

Carburetor (e18, e39) diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

CARBURETOR (E18, E39) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
CARBURETOR (E18, E39) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
CARBURETOR (E18, E39) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1320131E30
ref: 1-1
E18, MODEL R
CARBURETOR ASSY, LH
€ 328.00
1-2
1320131E31
ref: 1-2
E18, MODEL S/T/W
CARBURETOR ASSY, LH
€ 328.00
1-3
1320131E80
ref: 1-3
E39, MODEL R
CARBURETOR ASSY, LH
€ 0.00
1-4
1320131E81
ref: 1-4
E39, MODEL S/T/W
CARBURETOR ASSY, LH
€ 0.00
2-1
1320231E30
ref: 2-1
E18, MODEL R
CARBURETOR ASSY, ML
€ 0.00
2-2
1320231E31
ref: 2-2
E18, MODEL S/T/W
CARBURETOR ASSY, ML
€ 0.00
2-3
1320231E80
ref: 2-3
E39, MODEL R
CARBURETOR ASSY, ML
€ 0.00
2-4
1320231E81
ref: 2-4
E39, MODEL S/T/W
CARBURETOR ASSY, ML
€ 0.00
3-1
1320331E30
ref: 3-1
E18, MODEL R
CARBURETOR ASSY, MR
€ 0.00
3-2
1320331E31
ref: 3-2
E18, MODEL S/T/W
CARBURETOR ASSY, MR
€ 0.00
3-3
1320331E80
ref: 3-3
E39, MODEL R
CARBURETOR ASSY, MR
€ 0.00
3-4
1320331E81
ref: 3-4
E39, MODEL S/T/W
CARBURETOR ASSY, MR
€ 0.00
4-1
1320431E30
ref: 4-1
E18, MODEL R
CARBURETOR ASSY, RH
€ 0.00
4-2
1320431E31
ref: 4-2
E18, MODEL S/T/W
CARBURETOR ASSY, RH
€ 0.00
4-3
1320431E80
ref: 4-3
E39, MODEL R
CARBURETOR ASSY, RH
€ 0.00
4-4
1320431E81
ref: 4-4
E39, MODEL S/T/W
CARBURETOR ASSY, RH
€ 0.00
5
1355021E30
ref: 5
RH
SHAFT,THROTTLE
€ 0.00
6
0916908012
ref: 6
ML, MR
WASHER
0916908012
€ 2.00
7
1355321E10
ref: 7
MR
LEVER,THROTTLE
€ 0.00
8
1355747070
ref: 8
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
9
1357331E10
ref: 9
MR
SPRING
€ 0.00
10
1357331E00
ref: 10
ML
SPRING
€ 0.00
11
1355021E10
ref: 11
ML
SHAFT,THROTTLE
€ 0.00
12
1355021E00
ref: 12
LH
SHAFT,THROTTLE
1355021E00
€ 37.00
13
0211275163
ref: 13
SCREW
0211275163
€ 2.50
14
0831000087
ref: 14
ML, MR
NUT
0831000087
€ 2.00
15
1355021E20
ref: 15
MR
SHAFT,THROTTLE
€ 76.00
16
1355321E00
ref: 16
ML
LEVER,THROTTLE
€ 0.00
17-1
1350226D80
ref: 17-1
E18
COVER,DIAPHRAGM
€ 30.00
17-2
1350231E00
ref: 17-2
E39
COVER, DIAPHRAGM
€ 0.00
18
1350717C01
ref: 18
DIAPHRAGM
1350717C01
€ 24.50
19
1350118E00
ref: 19
VALVE,PISTON
1350118E00
€ 69.00
20
1341731E00
ref: 20
SPRING
1341731E00
€ 8.50
21
1338242A00
ref: 21
RING
1338242A00
€ 3.50
22
1339440D20
ref: 22
E RING
1339440D20
€ 4.50
23
1338747010
ref: 23
RING
1338747010
€ 7.50
24
1338244030
ref: 24
WASHER
1338244030
€ 3.50
25
1357432C00
ref: 25
LH, RH
RING
€ 0.00
26
1338331E30
ref: 26
NEEDLE, JET (5DFT 12-3)
€ 12.50
27
1325133C00
ref: 27
O RING
1325133C00
€ 10.00
28
1333205A10
ref: 28
GASKET (NAS)
1333205A10
€ 3.50
29
0949400810
ref: 29
JET,NEEDLE(O-9)
0949400810
€ 30.00
30
1333121E40
ref: 30
RING
1333121E40
€ 4.50
31
1360206C20
ref: 31
SCREW
€ 4.00
32
1329433C00
ref: 32
O RING
1329433C00
€ 5.50
33
1341726D00
ref: 33
SPRING
1341726D00
€ 5.50
34
1343247090
ref: 34
WASHER
1343247090
€ 2.50
35
1322021E00
ref: 35
JET BLOCK ASSEMBLY
1322021E00
€ 38.50
36-1
0949121020
ref: 36-1
E18
JET,MAIN 107,5
0949121020
€ 11.00
36-2
0949121023
ref: 36-2
E39
JET,MAIN(105)
0949121023
€ 7.00
37
1338521E00
ref: 37
HOLDER,JET
1338521E00
€ 25.00
38
1341817C10
ref: 38
HOLDER,GUIDE
1341817C10
€ 14.00
39
1341817C00
ref: 39
CAP,STARTER
1341817C00
€ 5.00
40
1341105320
ref: 40
PLUNGER ASSY
1341105320
€ 18.00
41-1
0949360004
ref: 41-1
LH, RH
JET,AIR(0.6)
0949360004
€ 11.00
41-2
0949370009
ref: 41-2
ML, MR
JET,MAIN AIR(0.7)
0949370009
€ 13.00
42
0949226002
ref: 42
<-09493-26008
JET,POWER(130)
0949226002
€ 16.50
43
1325021E00
ref: 43
FLOAT/NEEDLE VALVE ASSEMBLY
€ 96.00
44
0949212008
ref: 44
JET,PILOT(12.5)
0949212008
€ 14.00
45
0949152003
ref: 45
<-09491-52004
JET,MAIN(52.5)
0949152003
€ 9.00
46
1325833C00
ref: 46
SEAL
1325833C00
€ 14.50
47
1329529900
ref: 47
O RING,PILOT AIR SCREW
1329529900
€ 4.00
48
1329129900
ref: 48
WASHER
1329129900
€ 2.00
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50
1327947070
ref: 50
SCREW,PILOT
1327947070
€ 11.50
51
1360205A10
ref: 51
SCREW
1360205A10
€ 4.00
52
1337684110
ref: 52
FILTER
€ 6.50
53
1333106C20
ref: 53
RING
1333106C20
€ 5.50
54
1350817C00
ref: 54
LH, ML, RH
CAP
1350817C00
€ 4.50
55
1325106C10
ref: 55
O RING
1325106C10
€ 5.00
56
1365151010
ref: 56
LH, RH:1, ML, MR:2
SEAL
1365151010
€ 4.00
57
1360105148
ref: 57
MR
SCREW(5X14)
1360105148
€ 3.00
58
1362731E00
ref: 58
MR
BRACKET
€ 11.50
59
0212205103
ref: 59
MR
SCREW
0212205103
€ 1.00
60
0211205127
ref: 60
SCREW
0211205127
€ 2.50
61
1324713A00
ref: 61
SCREW,DRAIN
1324713A00
€ 5.50
62
1337444080
ref: 62
O-RING,NEEDLE VALVE
1337444080
€ 6.00
63
1355707D00
ref: 63
ML
RING
€ 5.50
64
1328105A00
ref: 64
PLUG
1328105A00
€ 3.50
65
1365025E01
ref: 65
MODEL S/T/W, W/TERMI
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
65A
1365125E01
ref: 65A
MODEL S/T/W, N/TERMI
HEATER, CARB.
€ 35.00
66
1365525E00
ref: 66
MODEL S/T/W
THERMO SWITCH,CARB HEATER
1365525E00
€ 36.00
67
0940714403
ref: 67
MODEL S/T/W
CLAMP(L:125)
0940714403
€ 2.50
