FUEL TANK (MODEL V)

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

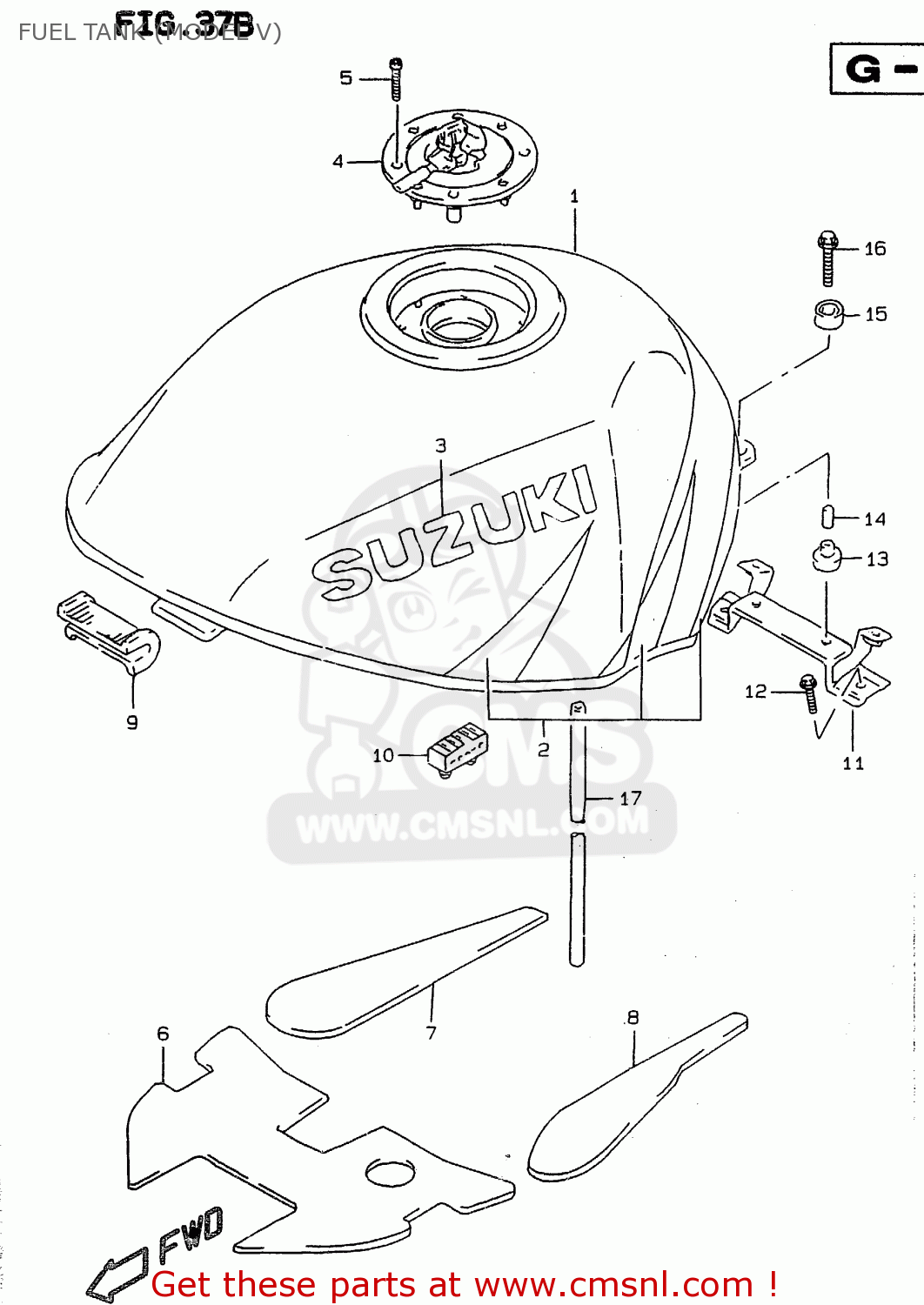

Fuel tank (model v) diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

FUEL TANK (MODEL V) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

FUEL TANK (MODEL V) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4410031E7020F
ref: 1-1
FOR 7AY

TANK ASSEMBLY,FUEL

€ 1,022.50

1-2

4410031E700WP
ref: 1-2
FOR G4H

TANK ASSY,FUEL(GREEN)

€ 547.00

2

6811031E30C03
ref: 2

TAPE SET,FUEL TANK

€ 69.00

3

6811101D000FP
ref: 3

EMBLEM,FUEL TANK

€ 11.50

4

4420101832
ref: 4

CAP SET,FUEL TANK

€ 204.00

5

0910605017
ref: 5

BOLT(5X20)

€ 3.00

6

4419121E00
ref: 6

SHIELD,FUEL TANK HEAT NO.1

€ 144.00

7

4419221E00
ref: 7

SHIELD,FUEL TANK HEAT NO.2

€ 31.00

8

4419321E00
ref: 8

SHIELD,FUEL TANK HEAT NO.3

€ 31.00

9

4451132C01
ref: 9

CUSHION,FUEL TANK FR

€ 15.50

10

4514931300
ref: 10

CUSHION,SEAT(40X20X15)

€ 2.00

11

4453021E02
ref: 11

BRACKET,FUEL TANK RR

€ 35.00

12

0155008163
ref: 12

BOLT

€ 3.00

13

0932010038
ref: 13

CUSHION

€ 4.00

14

0918006271
ref: 14

SPACER(6.5X9X18)

€ 2.00

15

0932014017
ref: 15

CUSHION

€ 3.00

16

0155006303
ref: 16

BOLT

€ 2.50

17

0935270103600
ref: 17

HOSE(7X10.2X600)

€ 8.00
